Description

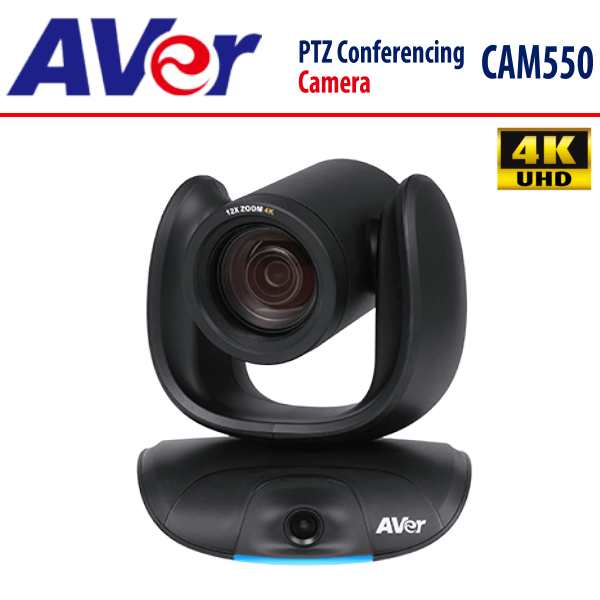

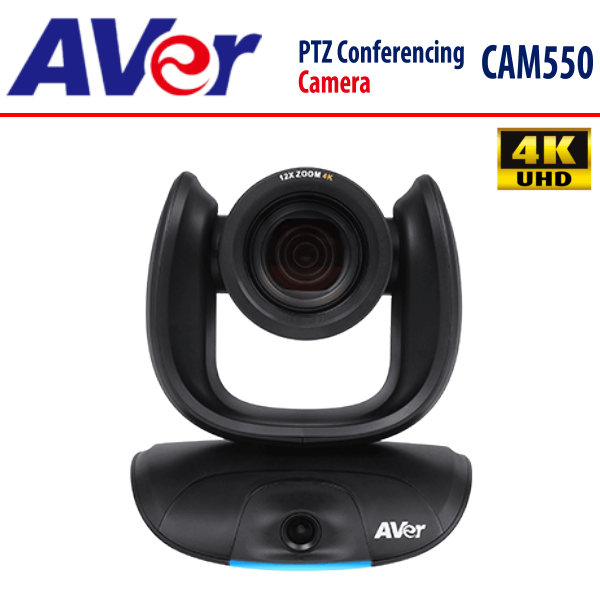

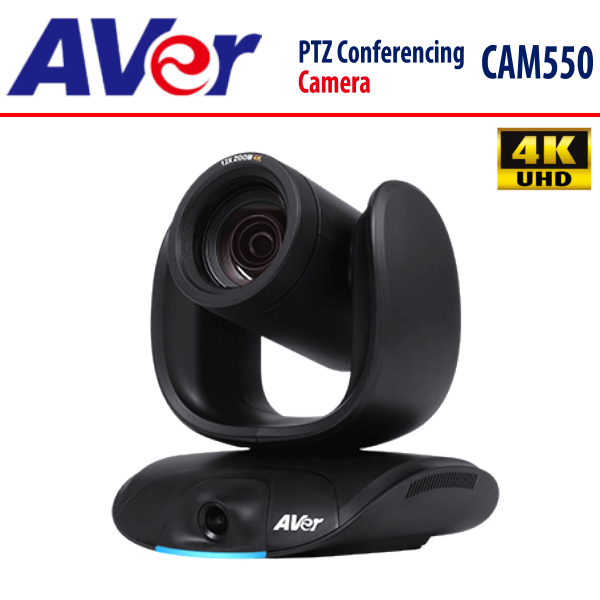

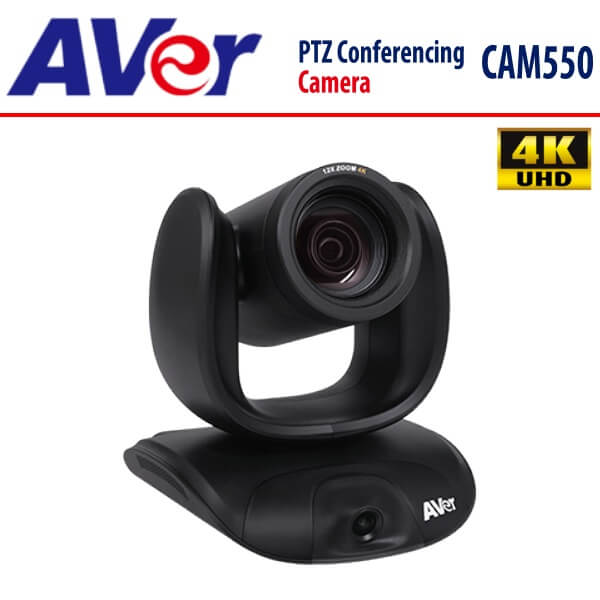

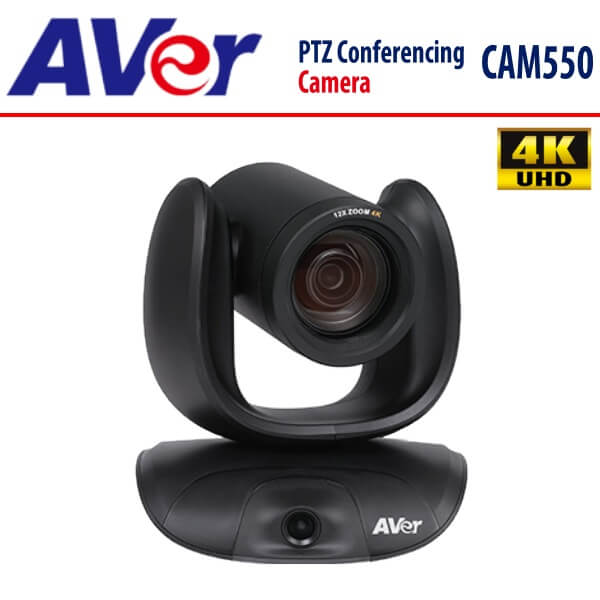

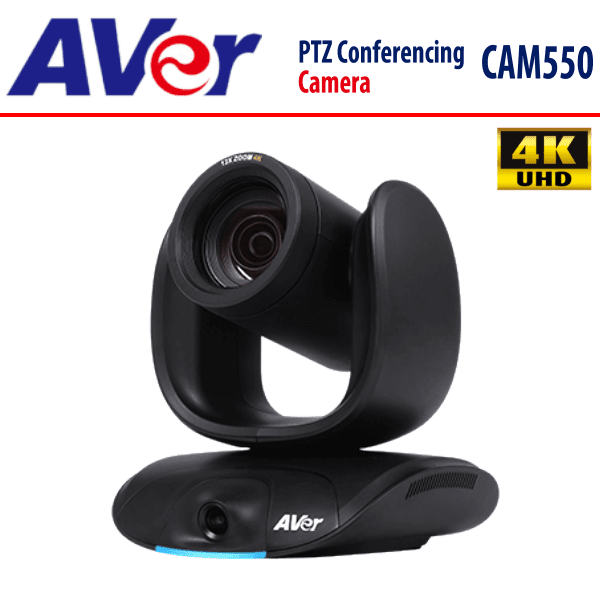

Aver CAM550 4K Video Conferencing Camera Dubai
The Aver CAM550 Dubai is a high quality, dual lens PTZ camera that has been designed to offer an amazing video conferencing experience to its users. It boasts of a 4K 24X zoom PTZ camera with a 95°FOV AI lens that offers a full-scene coverage in clear detail.
With an AI lens for automated PTZ functionality, the Aver CAM550 Dubai delivers a full view of meeting attendees and detects newcomers. It is fitted with a Smart Gallery feature that displays crystal clear views of every conference participant on the remote side. In order to enjoy a fluent and secure meeting experience, you can activate the gesture control operation feature. Built-in AI gesture recognition eliminates touchpoints. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.
The Aver CAM550 Dubai comes with two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room. Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.
aver cam550 4k video conferencing camera sharjah
Preset Link is an all new function of the included PTZApp 2 that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The Aver CAM550 Dubai automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.
Aver CAM550 Dubai is widely compatible with major leading professional platforms including Zoom, Microsoft Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel Unite, Fuze, Adobe Connect, CyberLink U Meeting, Cisco WebEx GoToMeeting, LiveOn, Microsoft Lync, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, and XSplit.
Key Features:
- Dual Lens Offers Wide-Angle Clarity
- Aver CAM550 Dubai is a 4K 24X zoom PTZ camera with a 95°FOV AI lens. It is equipped with a smart PIP function to simultaneously view the speaker and the panoramic view of the room
- HDMI Enables Dual Display and 3-Way Output
- One HDMI connection enables a 2nd display for virtual meetings
- Simultaneously connect HDMI, USB, and IP streaming broadcasting using the Aver CAM550 Dubai.
- Gesture Control Eliminates Touchpoints
- Aver CAM550 Dubai is designed with a useful Gesture control which generally reduces touching and interference.
- Smart Gallery Upgrades Meetings
- Aver CAM550 Dubai is equipped with a Smart Gallery feature which offers AI-triggered viewing-angle adjustment that creates incredible visibility
- Dynamic Framing Enhances Meeting Efficiency
- Quickly and precisely focus on participants and newcomers
- Enterprise-Grade Imaging Delivers Adaptability
- Adapt to any lighting conditions, thanks to a Sony 4K True WDR sensor which is embedded in the Aver CAM550 Dubai.
aver cam550 4k video conferencing camera dubai
Technical Specifications
Dual Camera
PTZ optical zoom lens
- Image sensor : Sony 4K EXMOR, crystal clear in any lighting
- Frame rates : (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- 24X Zoom : 12X optical; 2X digital zoom
- Wide field of view : DFOV 85°; HFOV 76°; VFOV 46°
- Lens focal length : 3.9mm (wide) ~ 47.3mm (tele)
- Lens F# : 1.8 (wide) ~ 2.8 (tele)
- AE, white balance: auto, manual override via PTZApp 2
- Minimum focus distance : 1.5m
- Motorized Pan & tilt : Pan : ±170°;Tilt : +90° (up) -30° (down)
- Preset number : 10 via IR remote, 128 via RS232
Secondary fixed lens (AI lens)
- Image sensor : Sony 4K EXMOR
- Frame rates and resolution set according to PTZ lens settings
- Wide field of view : DFOV 95°; HFOV 78°; VFOV 50°
aver cam550 ptz conferencing camera uae
Innovative features
- Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
- Preset framing tracks both preset area and speaker*
- Simultaneous 3-way output: USB, HDMI and IP connections
- Gesture control provides intuitive camera controls
- HDMI Picture in Picture (PIP) function
- Smart gallery** function offers great visibility for individual participant in the meeting room
- Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB.)
- Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.

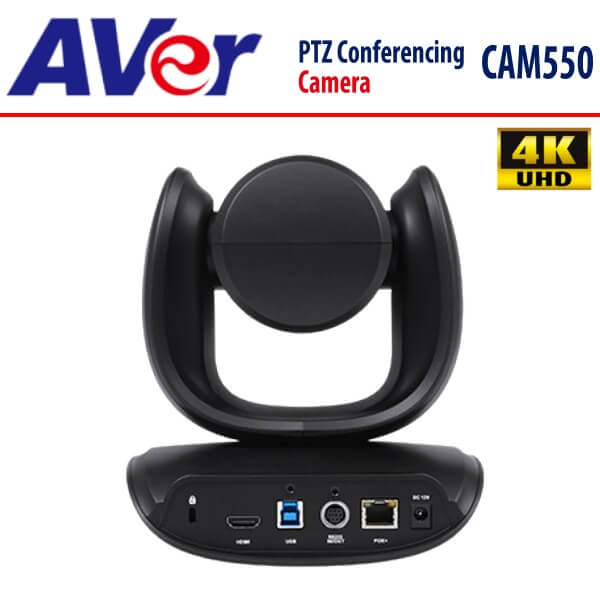

Connectivity
- USB type-B 3.1 connector, backward compatible with USB 2.0
- 12V/2A DC jack power adapter
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- IP (RJ45)
- HDMI
- HDMI & PoE
- HDMI 1.3 : 1080p 30fps/ 60fps
- PoE+ : 802.3at
Video Format
- YUV, YUY2, MJPEG
- Network video compression format : H.264, H.265
- Network protocol : RTSP, RTMP
aver cam550 ptz conferencing camera sharjah
USB
- 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB video), UVC1.5
Control
- IR remote control
- VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
- Remote side : VISCA over IP, IP (RJ45)
- UVC plug and play
- WebUI : Browser IP access via Chrome. (Not support IE)
- OSD setting : HDMI out to TV monitor
- PTZApp 2
Power Supply
- AC 100V–240V, 50/60 Hz; Consumption : 12V, 2A
- PoE+ : 802.3 at
Free Applications for Meeting Collaboration (For Windows and Mac computers)
EZManager 2 : Camera Central Management Software
Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp 2 : Camera Settings Software
- Smart gallery/ Virtual USB streaming/ Preset Link
- View live video, participant metrics, and meeting-interval information
- Enable Skype for Business far-end control
- Upgrade firmware automatically/manually
- Control the camera
- Set parameters and adjust the camera image
- View operation status, diagnose issues
EZLive : Broadcasting Software
Multi-camera real-time streaming, annotating, image capturing, and video recording
Environment Data
- Operation temperature : 0 to 40°C
- Operation humidity: 20% to 80%
- Storage temperature : -20 to 60°C
- Storage humidity : 20% to 80%
aver cam550 ptz conferencing camera dubai
Dimensions
- Package dimensions : 253(L)*253(W)*271(H) mm
- Package weight : 4.8KG
- Camera : 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
- Remote control : 200 x 50 x 121mm/90g
Package Contents
- CAM550 unit
- Power adapter (10 ft/3 m)
- USB 3.1 type-B to type-A cable (3m)
- Remote control
- Mini DIN9 to mini DIN8 RS232 adapter cable
- HDMI cable (3 m)
- Wall mount bracket and screws
- QR code card
- Tripod screw
- Drill paper
- Optional Accessories
- Mini DIN8 to D-Sub9 cable
- Ceiling mount*
- Foldable TV mount
- USB2.0 type-B to type-A cable (5 m)
- USB 3.1 Extension Cable (10 m/20 m/30 m)
- 1-Port POE+ Injector
aver cam550 4k video conferencing camera uae
Security and Mount
- Kensington lock
- 1/4″ tripod mounting screw
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
- System Requirements
- Windows 7/10
- MacOS X 10.7 or later
- Google Chromebook version 29.0.1547.70 or higher
Hardware Specs
- 3.2 GHz Intel Core i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0
Warranty
- Camera : 3 years
- Accessories : 1 year
Compatible Applications
Zoom, MicrosoftTeams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel Unite, Fuze, Adobe Connect, CyberLink U Meeting, Cisco WebEx GoToMeeting, LiveOn, Microsoft Lync, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
