Description

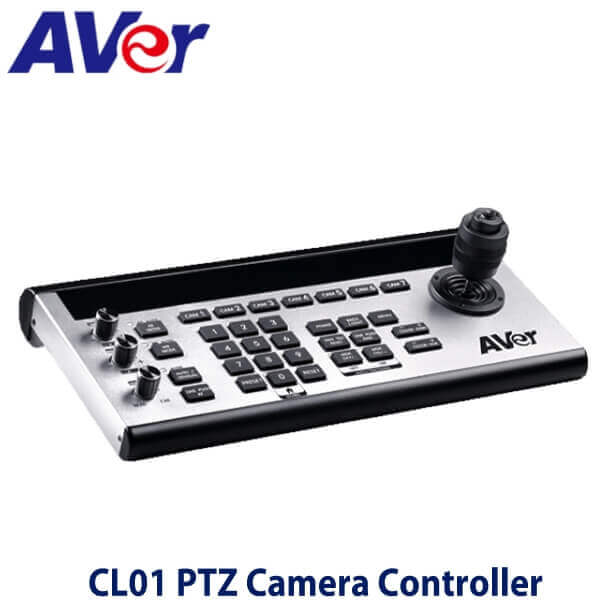

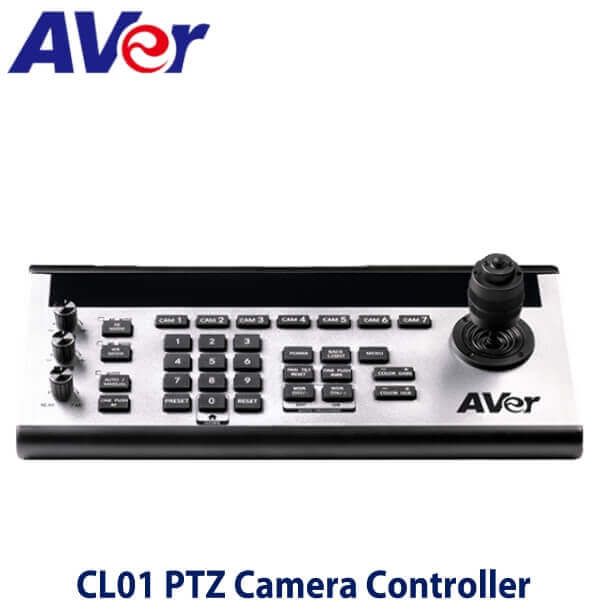

AVer CL01 PTZ camera controller Dubai

Give your video productions a touch of professionalism with the AVer CL01 camera controller, an intuitive solution for your capture and broadcast requirements. The Aver CL01 camera controller enjoys seamless compatibility with all AVer PTZ cameras as well as several other brands. The simple 14 by 7-inch compact configuration gives you the ability to control up to 7 cameras, bringing the efficiency and power of a mini studio at arm’s length.

AVer CL01 Features :

• Impressive 255 Preset Locations
  • On top of the 10 preset locations that can be achieved via the IR remote control, you can capture a wide variety of angles as well as shift the recording view in an instant, thanks to the 255 preset location onboard the AVer CL01 camera controller. This is made possible through VISCA and PELCO – D/P  via RS – 232, RS – 485, and RS – 422 functionalities which have excellent compatibility with most PTZ motorized cameras. Furthermore, the AVer SmartShoot technology offers you maximum camera control to enable seamless transitions between the preset areas. This gives you the ability to run multi-camera productions linking into the same AVer CL01, thereby saving you time and effort while enjoying unparalleled shooting dynamics.
• Pan, Tilt & Zoom
  • The onboard PTZ motorized camera controller is designed with a joystick which enables you to enjoy functions such as adjusting focus, panning, and tilting speedily with absolutely no sound at all. This ensures that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the AVer CL01 camera controller enables the camera to move faster during zooming out to achieve quick framing, then move slower when zooming in. This advanced feature of the AVer CL01 camera controller makes operation of any PTZ motorized camera a breeze for you.
• Compatibility
  • The AVer CL01 camera controller works perfectly with all AVer Auto Tracking and PTZ motorized cameras and many other brands. This feature makes the advanced camera controller suitable for use in government agencies, houses of worship, business conferences, and even in learning spaces.
• Enhanced Portability
  • The AVer CL01 camera controller is designed to weigh so light, making it easy for you to carry it around. Its 14 by 7-inch size makes storage easier due to its compactness, giving you an amazing experience and ease of use.
• Easy operation
  • The smart Aver CL01 camera controller comes with three rotational buttons, blacklist keys, and a joystick which you can simply twist or click to adjust settings such as sound volume or colour balance for your images on your output system. This does not require you to have any technical skills at all, turning you into an expert within no time.

Why the AVer CL01?

• It comes with an OLED display screen
• Onboards a Pan/Tilt/Zoom control joystick
• Swiftly manage up to 7 cameras with the option of shortcuts
• 3 rotation knobs to use when changing brightness and focus

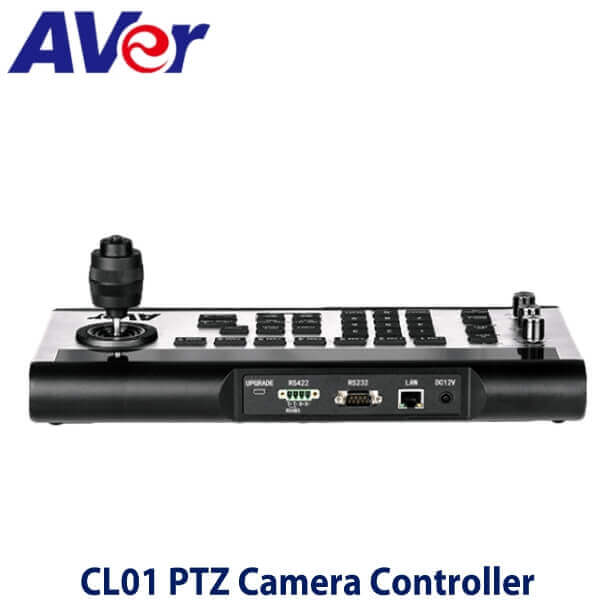

• Multiple control interfaces with RS485, RS422, RS232, IP, and Micro USB, thus easy to upgrade firmware
• Control protocols of VISCA, SONY VISCA , Pelco-D/P, UDP, IP (VISCA over IP)

AVer CL01 Specifications :

• I/O Interface
  • Communication: RS-485, RS-422, RS-232, IP, Micro USB
  • Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
• User Interface
  • Display : OLED display screen
  • Camera Shortcut Channel: 7
  • Rotation Button : 3
  • Joystick : 1
• Camera Control
  • IP Address : Default: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from Cam 1 to Cam 7)
  • UDP Port : 08090
  • Cam ID : 1 to 7 and more (255* max.)
  • Control Protocol : VISCA, SONY VISCA , Pelco D/P, UDP, IP (VISCA over IP)
• System
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Dimensions: 173 mm (W) x 99 mm (H) x 350 mm (D)
  • Net Weight: 2.5 kg
  • Power Source: DC 12V/2A
  • AC 100 – 240V
  • Power Consumption: 24 W
  • Application: Indoor

What’s in the Box :

• User manual
• 4 – pin RS485 terminal
• Power adapter
