Description

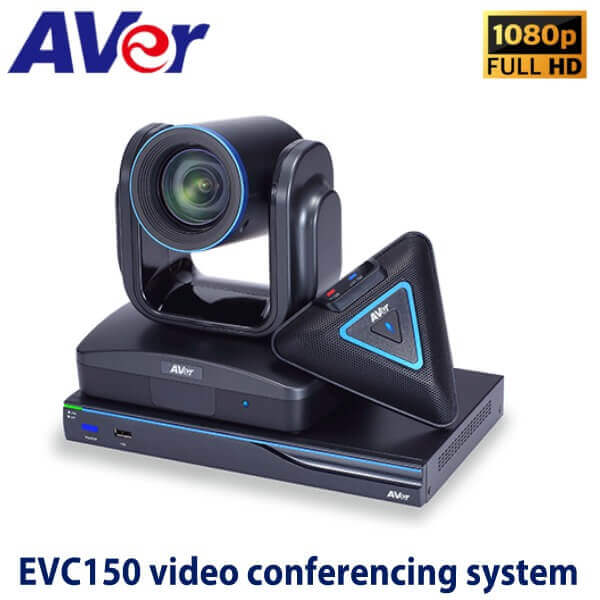

Aver evc150 full HD video conferencing system Dubai
The AVer EVC150 Full HD Video Conferencing System has a cutting edge lense that delivers 4K output and an Ultra High Definition resolution of 1080p at 30 frames per second. Built into the AVer EVC150 Full HD Video Conferencing System is the futuristic True Optical 18X Zoom wide-angle camera, one of the most advanced at the moment, enabling you to push focal length to full limits without compromising on image clarity. AVer’s Artificial Intelligence algorithm enables the AVer EVC150 Full HD Video Conferencing System to detect, focus on, and capture human and moving objects in the conference room.
AVer EVC150 Full HD Video Conferencing System Features :
- 4K RESOLUTION
- The AVer EVC150 Full HD Video Conferencing System has a cutting edge lense that delivers 4K output and an Ultra High Definition resolution of 1080p at 30 frames per second. Thanks to the onboarded Sony sensor, the device incorporates auto white balance, auto exposure, and autofocus to offer amazing image clarity, wonderful performance, and ease of use.
- ZOOM, PAN AND TILT FLUIDLY
- Zoom, pan and tilt functions on the AVer EVC150 Full HD Video Conferencing System benefit from next-generation autofocus optical engineering, making them fluid, seamless and smooth. Built into the AVer EVC150 Full HD Video Conferencing System is the futuristic True Optical 18X Zoom wide-angle camera, one of the most advanced at the moment, enabling you to push focal length to full limits without compromising on image clarity.
- 18× ZOOM POWER
- The AVer EVC150 Full HD Video Conferencing enjoys an impressive zooming power of up to 18× (12× optical zoom power and 1.5× digital zoom power). This makes it easy for the user to perform functions like highlighting content and changing shooting angles at random, achieved even when the user is panning or tilting. Now you can boast of amazing PTZ performance with crystal clear video output minus pixilation and motion blur, even when subjects are zoomed in up close.
- ARTIFICIAL INTELLIGENCE
- AVer’s Artificial Intelligence algorithm enables the AVer EVC150 Full HD Video Conferencing System to detect, focus on, and capture human and moving objects in the conference room. It is so accurate that you are guaranteed sharp subject focus and framing, ensuring that your main targets remain tracked throughout the presentation.
- SMARTFRAME CAPTURE
- The Aver EVC150 Full HD video conferencing system’s SmartFrame technology gives an edge in that it is able to automatically frame and include every participant in the room regardless of their distance from the lens, thanks to its facial recognition algorithm. Its wide 82° field of view allows for 7 – 12 people or more in the room, and the PTZ camera provides flexible motorized ±130° pan and 90°/-25° tilt movement. This ensures a single click transition in moments when the meeting receives new participants or releases some to leave a fewer number.
- IMPRESSIVE 100 CAMERA PRESETS
- The AVer EVC150 Full HD video conferencing system allows the user to simply program its presets on the remote control ahead of time, and during meetings they can shift the camera from a wide view of the room to a close-up of an object with just the press button.
- CONNECT UP TO 4 – MICROPHONES VIA DAISY CHAIN
- The high – performing AVer EVC150 Full HD video conferencing system is equipped with an all – new microphone array and codec which carry out important functions of audio processing such as advanced noise reduction, automatic gain control and echo cancellation, producing crisp and clear sounds.
- HANDY INTEGRATION & REMOTE ACCESS TOOLS
- You can easily access your AVer EVC150 Full HD video conferencing system remotely and troubleshoot problems using the brilliant AVer’s web – based management tool known as WebTool, and advanced network technology called Wake – On – LAN(WOL), Telnet , Network Test and HELPeRTM, making the EVC150 Full HD video conferencing system suitable for integration while using LAN or the internet.
- EASE OF SETUP
- For the sake of being user friendly while enhancing experience, the AVer EVC150 Full HD video conferencing system is driver-free, which makes it a plug and play device. The device is ready to stream once perched into the PC, eliminating the need for installing drivers.
- MULTIPLE LANGUAGE USER INTERFACE
- The Aver EVC150 Full HD Video Conferencing System is built in a very user – friendly manner, supporting the use of 22 different languages including English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, and Vietnamese.
- MAXIMUM SECURITY
- The AVer EVC150 Full HD Video Conferencing System comes with password protection for system settings and remote system management. Its embedded AES(Advanced Encryption Standard) function (128 – bit) secures your contents, ensuring they are not accessed without your authorization.
- FREE SOFTWARE SUPPORT
- AVer has designed free software support which include EZMeetUp, EZDraw, VCLink,VCPlayer, ScreenShare and VCUtility to allow its users to enjoy unlimited communication.
Why the AVer EVC150 Full HD Video Conferencing System?
- Amazing richness and clarity while sharing content using its Ultra HD 4K camera
- An easy user experience by incorporating video conferencing and content sharing in one solution
- Easy wired and wireless content sharing in real-time
- Deployment made easy by its industrialized standard cables and IP connectivity of peripherals
- Maximum compatibility with popular cloud services, eliminating the need for a PC or a Mac
AVer EVC150 Full HD Video Conferencing System Specifications :
Communications | ● H.323, SIP standards, SIP TLS
● WebRTC (License Required) ● Mixed protocols between H.323, SIP, WebRTC ● Call Quality bandwidth 64Kbps ~ 8Mbps ● RJ45 network LAN (10/100/1000) ● Manual bandwidth settings ● Manual Max. bandwidth settings |

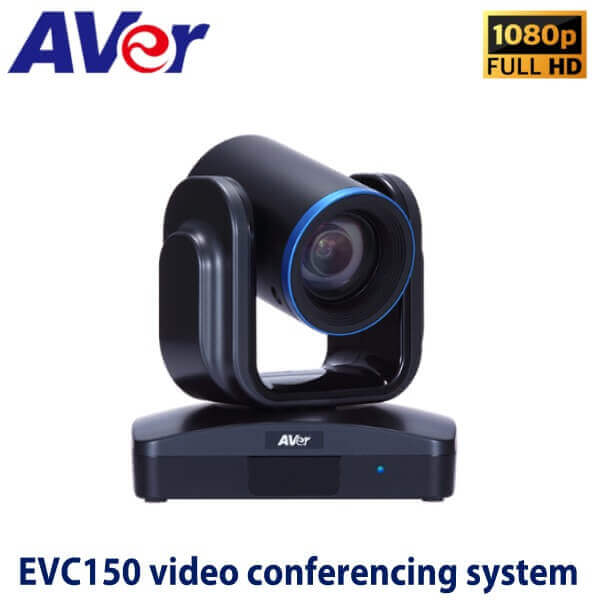

Camera | ● eCam PTZ III camera
● 2-megapixel CMOS sensor ● 18X total zoom ● ±110° pan; 25°/-25° tilt ● 72° FOV (H); 43° FOV (V); 82° FOV (diagonal) |
People video resolutions | ● HD1080p (1920 x 1080), up to 60fps
● HD720p (1280 x 720) ● 480p (848 x 480) ● 4CIF (704 x 576) ● CIF (352 x 288) ● SIF (352 x 240) ● All resolutions at 30fps |
Content Video resolutions | HDMI supported resolutions:
● 1080p (1920 x 1080) ● 720p (1280 x 720) ● D1 (720 x 480) ● SXGA (1280 x 1024) ● XGA (1024 x 768) ● SVGA (800 x 600) ● VGA (640 x 480) DVI (digital) supported resolutions: ● 1080p (1920 x 1080) ● 720p (1280 x 720) ● D1 (720 x 480) ● SXGA (1280 x 1024) ● XGA (1024 x 768) ● SVGA (800 x 600) ● VGA (640 x 480) Output resolutions: ● Up to HD1080p (1920 x 1080) at 60 fps |
Video standards | ● H.264, H.264 HP, H.264 SVC, H.263 , H.263, H.261
● H.239 dual video streams ● BFCP content sharing ● RTMP for live video streaming ● Forward Error Correction (FEC) ● Anti 30% video packet loss with FEC |
Video features | ● 3D denoise |
Video inputs | ● Main camera eCam PTZ III
● HDMI for 2nd camera ● DVI-I/VGA for presentation ● HDMI for presentation |
Video outputs | ● HDMI × 2 |
Audio Standards | ● G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD |
Audio features | ● Automatic gain control (AGC)
● Advanced noise reduction ● Acoustic echo cancellation (AEC) |
Audio inputs | ● Microphone pickup range of 6m, daisy chain up to 4
● HDMI ● Line-in (3.5 mm) |
Audio outputs | ● HDMI
● Line-out (3.5 mm) |
Other supported standards | ● H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
● RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP |
User Interface | ● Single/dual monitor layout styles
● User-friendly OSD (22 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) ● Display/edit site name |
Network | ● 10/100/1000Mbps
● NAT/firewall traversal (H.460) ● High Efficiency Lost Packet Recovery (HELPeR™) ● API support via Telnet ● Wake-on-LAN (WOL) support ● IPv4 and IPv6 support ● Network test ● Quality of service (QoS) ● VLAN (802.1Q / 802.1P) ● EAP 802.1x
|
Security | ● AES (Advanced Encryption Standard) function (128-bit)
● Password protection for system settings ● Password protection for remote system management |
Web Management Tool | ● Remote management
● Live monitoring ● Firmware update ● Phonebook download/upload/edit ● Restore system settings ● Export call history |
Value – added features | ● Meeting recording
○ In meeting and offline recording ○ Save directly to USB flash drive ○ Supports screen re-layout during playback ○ Playback and file conversion via VCPlayer software (.mov and .mp4 format) ● EZMeetup software/App ○ 30-day for free trial ○ Connect with H.264 video codec ○ Receive resolution up to full HD 1080p at 30fps ○ Transmit resolution up to full HD 1080p at 30fps ○ Support content sharing, capture and recording ● EZDraw App ○ Import .JPG, .PNG, .GIF and .BMP files ○ Export .PNG files ○ A maximum of 10 devices can be connected ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual monitor support and SnapShot ● Speed dialing via hot keys (10 sets) ● Camera presets (100 positions) ● Firmware update via USB flash drive ● Screensaver and auto power off mode ● 2nd camera control from EVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p) ● Group calling ● Supports SIP voice calls ● Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera 2nd camera 2 Different contents) ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual camera and dual content image by Side-by-Side or Picture-in-Picture ● iSCSI storage device settings ● Built-in SIP server(Up to 100 Registrations, 50 Pair calling) ● Support AVer Register Server (ARS) ● Meeting ID method and High-Res mode |
Power Supply | ● AC 100V ~240V, 50/60Hz
● Consumption: EIAJ 12V, 6.25A |
Environmental data | ● Operation temperature: 0 ~40°C
● Operation humidity: 20% ~80% ● Storage temperature: -20 ~60°C ● Storage humidity: 20% ~80% |
Physical Characteristics | ● Package dimensions: 376 x 300 x 243mm
● Package weight: 6.14kg ● Main system (codec): 260 x 158.7 x 33mm ● eCam PTZ IV: 180 x 144 x 184mm ● EVC microphone array: 131.9 x 118.6 x 25.5mm |
Optional accessories | ● Additional microphone
● Camera mount ● USB-to-RS232 converter |
Software options | ● 2,4,6,8,10 multipoint license for up to maximum 4 CAMERA
● WebRTC License |
Warranty | ● 3 2 year warranty* |
PACKAGE CONTENTS
- Main system unit (codec)
- eCam PTZ III camera
- EVC microphone array
- IR remote control with batteries
- Power supply (12V/6.25A)
- VGA cable (1.8M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable X 2 (3M)
- Warranty card
- Quick guide
