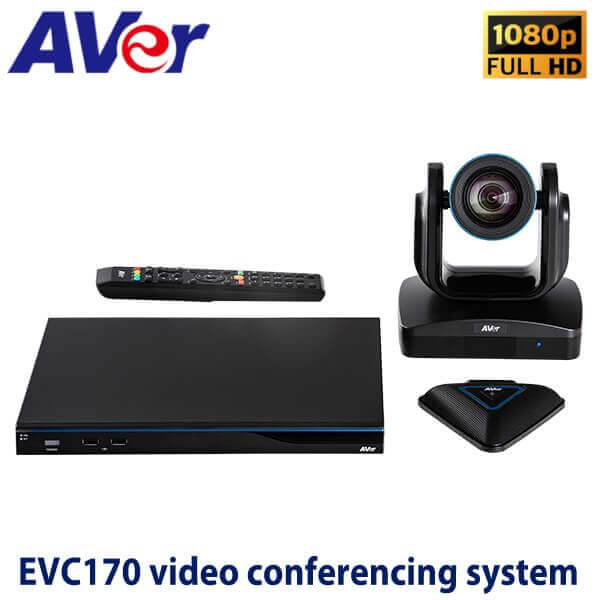

Aver evc170 full HD video conferencing system Dubai

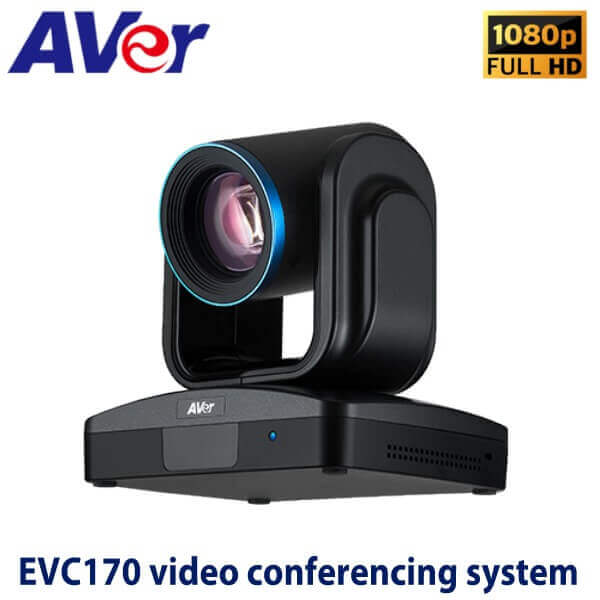

The camera on the AVer EVC170 Full HD Video Conferencing System has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second, resulting in crystal clear images. The 18X Zoom allows you to frame speakers and presenters into a perfect frame that cuts out unwanted distractions. Zoom, pan and tilt functions on the AVer EVC170 Full HD Video Conferencing System benefit from next-generation autofocus optical engineering, making them fluid, seamless, and smooth. The Aver EVC170 Full HD video conferencing system’s SmartFrame technology gives an edge in that it is able to automatically frame and include every participant in the room regardless of their distance from the lens, thanks to its facial recognition algorithm. The onboard PTZ motorized camera on the AVer EVC170 Full HD video conferencing system adjusts focus, pans, and tilts speedily with no sound, ensuring that your meetings are not distracted by shutter and zoom sounds.

Aver evc170 full HD video conferencing system Features :

4K RESOLUTION

The camera on the AVer EVC170 Full HD Video Conferencing System has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second, resulting in crystal clear images. Its inbuilt sensor offers users next-level video performance for every frame of the production, complete with auto exposure, autofocus, and auto white balance.

REVEL IN 18X ZOOM DETAIL

The 18X Zoom allows you to frame speakers and presenters into a perfect frame that cuts out unwanted distractions. The cutting edge 4K Image Sensor makes it possible for the camera to zoom in on whiteboards comfortably to still give clear High Definition video and content that participants in remote locations can view comfortably.

ZOOM, PAN AND TILT FLUIDLY

Zoom, pan, and tilt functions on the AVer EVC170 Full HD Video Conferencing System benefit from next-generation autofocus optical engineering, making them fluid, seamless and smooth. Built into the AVer EVC170 Full HD Video Conferencing System is the futuristic True Optical 18X Zoom wide-angle camera, one of the most advanced at the moment, enabling you to push focal length to full limits without compromising on image clarity.

SMART FRAME CAPTURE

The Aver EVC170 Full HD video conferencing system’s SmartFrame technology gives an edge in that it is able to automatically frame and include every participant in the room regardless of their distance from the lens, thanks to its facial recognition algorithm. Its wide 82° field of view allows for 7 – 12 people or more in the room, and the PTZ camera provides flexible motorized ±130° pan and 90°/-25° tilt movement. This ensures a single click transition in moments when the meeting receives new participants or releases some to leave a fewer number.

PAN, TILT & ZOOM

The onboard PTZ motorized camera on the AVer EVC170 Full HD video conferencing system adjusts focus, pans,and tilts speedily with no sound, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer EVC170 Full HD video conferencing system makes it suitable for use in large rooms and auditoriums.

BUILT-IN MEETING SERVER

The Magnificent EVC170 Full HD Video Conferencing System works perfectly with NAT Traversal, SIP registrar, and Meeting ID for full compatibility with SIP, H.323, and WebRTC, providing you with a diverse and simple collaboration possibities.

EASY SETUP

The AVer EVC170 Full HD Video Conferencing System is specifically designed to give users a quick installation as well as an easy operation. The unit plugs effortlessly into other office peripherals and systems, thanks to its Plug – and – Play feature, to give you an unmatched video conferencing luxury. The user is also able to mount the AVer EVC170 Full HD Video Conferencing Camera on different platforms, depending on their preference and choice, from an LCD screen to a tabletop, while enjoying the flexibility of an adjustable clip.

RTMP FOR LIVE VIDEO STREAMING

Enjoy seamless live streaming using the premium AVer EVC170 Full HD Video Conferencing System which allows you to live stream speeches, presentations, and even lectures without much struggle. You can even record your live stream sessions.

WEB REAL – TIME COMMUNICATION (WebRTC)

When using the advanced browser such as the Firefox or Chrome on your AVer EVC170 Full HD Video Conferencing System, you can instantly communicate in real time with WebRTC integration. This feature enables you to share slides, or even create live customer support, eliminating the need to incur expenses acquiring expensive third party services.

LICENSE UPGRADEABLE

The AVer SVC170 Full HD Video Conferencing System allows for license upgrade, expandable to a maximum of up to 4 websites, therefore easily meeting your company’s growing communication needs.

FREE SOFTWARE SUPPORT

AVer has designed free software support which include EZMeetUp, EZDraw, VCLink,VCPlayer, ScreenShare and VCUtility to allow its users to enjoy unlimited communication.

MULTIPLE LANGUAGE USER INTERFACE

The Aver EVC170 Full HD Video Conferencing System is built in a very user – friendly manner, supporting the use of 23 different languages including English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, and Vietnamese.

MAXIMUM SECURITY

The AVer EVC170 Full HD Video Conferencing System comes with a password protection for system settings and remote system management. Its embedded AES(Advanced Encryption Standard) function (128 – bit) secures your contents, ensuring they are not accessed without your authorization.

Why the AVer EVC170 Full HD Video Conferencing System?

Amazing richness and clarity while sharing content using its Ultra HD 4K camera
An easy user experience by incorporating video conferencing and content sharing in one solution
Easy wired and wireless content sharing in real time
Deployment made easy by its industrialized standard cables and IP connectivity of peripherals
Maximum compatibility with popular cloud services, eliminating the need for a PC or a Mac

Aver evc170 full HD video conferencing system Specifications :

Communications	● H.323, SIP standards, SIP TLS ● WebRTC (License Required) ● Mixed protocols between H.323, SIP, WebRTC ● Call Quality bandwidth 64Kbps ~ 8Mbps ● RJ45 network LAN (10/100/1000) ● Manual bandwidth settings ● Manual Max. bandwidth settings
Camera	● eCam PTZ III camera ● 2-megapixel CMOS sensor ● 18X total zoom ● ±110° pan; 25°/-25° tilt ● 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
People video resolutions	● HD1080p (1920 x 1080), up to 60fps ● HD720p (1280 x 720) ● 480p (848 x 480) ● 4CIF (704 x 576) ● CIF (352 x 288) ● SIF (352 x 240) ● All resolutions at 30fps
Content Video resolutions	HDMI supported resolutions: ● 1080p (1920 x 1080) ● 720p (1280 x 720) ● D1 (720 x 480) ● SXGA (1280 x 1024) ● XGA (1024 x 768) ● SVGA (800 x 600) ● VGA (640 x 480) DVI (digital) supported resolutions: ● 1080p (1920 x 1080) ● 720p (1280 x 720) ● D1 (720 x 480) ● SXGA (1280 x 1024) ● XGA (1024 x 768) ● SVGA (800 x 600) ● VGA (640 x 480) Output resolutions: ● Up to HD1080p (1920 x 1080) at 60 fps
Video standards	● H.264, H.264 HP, H.264 SVC, H.263 , H.263, H.261 ● H.239 dual video streams ● BFCP content sharing ● RTMP for live video streaming ● Forward Error Correction (FEC) ● Anti 30% video packet loss with FEC
Video features	● 3D denoise
Video inputs	● Main camera eCam PTZ III ● HDMI for 2nd camera ● DVI-I/VGA for presentation ● HDMI for presentation
Video outputs	● HDMI × 2
Audio Standards	● G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD
Audio features	● Automatic gain control (AGC) ● Advanced noise reduction ● Acoustic echo cancellation (AEC)
Audio inputs	● Microphone pickup range of 6m, daisy chain up to 4 ● HDMI ● Line-in (3.5 mm)
Audio outputs	● HDMI ● Line-out (3.5 mm)
Other supported standards	● H.224, H.225, H.245, H.281, H.323 Annex Q, H.460 ● RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP
User Interface	● Single/dual monitor layout styles ● User-friendly OSD (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) ● Display/edit site name
Network	● 10/100/1000Mbps ● NAT/firewall traversal (H.460) ● High Efficiency Lost Packet Recovery (HELPeR™) ● API support via Telnet ● Wake-on-LAN (WOL) support ● IPv4 and IPv6 support ● Network test ● Quality of service (QoS) ● VLAN (802.1Q / 802.1P) ● EAP 802.1x
Security	● AES (Advanced Encryption Standard) function (128-bit) ● Password protection for system settings ● Password protection for remote system management
Web Management Tool	● Remote management ● Live to monitor ● Firmware update ● Phonebook download/upload/edit ● Restore system settings ● Export call history
Value – added features	● Meeting recording ○ In meeting and offline recording ○ Save directly to USB flash drive ○ Supports screen re-layout during playback ○ Playback and file conversion via VCPlayer software (.mov and .mp4 format) ● EZMeetup software/App ○ 30-day for free trial ○ Connect with H.264 video codec ○ Receive resolution up to full HD 1080p at 30fps ○ Transmit resolution up to full HD 1080p at 30fps ○ Support content sharing, capture and recording ● EZDraw App ○ Import .JPG, .PNG, .GIF and .BMP files ○ Export .PNG files ○ A maximum of 10 devices can be connected ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual monitor support and SnapShot ● Speed dialing via hot keys (10 sets) ● Camera presets (100 positions) ● Firmware update via USB flash drive ● Screensaver and auto power off mode ● 2nd camera control from EVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p) ● Group calling ● Supports SIP voice calls ● Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera 2nd camera 2 Different contents) ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual camera and dual content image by Side-by-Side or Picture-in-Picture ● iSCSI storage device settings ● Built-in SIP server(Up to 100 Registrations, 50 Pair calling) ● Support AVer Register Server (ARS) ● Meeting ID method and High-Res mode
Power Supply	● AC 100V ~240V, 50/60Hz ● Consumption: EIAJ 12V, 6.25A
Environmental data	● Operation temperature: 0 ~40°C ● Operation humidity: 20% ~80% ● Storage temperature: -20 ~60°C ● Storage humidity: 20% ~80%
Physical Characteristics	● Package dimensions: 376 x 300 x 243mm ● Package weight: 6.99kg ● Main system (codec): 320 x 262.7 x 37.2mm ● eCam PTZ IV: 180 x 144 x 184mm ● EVC microphone array: 131.9 x 118.6 x 25.5mm
Optional accessories	● Additional microphone ● Camera mount ● USB-to-RS232 converter
Software options	● 2,4,6,8,10 multipoint license for up to maximum 4 sites ● WebRTC License
Warranty	● 3 2 year warranty*
