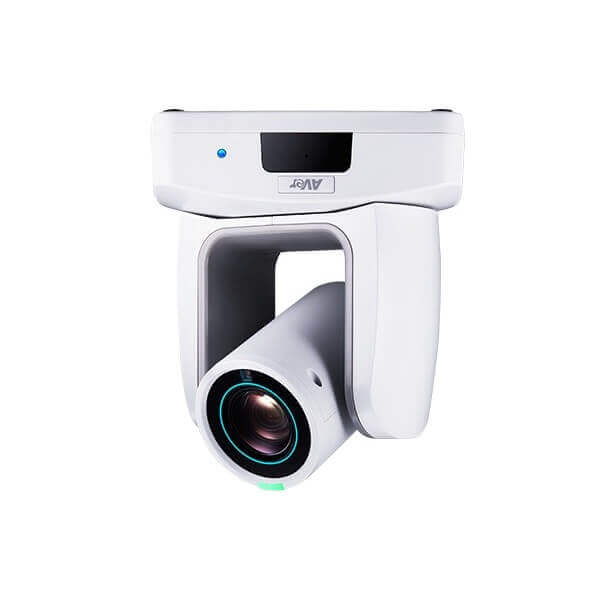

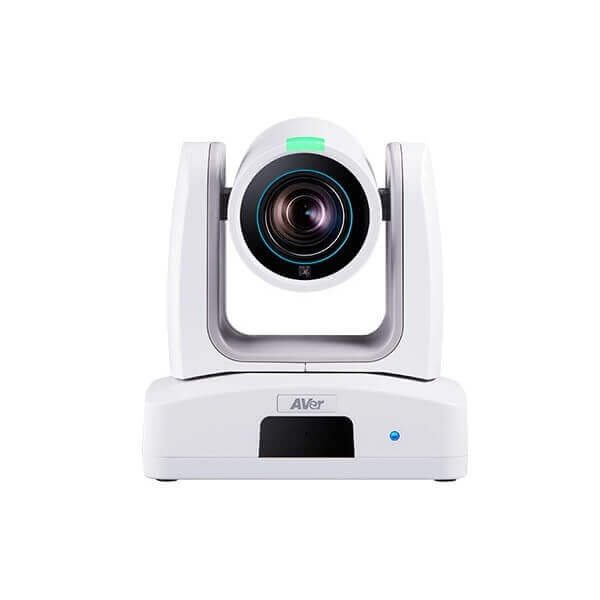

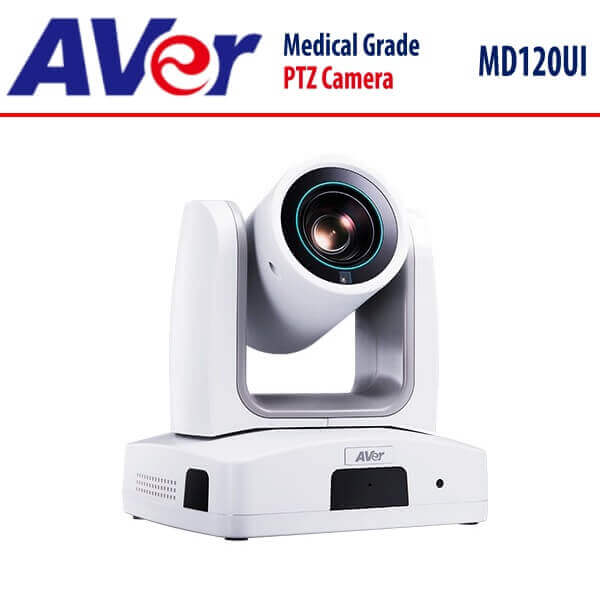

AVer MD120UI Medical Grade PTZ Camera Dubai

Introducing the groundbreaking AVer MD120UI Dubai, a revolutionary PTZ camera meticulously crafted for patient monitoring, setting new standards in healthcare surveillance. Harnessing cutting-edge AI advancements, this innovative device empowers healthcare professionals with seamless patient monitoring, facilitating heightened vigilance and responsiveness to patient requirements. With its remarkable 20X optical zoom and state-of-the-art 4K imaging capabilities, coupled with an infrared night view function, the AVer MD120UI Dubai ensures unparalleled clarity in patient observation, even in low-light conditions. Say goodbye to blind spots with this technological marvel, enabling round-the-clock monitoring for comprehensive patient care.

Specifications

Camera

• Image Sensor
  • 1/2.8′ CMOS
• Effective Picture Elements
  • 8 Megapixels

• Output Resolutions
  • Resolutions: 4K / 1080p / 720p
  • Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
• Minimum Illumination
  • 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center / Wide)
• Shutter Speed
  • 1/1s to 1/10,000s

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto / Manual

• Optical Zoom
  • 20X
• Digital Zoom
  • 1X

• Total Zoom
  • 20X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 4.1° (Tele)
  • HFOV: 62.3° (Wide) to 3.6° (Tele)
  • VFOV: 37.7° (Wide) to 2.1° (Tele)

• Focal Length
  • f = 4.5 mm (Wide) to 90 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance
  • 0.1 m (Wide) , 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan: ±170°, Tilt: +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
• Preset Speed
  • Pan: 200° / sec, Tilt: 200° / sec
• Preset Positions
  • 10 (IR), 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 / RS-422 / Ethernet
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP), CGI (IP)
• Image Processing
  • Mirror / Flip / Freeze / WDR / BLC
• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • Eye Tracking

Privacy

• Protection Mode
  • Privacy Mode, Privacy Indicator

General

• Power Requirement
  • 12V
• Power Consumption
  • 24W

• PoE
  • PoE+ (IEEE802.3at)
• Dimensions
  • 180(W) x 145(D) x 183.5(H) mm

• Net Weight
  • 1.7 ± 0.1 kg
• Housing Material
  • Anti-UV

• Application
  • Indoor
• IR Night Vision
  • Yes

• Security
  • Kensington Slot
• IR Remote Control
  • Yes

• Operating
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature: -20 °C to +60 °C
  • Humidity: 20% to 95%

Audio

• Channels
  • 2ch Stereo
• Codec
  • AAC-LC (48K)

• Built-in Microphone
  • 1 (Omni-Directional)

Interface

• Video Outputs
  • HDMI, IP, USB
• Audio Outputs
  • HDMI, IP, USB

• Audio Inputs
  • N/A

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 4K 60fps
• Bit-Rate Control Modes
  • VBR, CBR

• Range of Bit-Rate
  • 512Kbps to 64Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 2 (RTSP / Web page), 4K 60fps Max.
• Network Protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP

USB

• Connector
  • USB 3.0 (Type-B)
• Video Formats
  • MJPEG

• Maximum Video
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows® 7 or later
• PTZ Management
  AVer ViewCare
  • Support Windows® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS® 11 or later
• Camera Setting Tool
  • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

• Camera
  • 3 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
