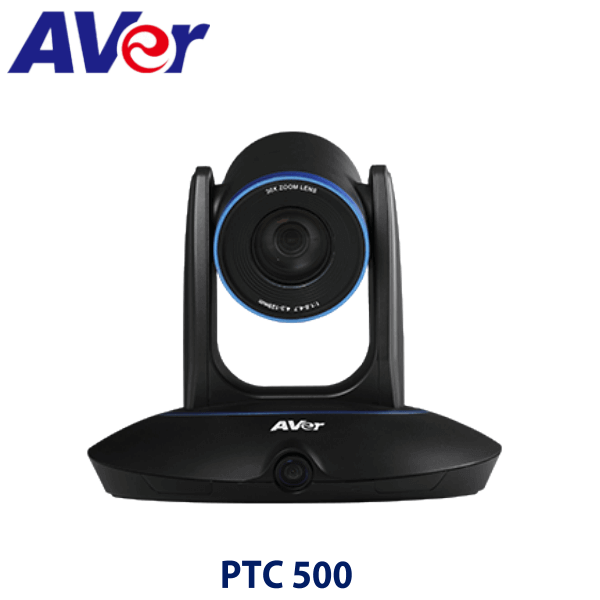

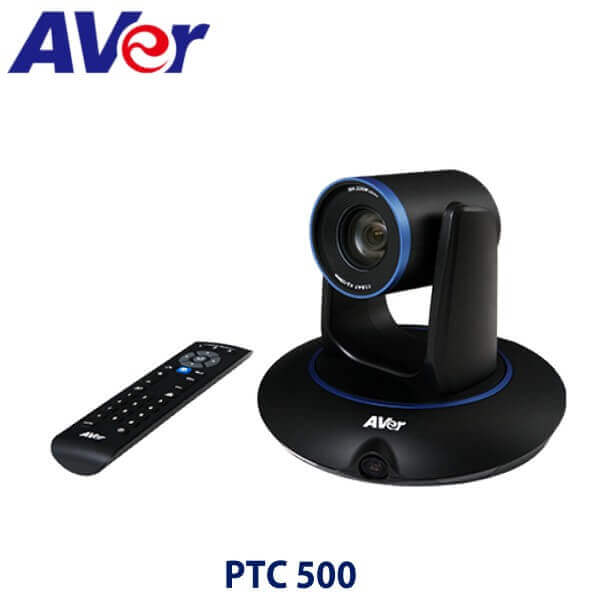

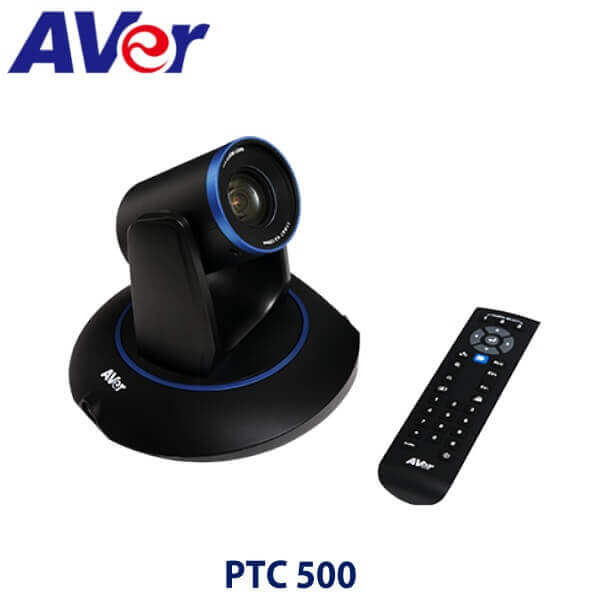

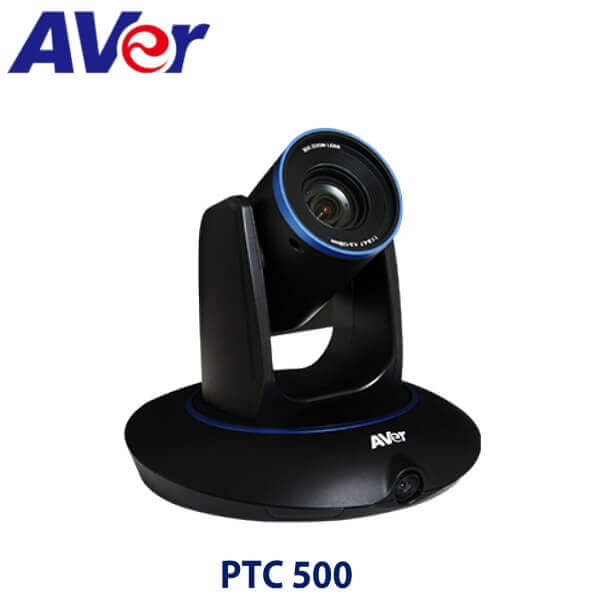

Aver PTC500 Dubai
Aver PTC500 is the go-to professional tracking camera for use with assorted applications. Built with a powerful PTZ camera that boasts an impressive 30X optical zoom, Aver PTC500 video conference dubai tracks and film subjects and objects in motion without losing focus to distractions that may cross its field of vision during filming. The onboard wide-angle camera offers panoramic views for convenience in previewing huge spaces. The module can be can set up through a control software, which offers varied setup options on an interactive interface. Built for quality and ease of customizing, the Aver PTC500 delivers the breathtaking video for streaming and sharing during video conferences, lectures, demonstrations, and speeches, just to mention a few.
Furthermore, the futuristic algorithm embedded into the Aver PTC500 automatically tracks the presenter’s face, enabling them to roam freely around the room without to need for extra guidance accessories. They are thus able to guide and solve students problems for quality education. Aver PTC500 also eliminates worries that come with connection restrictions, charging security and costs of purchasing wearable devices. Now, focus on interactive knowledge dissemination with zero-distance between teachers and students.
Aver PTC500 Features :
- Dual Lens
- The Pan-Tilt-Zoom camera integrates a dual-lens super-wide 120° FOV secondary camera for tracking the presenter and simultaneously capturing panoramic views of the classroom. You can also enjoy working with the Picture-in-Picture mode while capturing the speaker and room at the same time. Now you can present all teachable lesson details without missing important moments.
- Hi-tech Auto Tracking
- The PTC500 camera enables you to enjoy high-accuracy tracking on top of its ability to set 1 target zone and 8 blocking zones. Not even the slightest distraction compromises the AVer PTC500’s excellent tracking accuracy.
- Ultra High Definition Imaging
- The AVer PTC500 series uses Full High Definition quality of 1080p at 60 frames per second to result in crystal clear images and videos. The camera further optimizes light and balances color to provide you with natural-looking and even skin tones for all skin types, regardless of the room’s lighting conditions. This ensures that you can clearly see all the shared pictures, texts, tables, and videos even if you are using a projector during your presentations.
- Pan, Tilt & Zoom
- The onboard PTZ motorized camera on the AVer PTC500 adjusts focus, pans at an angle of 350°, and tilts speedily at an angle of 120° radius with absolutely no sound at all, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer PTC500 camera enables you to use it in large rooms and auditoriums.
- Optical zoom
- The Aver PTC500 camera comes with an ultra High Definition picture resolution quality that results in crystal clear images. With its 30× optical zoom ability, the Aver PTC500 camera can capture very clear images of people and objects in the room, regardless of distance from the unit.
- Free Acu Control Software
- This user-friendly software works perfectly with the Aver PTC500, enabling you to adjust settings and even preview videos before your presentation. The Aver PTC500 also allows you to transfer videos through IP streaming and supports the ONVIF protocol.
Aver PTC500 Specifications:
PTZ Camera | ● Image sensor : 1/ 2.8″ 60fps low lux CMOS sensor, 2 mega pixels
● Output resolution : auto, 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 720p/60 ● Optical zoom : 30× ; Digital zoom 12× ● Lens focal length : f = 4.3mm (wide) ~ 129mm( Tele) ● Iris = 1.6(wide) ~ 4.7( Tele) ● View of angle : DFOV = 76°(wide) ~ 3° (Tele) ● Minimum illumination : IRE50 0.47 lux(60fps); 0.23lux (30fps) ● Preset number: 10 locations by remote (256 via RS232) ● Minimum working distance : 1.2 meter at Tele -end (30×); 0.1 meter at wide end(1×) ● White balance : auto / manual (2500 ~ 10000) ● Gain : auto/manual ● Electronic shutter : 1/ 5 s to 1/ 32000s ● BLC(back light compensation ) : off/on ● Exposure : auto /shutter priority /iris priority/manual ● Noise reduction : off/low/medium/high ● Frequency : auto/50Hz/60Hz ● S/N ratio : >50dB ● Horizontal resolution : Center : 800 TV Lines, Corner : 600 TV Lines |
Panoramic Camera (Full View) | ● Image sensor : 1/ 2.8″ 60fps low lux CMOS sensor with WDR Tilt rotation : -30° (down) 90° (up)
● Effective picture elements : 2MP ● Output resolution : auto, 1080p/60, 1080p/30, 720p/60 ● Lens focal length : 2.12mm ● White balance : auto ● Exposure : auto ● FOV : DFOV = 120°, HFOV = 110°, VFOV = 74.5°
|
Pan Tilt Parameter | ● Pan control speed : 2° ~ 50°/ sec
● Tilt control speed : 2° ~ 50°/ sec ● Preset speed : pan 160° / sec; tilt 160°/ sec |

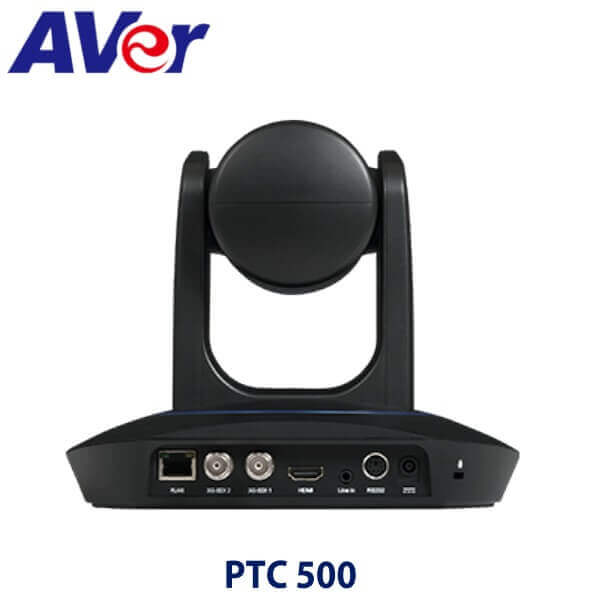

Interface/Streaming/ Protocol | ● 3G – SDI *2, HDMI*1, IP(RJ45)
● Video output capability : up to 1080p @ 60 fps ● Remote control : RS232( via optional DB9 to DIN6 adapter) ● Baud rate : 115200/9600/4800/2400 bps ● Network interface : 10/100/100 base – T support Wake – on – LAN ● Network video compress format : H. 264 ● Network protocol : RTSP, RTMP, ONVIF ● IP video streaming : dual video streaming (PTZ and panoramic view) ● Control protocol : VISCA/ Pelco – D/ Pelco – P ● Power : DC12V, power jacket |
System | ● Remote IR : IR sensor
● Audio : PCM, AAC – LC, G.711 ● LED : power ( blue – open, red -closed) ● Security : Kensington slot ● Infrared remote : receiver on front of camera ● Power adapter : AC110AV – AC220AV to DC12V/5A ● Consumption : 24W (Max) ● Operating temperature : 0°C ~ 40° C ● Operation humidity : 20% ~ 80% ● Storage temperature : -20°C ~ 60°C ● Storage humidity : 20% ~ 95% ● Dimensions : L = 201.09mm, W = 210mm, H = 176mm ● Weight : 1.75kg ● Accessory : remote control, 12V/5 A power adapter, DIN6 adapter, user manual
|
Acu Control | ● Free download on App Store
● Supported devices and Platform ○ iPad(iOS v8) ● System requirements for iPad ○ iPad mini2, iPad mini 3, iPad Air, iPad Air 2 ○ Chipset : Apple A7 or higher ● Switch camera working mode and defined camera presets ● Set tracking and shielded zone ● Adjust the output format and tracking sensitivity ● Diagnose operating status ● Features ○ 1/ 2.8″ high quality low lux CMOS sensor ○ PTZ camera with 30× total zoom ○ 1080p/60fps high definition signal output ○ Built – in panoramic camera and tracking camera for integrated fusion ○ Accurate algorithms with smooth and precise tracking ○ High speed of tracking rotation : 120°/sec ○ Support ONVIF, RTSP protocols |
WebUI | Browser IP access( Chrome, FireFox, IE, etc.) |
Package Contents
- The AVer PTC500 camera
- Remote control
- 12V/5A Power Adapter
- DIN6 adapter
- User manual
