Description

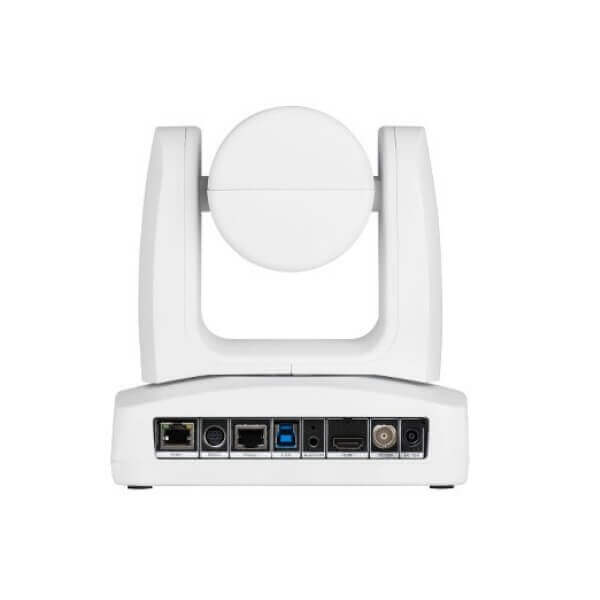

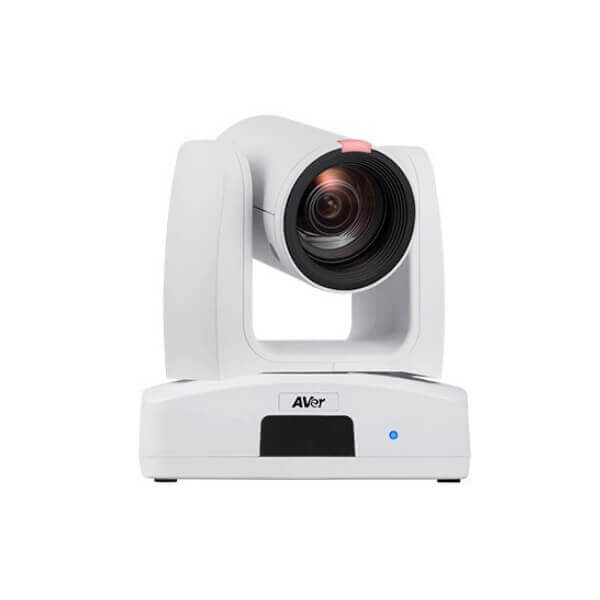

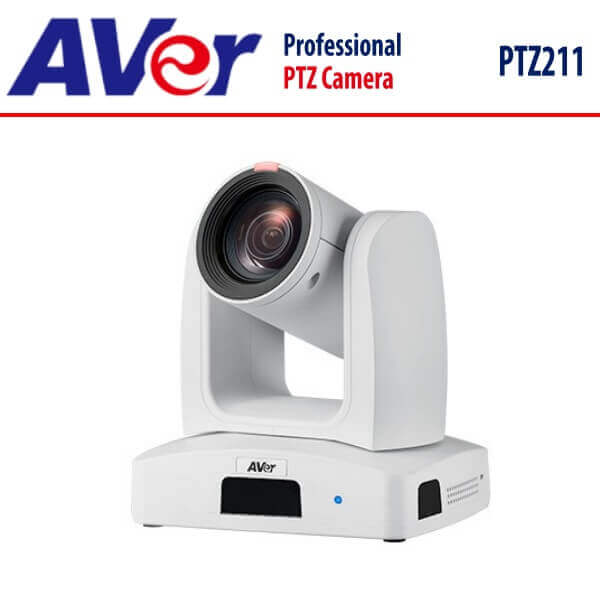

Aver PTZ211 Professional PTZ Camera Dubai

Discover the unparalleled capabilities of the AVer PTZ211 Dubai, an innovative PTZ camera engineered to empower you with comprehensive control over your streaming endeavors. Elevate your streaming experiences to professional-grade standards with its stunning full HD 1080p output, delivering smooth visuals at an impressive 60 frames per second. Immerse your viewers in every detail with the 12X optical zoom, ensuring clarity and precision in every shot. What’s more, revolutionize your content creation process with the cutting-edge SmartShoot feature, enabling seamless automatic framing and tracking. Elevate your livestream performances and captivate your audience with the AVer PTZ211 Dubai, setting a new standard in streaming excellence.

Specifications

Camera

• Image Sensor
  • 1/2.8” 1080p Exmor CMOS
• Effective Picture Elements
  • 2 Megapixels

• Output Resolutions
  • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 0.46 lux (IRE50, F1.6, 30fps)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center)
• Shutter Speed
  • 1/1 to 1/32,000 sec

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push

• Optical Zoom
  • 12X
• Digital Zoom
  • 1X

• Total Zoom
  • 12X
• Viewing Angles
  • DFOV: 80.6° (Wide) to 7.7° (Tele)
  • HFOV: 72.8° (Wide) to 6.7° (Tele)
  • VFOV: 44.1° (Wide) to 3.8° (Tele)

• Focal Length
  • f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris)
  • F = 1.6 (Wide) to 2.8 (Tele)

• Minimum Working Distance
  • 0.3 m (Wide)
  • 1.5 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec

• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP

• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror

• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • SmartShoot

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC

Interface

• Video Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI, IP, USB

• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/2A
• Power Consumption
  • 19W

• PoE
  • PoE+
• Dimensions (W x H x D)
  • 180.0 x 192.0 x 145.0 mm

• Net Weight
  • 2.0 (±0.1) kg
• Application
  • Indoor

• Tally Lamp
  • Yes
• Security
  • Kensington Slot

• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

• Storage Conditions
  • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution
  • 1080p 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 1080p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)

• Range of Bit-Rate Setting
  • 512 Kbps to 120 Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 4
  • 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

• NDI^®HX
  • License Upgrade to NDI HX2 available in 2024Q2

USB

• Connector
  • USB 3.1
• Video Formats
  • MJPEG, YUY2

• Maximum Video Resolution
  • 1080p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^® 7 or later
• PTZ Management
  • Support Windows^® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS^® 11 or later
• PTZ Link
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

• OBS Plugin for PTZ Cameras
  • Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
