Description

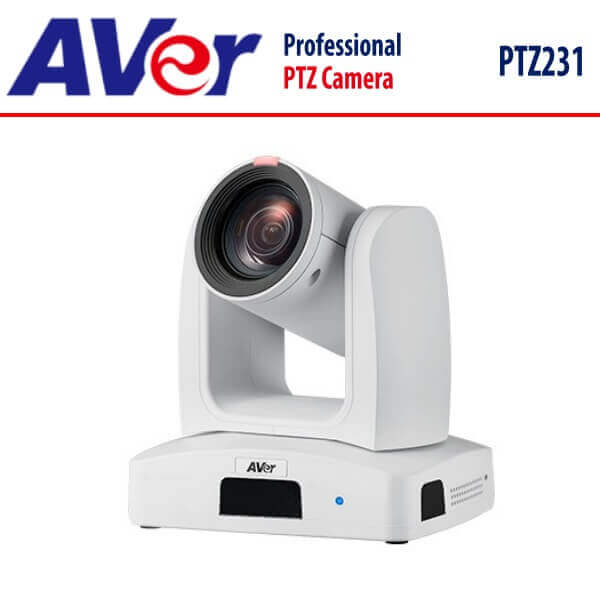

Aver PTZ231 Professional PTZ Camera Dubai

Discover the AVer PTZ231 Dubai, an innovative PTZ camera engineered to empower your streaming endeavors with unparalleled precision and sophistication. Elevate your content creation to new heights as you indulge in the seamless delivery of professional-grade streaming, boasting vivid full HD 1080p outputs at a smooth 60 frames per second. With its remarkable 30X optical zoom capabilities, every detail of your subject comes to life with crystal clarity, ensuring nothing escapes the eye of your audience.

But that’s not all. The AVer PTZ231 Dubai doesn’t just stop at exceptional video quality; it also introduces the cutting-edge SmartShoot feature, revolutionizing the way you capture and present your content. Seamlessly switch between different preset shooting modes or customize your own, all at the touch of a button. From wide-angle scenic shots to up-close-and-personal moments, the possibilities are endless, allowing you to tailor your livestream performances with unmatched flexibility and creativity.

Step into the spotlight and let the AVer PTZ231 Dubai be your trusted companion in the world of streaming, where every frame is a masterpiece waiting to be unveiled. Upgrade your setup, captivate your audience, and embark on a journey of content creation like never before with this exceptional PTZ camera.

Specifications

Camera

• Image Sensor
  • 1/2.8” 1080p Exmor CMOS
• Effective Picture Elements
  • 2 Megapixels

• Output Resolutions
  • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 0.5 lux (IRE50, F1.6, 30fps)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center)
• Shutter Speed
  • 1/1 to 1/32,000 sec

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push

• Optical Zoom
  • 30X
• Digital Zoom
  • 1X

• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)

• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance
  • 0.1 m (Wide)
  • 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec

• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP

• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror

• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • SmartShoot

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC

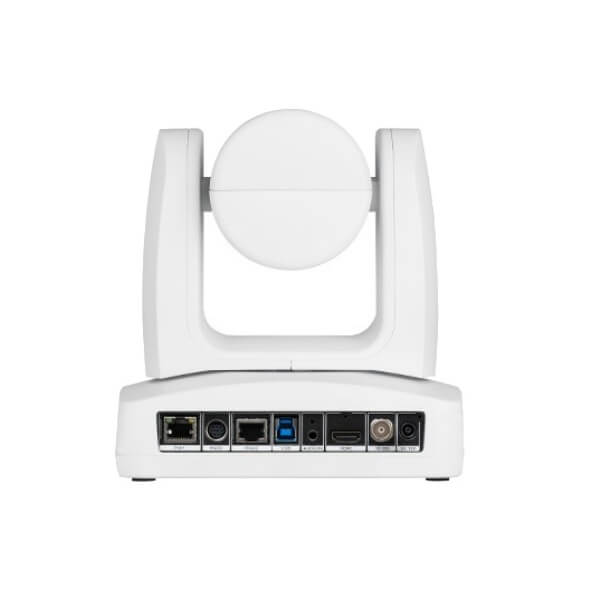

Interface

• Video Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI, IP, USB

• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/2A
• Power Consumption
  • 19W

• PoE
  • PoE+
• Dimensions (W x H x D)
  • 180.0 x 192.0 x 145.0 mm

• Net Weight
  • 2.0 (±0.1) kg
• Application
  • Indoor

• Tally Lamp
  • Yes
• Security
  • Kensington Slot

• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

• Storage Conditions
  • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution
  • 1080p 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 1080p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)

• Range of Bit-Rate Setting
  • 512 Kbps to 120 Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 4
  • 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

• NDI^®HX
  • License Upgrade to NDI HX2 available in 2024Q2

USB

• Connector
  • USB 3.1
• Video Formats
  • MJPEG, YUY2

• Maximum Video Resolution
  • 1080p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^® 7 or later
• PTZ Management
  • Support Windows^® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS^® 11 or later
• PTZ Link
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

• OBS Plugin for PTZ Cameras
  • Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)

• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
