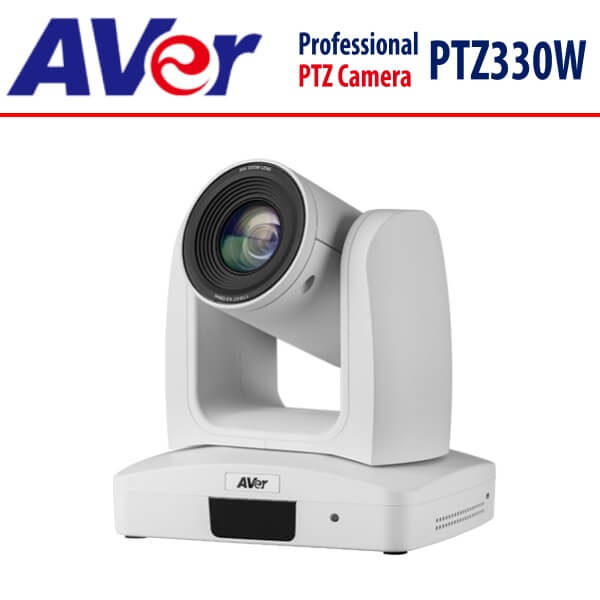

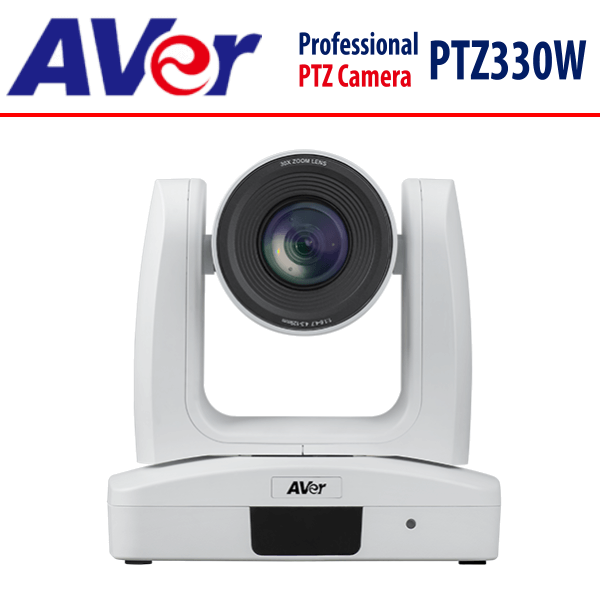

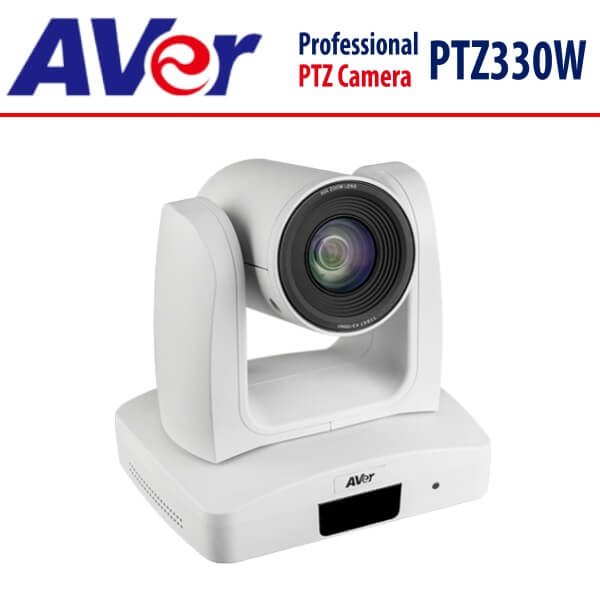

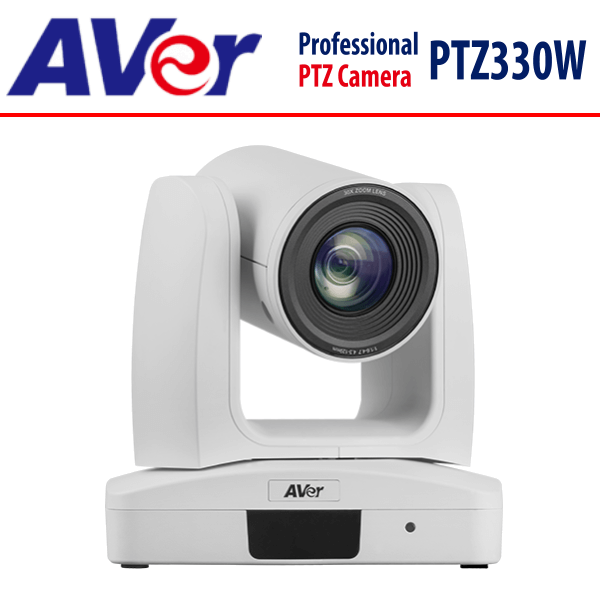

Aver PTZ330W Dubai

The Aver PTZ330W Dubai Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.

Add to quote

Description

Aver PTZ330W Professional PTZ Camera Dubai

The Aver PTZ330W Dubai allows you to capture 1080p images and videos via its 1/2″8 CMOS sensor. The PTZ330 features a 30X optical zoom and a 12X digital zoom, and supports Flip and Mirror options. The camera features 10 angle preset locations via IR and 255 presets via RS-232. You can control the 170° pan and -30 to +90° tilt range and speed. The camera features 3G-SDI and HDMI outputs, stereo audio input, RS-422, RS-232, LAN, and USB Micro-B control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording.

Fit your FOV in seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Highly versatile camera motion control

The Aver PTZ330W Dubai advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ330 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Prepare for any angle with outstanding preset location functionality

Preset the Aver PTZ330W Dubai with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.

AVer PTZ330 Specs

Image Sensor

Image Sensor	1-Chip 1/2.8″ CMOS Sensor
Horizontal Resolution (TV Lines)	600 TV Lines
Sensor Resolution	Effective: 2 Megapixel
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.3 Lux

Camera

Shutter Speed	1/1 to 1/32,000 sec
Max Digital Zoom	12x
Built-In Speaker	No
Flip / Mirror Support	Image Flip, Mirror (Vertical)

Lens

Optical Zoom Ratio	30x
Focal Length	4.3 to 129mm
Field of View	Horizontal: 67 to 2.3°
Maximum Aperture	f/1.6 to 4.7
Minimum Focus Distance	Wide: 0.0″ / 0.0 m Telephoto: 47.2″ / 1.2 m

Video Output

Output Formats	SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps
IP Streaming	H.264, MJPEG: 1080p at 30p, 60p

Control

Presets	10 via IR 255 via RS-232
Move Speed	Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec
Movement Range	Pan: 170° Tilt: -30 to 90°
Supported Control Protocols	IP RS-232 RS-422 VISCA

Interfaces

Video Output Connectors	1 x BNC (3G-SDI) 1 x HDMI Type A (HDMI 1.4)
Audio I/O	1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
Control Interface	1 x RJ45 (RS-422) 1 x 9-Pin D-Sub (RS-232)
Other I/O	1 x RJ45 (LAN) 1 x USB Micro-B
