Description

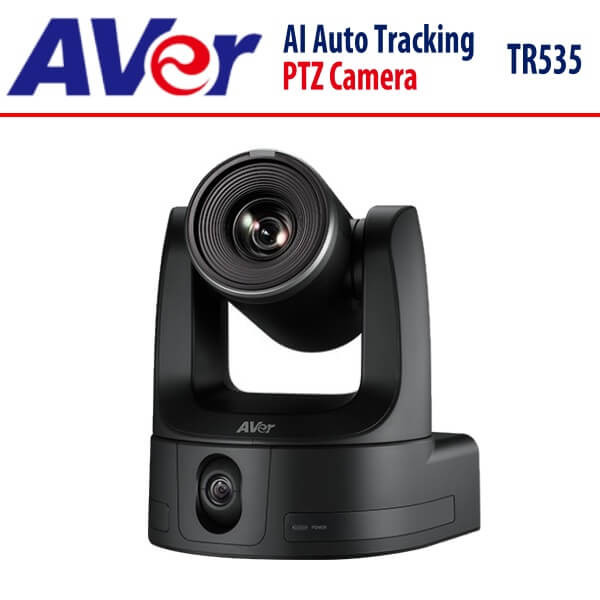

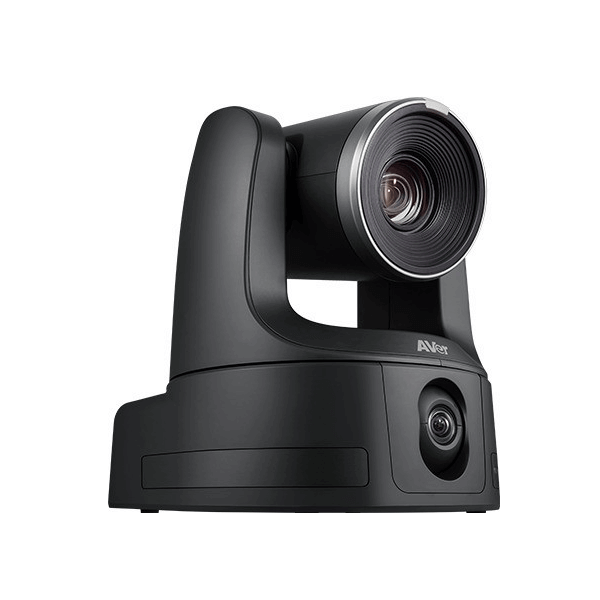

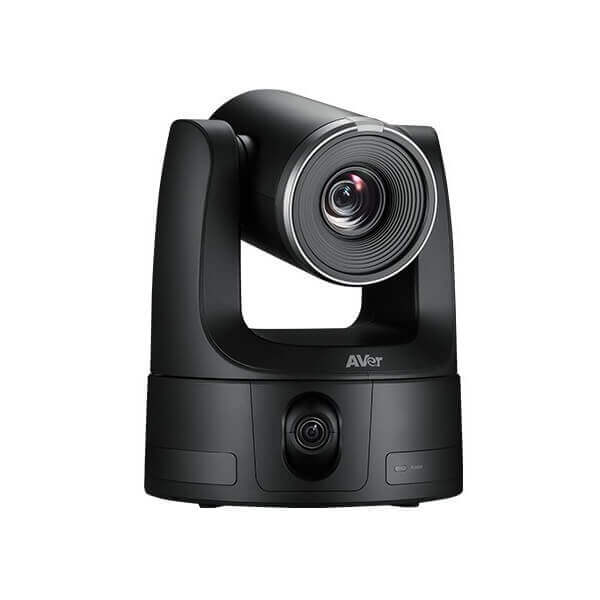

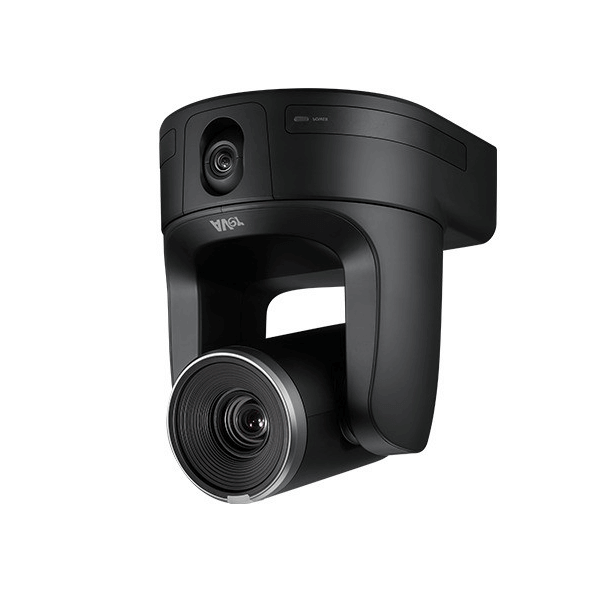

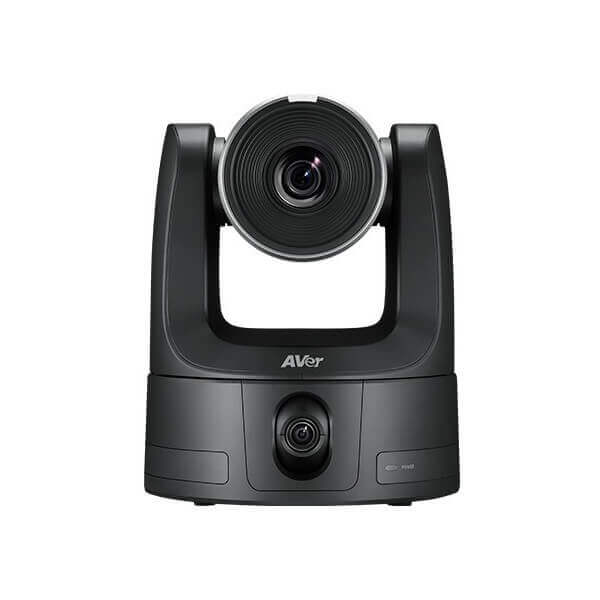

Aver TR535 Dual Lens Auto Tracking Camera Dubai

Experience the future of streaming with the Aver TR535 Dubai Dual Lens Auto Tracking Camera—a revolutionary tool designed for professionals in broadcasting, streaming, and recording. This camera is meticulously crafted to excel in dynamic and fast-paced environments, combining cutting-edge AI technology with superior optics to offer an unrivaled experience.

The Aver TR535 Dubai is equipped with a powerful 30X zoom lens alongside a sweeping wide-angle lens, making it capable of capturing every detail, whether large or small, with precision. From covering expansive spaces to zooming in on intricate details, the TR535 ensures nothing is missed. Its 4K PTZ camera produces crystal-clear, high-definition quality, bringing each scene to life with remarkable clarity and depth.

What truly distinguishes the Aver TR535 Dubai is its four AI-powered tracking modes, which deliver extraordinary precision in subject tracking. These intelligent tracking modes are designed to adapt seamlessly to your specific needs, ensuring smooth, automated transitions that maintain the professionalism and engagement of your content. With the TR535, you’re not just recording video—you’re creating an exceptional visual experience that resonates with your audience. Step into the future of smart, automated streaming with the Aver TR535 Dubai and elevate your content to new and unprecedented heights.

Features

• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking
• 5-Year Warranty

Technical Specifications

PTZ Camera

• Image Sensor
  • 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom
  • 30X
• Digital Zoom
  • 1X
• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 1 m (Wide)
  • 2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor
  • 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30
• Focal Length
  • 22 mm
• White Balance
  • Auto
• Exposure
  • Auto
• Viewing Angles
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles
  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48 K)
• Sample Rates
  • 48 KHz

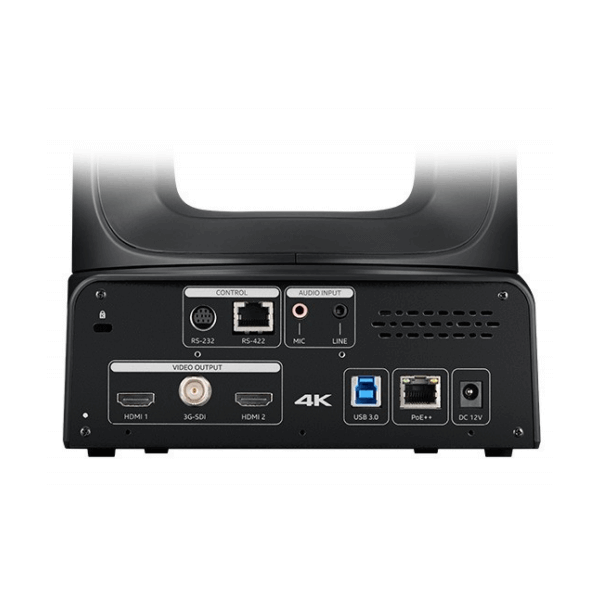

Interface

• Video Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 29W
• PoE
  • PoE++
• Dimensions (W x H x D)
  • 5 x 250.7 x 218.5 mm
• Net Weight
  • 6 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%
• Sustainability
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Network Audio Compress Formats
  • AAC-LC (48 K)
• Maximum Frame Rate
  • 2160p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 64 Mbps
• Network Interface
  • 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability
  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®High Bandwidth
  • N/A
• NDI^®HX2
  • N/A
• NDI^®Genlock
  • N/A
• NDI^®Embedded Bridge
  • N/A

USB

• Connector
  • USB 3.2 Gen 1
• Video Formats
  • MJPEG, YUY2
• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^®7 or later
• PTZ Management
  • Support Windows^®7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS^®9 or later
• PTZ Link
  • Supports Windows^®7 or later, macOS^®14 or later
• OBS Plugin for PTZ Cameras
  • Supports Windows^®8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^®7 or later, macOS^®14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year
• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
