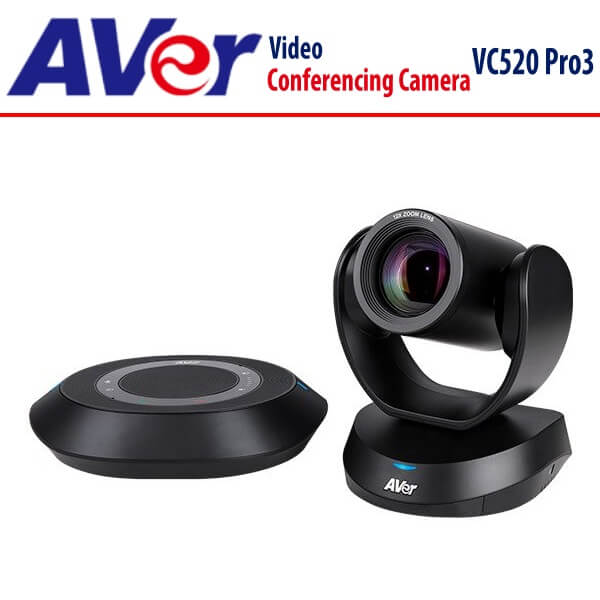

Aver VC520 Pro3 Video Conferencing System Dubai
Experience the exceptional capabilities of the Aver VC520 Pro3 Dubai, a cutting-edge conferencing system that sets itself apart. Boasting a 36X total zoom PTZ camera, advanced AVer SmartFrame technology, Preset Framing, and a Sony WDR sensor, it guarantees superior video and audio quality. With three-way outputs, including HDMI connectivity, it offers versatile streaming options.What makes the Aver VC520 Pro3 Dubai truly stand out is its Smart Composition feature, an embedded AI function that rapidly captures high-quality closeup images of meeting participants. The extended speakerphone solution further enhances the VC520 Pro3’s capabilities, ensuring outstanding video quality.

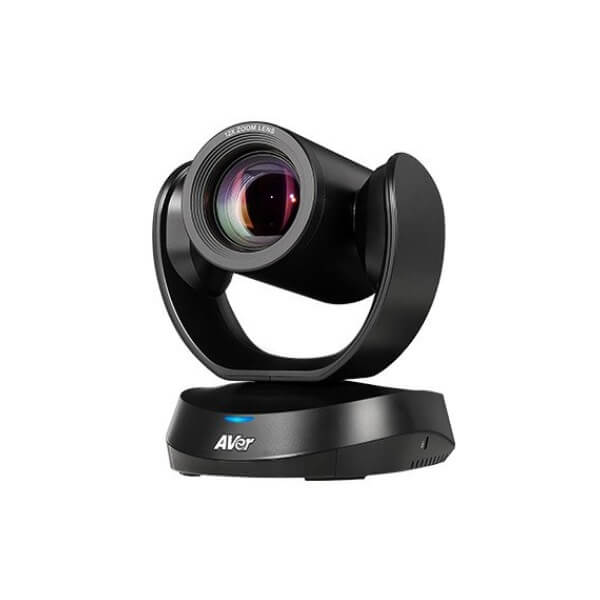

Conduct seamless meetings with the Aver VC520 Pro3 Dubai PTZ lens, providing an expansive 80.5° diagonal field of view and versatile pan and tilt controls. Equipped with a 12X optical lens and an impressive 36X total zoom, including 24X lossless zoom, the VC520 Pro3 ensures exceptional clarity in remote communication. The Sony WDR sensor adapts to various lighting conditions, making it perfect for mid-to-large conference rooms.As one of the pioneering PTZ camera and audio systems featuring Smart Composition, typically seen in enterprise-grade devices, the Aver VC520 Pro3 Dubai stands out. This AI-powered feature automatically frames each participant’s face or body perfectly, enabling seamless transitions between headshots and half-body views without the need for any software setup. Enjoy high-definition views of participants and effortless meeting setups for maximum productivity.
Facilitating simultaneous 1080p/60fps presentations through HDMI and USB 3.1 streaming or RTSP/RTMP H.264 broadcasting, the VC520 Pro3 Dubai allows for the use of a second display or lecture recording system during virtual meetings. This connectivity ensures seamless hybrid meeting experiences for your business.
Specifications
Camera
Resolution : (16 : 9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4 : 3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
- SmartFrame for automatic FOV adjustment to fit all participants.
- Smart Composition function offers great visibility for the individual participant in the meeting room.
Innovative Preset Framing : Follow the presenter based on preset areas.
WDR : Superb backlight compensation technology for optimizing light balance in high-contrast conditions.
Zoom : 36X* total zoom (12X optical zoom)
Field of view(D/H/V) : 80.5°/72.8°/44.1°
Lens focal length : 3.9 mm (wide) ~ 46.8 mm (tele)
Lens F# : 1.6 (wide) ~ 2.8 (tele)
- Mirror, flip, white balance : Auto/manual override via PTZApp 2
- Minimum focus distance : 1m
- Standard tripod screw holes and Kensington slot.
People-counting API : Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage.
*Please use PTZApp 2 to set up 36X zoom.
- Motorized Pan & Tilt Movement
- Pan : ±170°
- Tilt : +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan/tilt movement
Video Format
- YUV, YUY2, MJPEG
- Network video compression format : H.264
- Network protocol : RTSP, RTMP
Connectivity
- 12V/5A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- USB 3.1 Type-B connector
- IP (RJ45)
- HDMI out
*An RJ45 port is provided for Speakerphone connectivity.
USB
- 3.1 Gen 1 Type-B, backward compatible with USB 2.0
- UVC (USB video class) 1.1
- UAC (USB audio class) 1.0
Control
- IR remote control
- VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
- Remote side : VISCA over IP, IP (RJ45)
- UVC/UAC plug-and-play
- WebUI : Browser IP access via Chrome (does not support Internet Explorer)
- PTZApp 2
Mount
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
System Requirements
- Windows® 7/10/11
- Mac OS X 10.4 or later
- Google Chromebox 3 version 94.0.4606.114 or later
PC Hardware Requirement
- 3.2 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB2.0 port
Webpage Browser Requirement
- Chrome : Version 76.x or above
- Firefox : Version 69 or above
- IE : Not support
Power Supply
- AC 100V ~ 240V, 50/60 Hz
- Consumption : 12V, 5A
Dimensions
- Package dimensions : 259 x 259 x 349 mm
- Package weight : 5.805 kg
- Camera : 150 x 153 x 182 mm/1.83 kg
- Speakerphone : 220 x 181.5 x 49.5 mm/0.85 kg
- Remote control : 200 x 50 x 21 mm/0.09 kg
