Cisco Aironet3800e Dubai

The Aironet 3800 Series supports 802.11ac Wave 2, providing a theoretical connection rate of up to 5.2 Gbps—that’s roughly four times the rate offered by today’s high-end 802.11ac access points.

Description

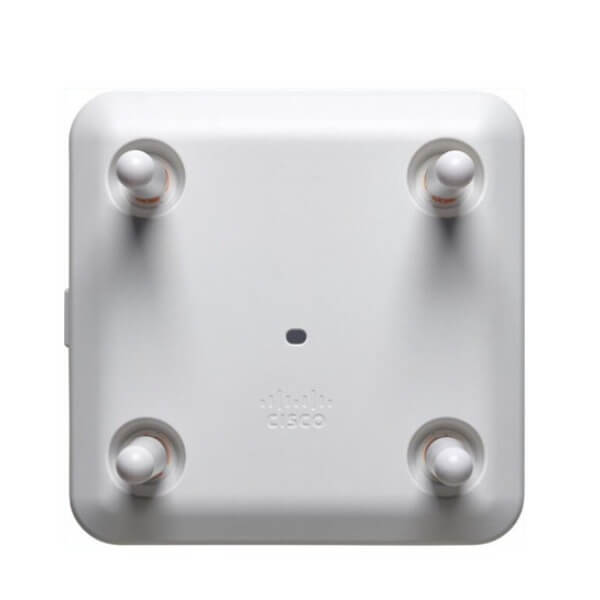

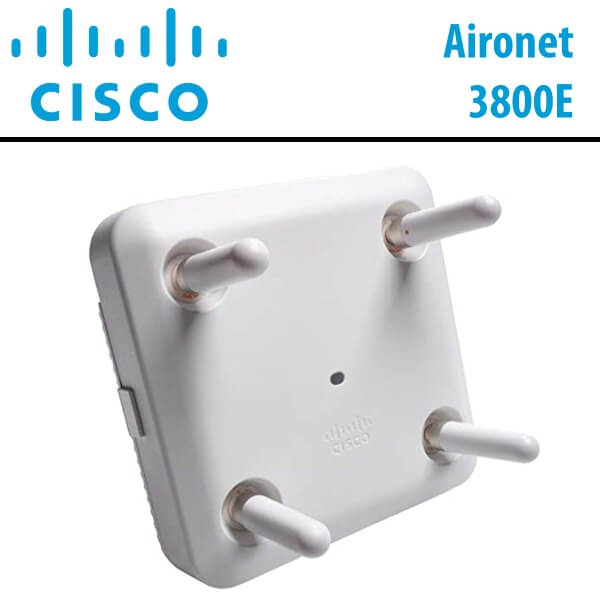

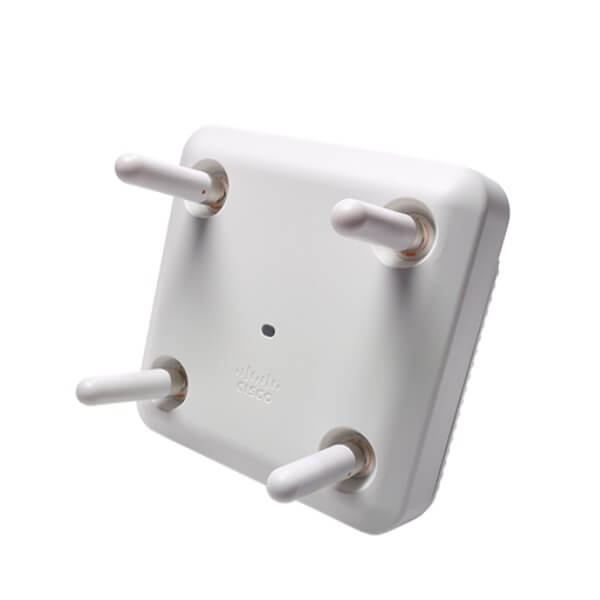

Cisco Aironet3800e Access Point Dubai

For organizations paving the way for the new 802.11ac Wave 2 standard, the Cisco Aironet3800e Dubai Access Point is the perfect solution. The access points go beyond getting ready for the new standard, providing the ultimate in flexibility and versatility.

For large enterprise organizations that rely on Wi-Fi to engage with customers, the Cisco Aironet3800e Dubai is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential.

The Cisco Aironet3800e Dubai Access Point is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.

Features:

802.11ac Wave 2 support-Provides a theoretical connection rate of up to 2.6 Gbps per radio—roughly double the rates offered by today’s high-end 802.11ac access points.

High-density experience-Best-in-class RF architecture that provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. Features include custom hardware in 802.11ac Wave 2 radios, Cisco CleanAir®, Cisco Client Link 4.0, cross-access point noise reduction, and an optimized client roaming experience.

Multiuser Multiple-Input Multiple-Output (MU-MIMO) technology-Supporting three spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.

Multigigabit Ethernet support-Providing multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T(IEEE 802.3bz) cabling.

Technical Specs

Features

  • 2.4 GHz
  • Yes5 GHz Yes
Maximum data transfer rate
2304 Mbit/s
Wi-Fi data rate (max)
2304 Mbit/s
Ethernet LAN data rates
100,1000 Mbit/s
Frequency band
2.412 – 5.7 GHz
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3at
Channels quantity
13 channels

MIMO

MIMO type
  • Multi User MIMO
  • Wi-Fi Multimedia (WMM)/(WME)
  • YesMaximal-Ratio Combining (MRC)
  • YesCyclic Shift Diversity (CSD)Yes
  • Dynamic Frequency Selection (DFS)
Transmitting power
23 dBmW

Security

Security algorithms
802.1x RADIUS,AES,EAP,WPA,WPA2
Ports & interfaces
  • Ethernet LAN (RJ-45) ports 3
  • USB 2.0 ports quantity 1

Power

Power over Ethernet (PoE) *
YesPower consumption (max)
34 W
Design
Product colour
White

On/off switch

LED indicators
Yes
Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155
NoAntenna
Internal
Antenna features
  • Detachable antenna
  • Antennas quantity : 4
  • Antenna gain level (max) : 6 dBi
  • Number of connectors : 4

Performance

Flash memory
256 MB
Internal memory
1024 MB

Operational conditions

Operating relative humidity (H-H)
10 – 90%
Operating temperature (T-T)
-20 – 50 °C
Storage temperature (T-T)
-30 – 70 °C
Operating altitude
0 – 3000 m
Non-operating altitude
0 – 4572 m

Weight & dimensions

Width
220 mm
Depth
220 mm
Height
67 mm
Weight
2.09 kg
