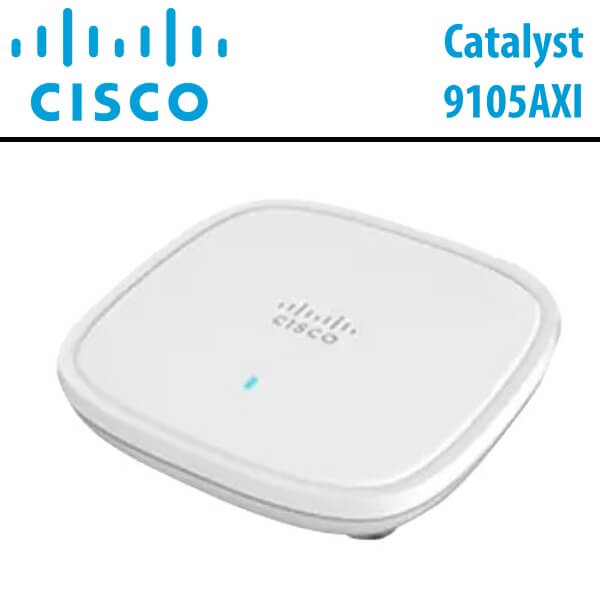

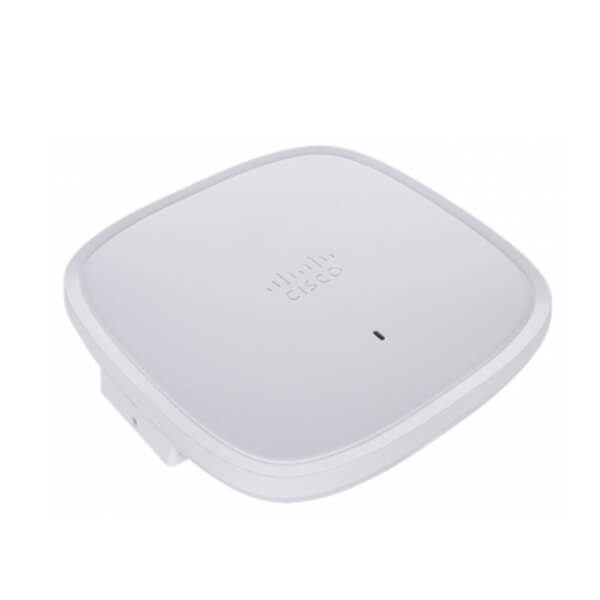

Cisco Catalyst9105AXI Access Point Dubai

Cisco Catalyst9105AXI Dubai comes with ceiling mount for teleworker, branch office, and small to mid-size deployments, and wall mount for hospitality, residence halls and other multi-dwelling units. The most versatile Cisco Catalyst 9105 Access Points goes beyond the Wi-Fi 6 (802.11ax) standard, offers high-density, resiliency as well as network intelligence and IOT Application hosting.

An increasing numbers of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices, which puts your current network at risk for slower speeds. The Catalyst 9105 Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Catalyst 9105 Access Points provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

With the Catalyst 9105 Access Points, you can secure remote workers or the micro-office. The Catalyst 9105 access point is perfect for teleworker deployment because of its small form factor and low power consumption. This easy-to-install teleworker access point provides secure wired and wireless access for organizations with employees who work from home. The Cisco Catalyst9105AXI Dubai is bundled with necessary accessories for easy home deployment.
Cisco Catalyst9105AXI Dubai, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
Cisco User Defined Network, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network.

Features:

Wi-Fi 6 (802.11ax) – Cisco Catalyst9105AXI Dubai comes equipped with the IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.

Uplink/downlink OFDMA- OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.

Downlink MU‑MIMO technology- Supporting two spatial streams, MU-MIMO enables Cisco Catalyst9105AXI Dubai to split spatial streams between client devices to maximize throughput.

Bluetooth 5.0- Cisco Catalyst9105AXI Dubai comes integrated with Bluetooth Low Energy (BLE) 5 radio which enables location-based use cases such as asset tracking, way finding or analytics.

Application Hosting on Catalyst 9100 Access- Application Hosting on Catalyst 9100 Access Points helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks. Utilizing the USB interface, containerized applications and hardware modules can be deployed to reduce cost and complexity. Adding Cisco DNA Center provides workflows and deployment-wide application lifecycle management.

BSS coloring- Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Cisco Catalyst9105AXI Dubai and its clients to differentiate between BSSs, thus permitting more simultaneous transmissions.

Apple Features- Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in iOS 10, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications. At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices. This handshake enables the Cisco WLAN to provide an optimal Wi-Fi roaming experience to Apple devices. Additionally, the Cisco WLAN trusts Apple devices and gives priority treatment for business-critical applications specified by the Apple device. This feature is also known as Fast Lane.

Technical Details

Internet of Things (IoT)
Communications Technology	Bluetooth Low Energy (LE)
Miscellaneous
Included Accessories	Ceiling grid clip, mounting bracket
Compliant Standards	CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN 62209-2, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, EN 62368-1, IEC 62368-1, CISPR 32, EN 55032, EN 61000-6-1:2007, EN 60601-1-2:2015, CAN/CSA-C22.2 No. 60950-1, EN 300 328 V2.1.1, ICES-003:2016 issue 6 Class B, EN 301 489-1 V2.1.1, VCCI-CISPR 32:2016, CNS, AS/NZS 2772, EN 301 489-17 V3.1.1, ARPANSA, EN 55035:2017, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1, QCVN 118:2018, 47 CFR Part 1.1310, 47 CFR Part 2.1091, UL/CUL 62368-1, QCVN 112:2017, Japan Std. 33a, Japan Std. 66, Japan Std. 71
Networking
Form Factor	External
Connectivity Technology	Wireless
Line Coding Format	OFDMA
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method	OFDMA
Frequency Band	2.4 GHz, 5 GHz
Status Indicators	Status
Features	DFS support, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, 2×2 MU-MIMO technology, secure boot, Target Wait Time (TWT), image signing, Cisco Trust Anchor module, BSS Coloring
Encryption Algorithm	AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST, EAP-TLS, EAP-TTLS
Authentication Method	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Manufacturer Warranty
Service & Support	Limited warranty – advance hardware replacement – lifetime – response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	10 – 90% (non-condensing)
General
Device Type	Wireless access point
Ruggedized Design	Indoor
Width	5.9 in
Depth	5.9 in
Height	1.2 in
Weight	11.62 oz
Localization	Colombia, Canada, Chile, Bolivia, Peru, Paraguay, Ecuador, Guatemala, Costa Rica, Panama, Dominican Republic, El Salvador
Expansion / Connectivity
Interfaces	1 x 1000Base-T – RJ-45 1 x management – RJ-45
Power
Power Over Ethernet (PoE) Supported	PoE
Antenna
Antenna	Internal
Directivity	Omni-directional
Software / System Requirements
Software Included	CAPWAP Software Image
