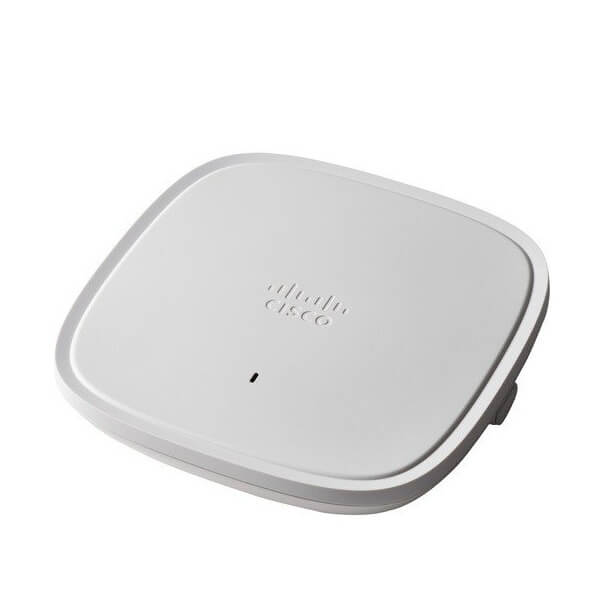

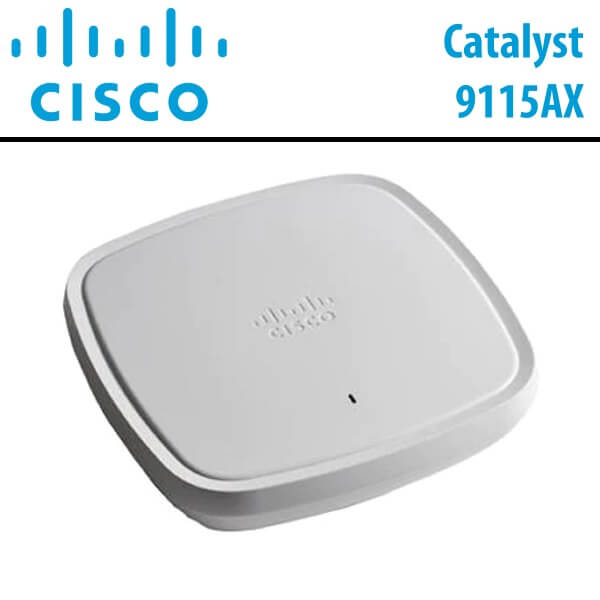

Cisco Catalyst9115AX Access Point Dubai
With the Cisco Catalyst9115AX Dubai, you can secure remote workers or the micro-office. The Catalyst 9105 access point is perfect for teleworker deployment because of its small form factor and low power consumption. This easy-to-install teleworker access point provides secure wired and wireless access for organizations with employees who work from home. The Cisco Catalyst9115AX Dubai teleworker access points are bundled with necessary accessories for easy home deployment.
The Cisco Catalyst9115AX Dubai Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
The Cisco Catalyst9115AX Dubai Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Catalyst 9105 Access Points provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.
Features :
Wi-Fi 6 (802.11ax)- Cisco Catalyst9115AX Dubai comes with the IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.
Uplink/downlink OFDMA- OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.
Downlink MU‑MIMO technology- Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput.
BSS coloring- Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.
Target Wake Time- A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the Cisco Catalyst9115AX Dubai. This offers significant energy savings for battery-operated devices, up to 3x to 4x the savings achieved by 802.11n and 802.11ac.
Intelligent Capture- Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.
Bluetooth 5- Cisco Catalyst9115AX Dubai is integrated with Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics.
Cisco Embedded Wireless Controller- The Cisco Catalyst9115AX Dubai is available with a built-in controller. The Cisco Embedded Wireless Controller on Catalyst 9100 Access Points provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point so there is no added footprint or complexity. And, because it uses Cisco Catalyst 9800 Series code, it’s easy to migrate your network as your needs grow.
Specifications
Description |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4×4 :4 MIMO, A Domain |
Software |
- Cisco Unified Wireless Network Software Release 8.9 or later
- Cisco IOS XE Software Release 16.11 or later
|
Supported wireless LAN controllers |
- Cisco Catalyst 9800 Series Wireless Controllers
- Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
|
802.11n version 2.0 (and related) capabilities |
- 4×4 MIMO with four spatial streams
- Maximal Ratio Combining (MRC)
- 802.11n and 802.11a/g beamforming
- 20- and 40-MHz channels
- PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 Dynamic Frequency Selection (DFS)
- Cyclic Shift Diversity (CSD) support
|
802.11ac |
- 4×4 downlink MU-MIMO with four spatial streams
- MRC
- 802.11ac beamforming
- 20-, 40-, 80-, and 160-MHz channels
- PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
- Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
|
802.11ax |
- 4×4 downlink MU-MIMO with four spatial streams
- Uplink/downlink OFDMA
- TWT
- BSS coloring
- MRC
- 802.11ax beamforming
- 20-, 40-, 80-, and 160-MHz channels
- PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
|
Integrated antenna |
- 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth
- 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
|
External antenna (sold separately) |
- Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
- Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
|
Interfaces |
- 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
- Management console port (RJ-45)
- USB 2.0 (enabled via future software)
|
Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H) |
Access point (without mounting brackets) : C9115I : 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E : 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm) |
Input power requirements |
- 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE )
- Cisco power injector, AIR-PWRINJ6=
- 802.3af PoE
- Cisco power injector, AIR-PWRINJ5= (Note : This injector supports only 802.3af)
- Note : When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2×2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.
|
Environmental |
Cisco Catalyst 9115AXI
- Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
- Non-operating (storage) altitude test : 25˚C, 15,000 ft.
- Operating temperature : 32° to 122°F (0° to 50°C)
- Operating humidity : 10% to 90% (noncondensing)
- Operating altitude test : 40˚C, 9843 ft.
Note : When the ambient operating temperature exceeds 40°C, the access point will shift from 4×4 to 2×2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.
Cisco Catalyst 9115AXE
- Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
- Non-operating (storage) altitude test : 25˚C, 15,000 ft.
- Operating temperature : -4° to 122°F (-20° to 50°C)
- Operating humidity : 10% to 90% (noncondensing)
- Operating altitude test : 40˚C, 9843 ft.
|
System memory |
- 2048 MB DRAM
- 1024 MB flash
|
Available transmit power settings |
2.4 GHz
- 23 dBm (200 mW)
- 20 dBm (100 mW)
- 17 dBm (50 mW)
- 14 dBm (25 mW)
- 11 dBm (12.5 mW)
- 8 dBm (6.25 mW)
- 5 dBm (3.13 mW)
- 2 dBm (1.56 mW)
- -1dBm (0.79mW)
- -4dBm (0.39mW)
5 GHz
- 23 dBm (200 mW)
- 20 dBm (100 mW)
- 17 dBm (50 mW)
- 14 dBm (25 mW)
- 11 dBm (12.5 mW)
- 8 dBm (6.25 mW)
- 5 dBm (3.13 mW)
- 2 dBm (1.56 mW)
- -1dBm (0.79mW)
- -4dBm (0.39mW)
|
Frequency band and 20-MHz operating channels |
A (A regulatory domain) :
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
- 5.745 to 5.825 GHz; 5 channels
|
