Description

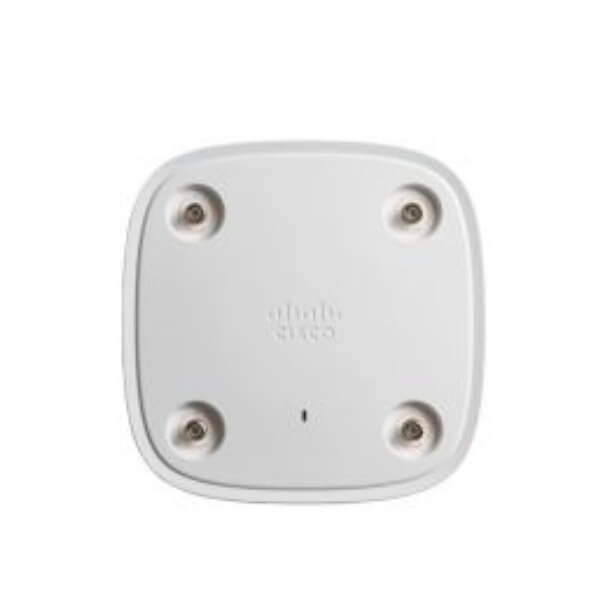

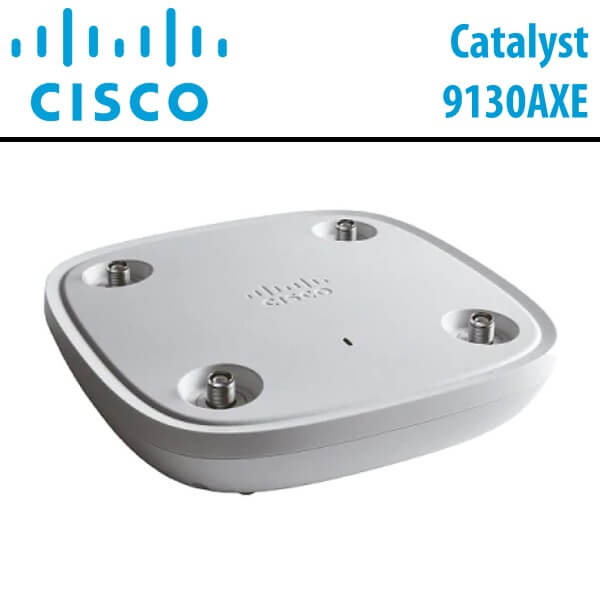

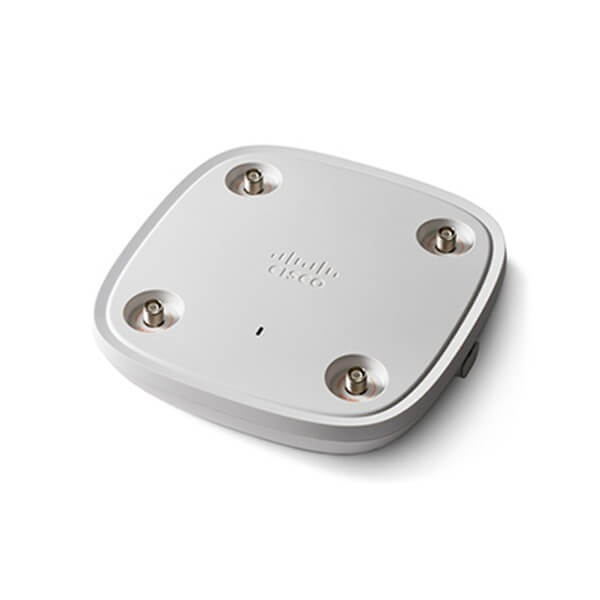

Cisco Catalyst9130AXE Access Point Dubai
Cisco Catalyst9130AXE Dubai Series Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the 9130AXE Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.
Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst9130AX Dubai scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130AXE Series is also a leader in performance, security, and analytics.
The Cisco Catalyst9130AXE Dubai Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
The Cisco Catalyst9130AXE Dubai Access Points support both Orthogonal Frequency-Division Multiple Access (OFDMA) and multiuser multiple input, multiple output (MU-MIMO), delivering more predictable performance for advanced applications and IoT. Additionally, with up to 5 Gbps and NBASE-T and IEEE 802.3bz Ethernet compatibility, the 9130 Series can seamlessly offload network traffic without any bottlenecks.
Features :
- Next-generation Wi-Fi 6 (802.11ax) access points with 4×4 Multiple-Input Multiple-Output (MIMO) and four spatial streams :
- 8×8 :8 single or dual 4×4 :4 on 5 GHz and downlink/uplink Orthogonal Frequency-Division Multiple Access (OFDMA)
- 4×4 :4 on 2.4 GHz with multiuser MIMO (MU-MIMO) and downlink/uplink OFDMA
- Cisco DNA ready
- Cisco RF Application-Specific Integrated Circuit (ASIC) with next-generation Cisco CleanAir and upgradable RF features
- Built-in Bluetooth Low Energy (BLE) radio (Bluetooth 5.0)
- Multigigabit Ethernet (1 Gbps, 2.5 and 5 Gbps)
- USB
- Supports up to 500 Wi-Fi devices
- IoT ready (Zigbee, Thread)
- Internal and external antenna options
- Operating temperature for 9130I : -32° to 122°F (0° to 50°C)
- Operating temperature for 9130E : -4° to 122°F (-20° to 50°C)
Technical Specs
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Miscellaneous | |
| Included Accessories | Low profile bracket, ceiling grid clip |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, CISPR 32, EN 55032, EN 61000-6-1:2007, EN 60601-1-2:2015, CAN/CSA-C22.2 No. 60950-1, EN 300 328 V2.1.1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), secure boot, 8×8 MU-MIMO technology, Target Wait Time (TWT), Cisco Trust Anchor module, 4×4 MIMO technology |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 9.2 in |
| Depth | 9.2 in |
| Height | 1.6 in |
| Weight | 3.77 lbs |
| Localization | Puerto Rico, United States |
| Processor / Memory / Storage | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Expansion / Connectivity | |
| Interfaces |
|
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Antenna | |
| Antenna | External |
| Software / System Requirements | |
| Software Included | Cisco Embedded Wireless Controller software image |
