Cisco CBS250-8PPE2G Dubai

Rating

Cisco CBS250-8PPE2G Dubai

The Cisco CBS250-8PPE2G Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 20 Gb/s switching capacity and 14.88 Mbps forwarding rate.

Add to quote

Description

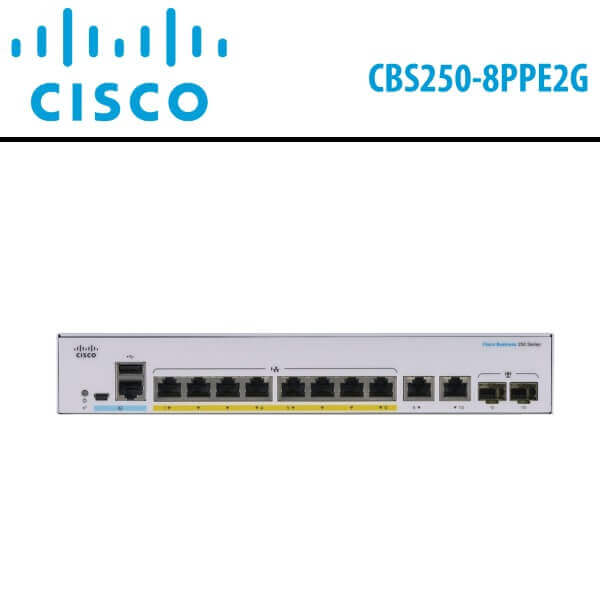

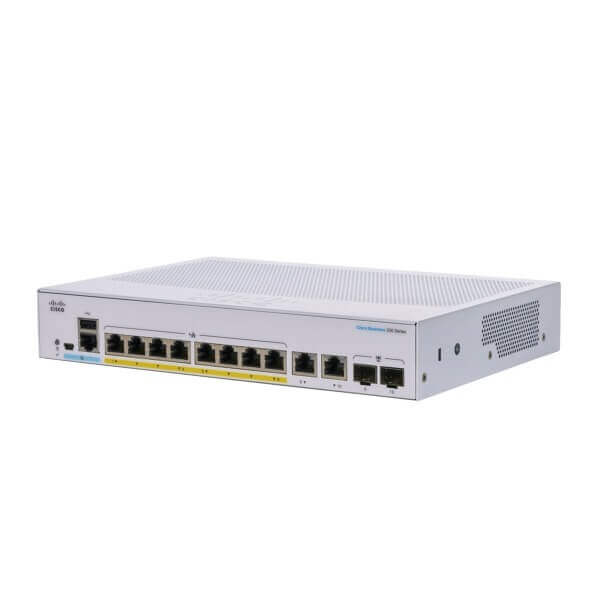

Cisco CBS250-8PPE2G Network Switch Dubai

Cisco CBS250-8PPE2G Dubai enables you to expand your business’s network capacity so as to support a variety of devices. The Cisco CBS250-8PPE2G Dubai is a managed rackmount switch that features 8 PoE+ compliant Gigabit Ethernet ports with a 45W budget to operate compatible devices such as IP security cameras, wireless access points, and VoIP phones. There are also two 1GbE fiber SFP / copper RJ45 combo ports available for high-speed uplink connections. Its extensive Layer 2 and Layer 3 features include link aggregation to create for multi-Gig connections to compatible devices. Its 20 Gb/s switching capacity and 14.88 Mbps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-8PPE2G and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

Features:

Performance

Power Over Ethernet

The 8 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each, with a total budget of 45W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact, 1 RU design, the Cisco CBS250-8PPE2G Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Cisco CBS250-8PPE2G Dubai has support for the Energy Efficient Ethernet (IEEE 802.3az) standard which helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports	8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) 1 x USB Type-A (Console)
Protocols
Layer Services Supported	Layer 2 Support, Layer 3 Support
Supported Protocols	Head-of-Line (HOL) Blocking IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9000 Bytes
MAC Address Table Size	8K
Multicast Groups	255
VLAN IDs	255
Security
Security Features	DoS Attack Prevention RADIUS Authentication Storm Control
Access Control List	512
IP Interfaces	16
Static Routes	32
SNMP Support	1, 2c, 3
Standards
RFC	RFC 4330
Supported IEEE Standards	802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate	14.88 Mpps
Switching Bandwidth	20 Gb/s
Priority Queues	8
Packet Buffer	1.5 MB
Computer
Flash Memory	256 MB
Processor	800 MHz ARM
Memory	512 MB
Electrical
Power Draw	66.02 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	45 W
PoE per Port	30 W
Power Supply Type	Internal
Environmental
Operating Temperature	23 to 122°F / -5 to 50°C
Operating Humidity	10 to 90%
Storage Temperature	-13 to 158°F / -25 to 70°C
Storage Humidity	10 to 90%
General
Cooling System	Passive
Mean Time Between Failures (MTBF)	1,706,649 Hours
Indicator Lights	Link/Activity, PoE, Speed, System
Rack Form Factor	1 RU
Dimensions	10.6 x 7.3 x 1.7″ / 268 x 185 x 44 mm
Weight	3.37 lb / 1.53 kg
