Description

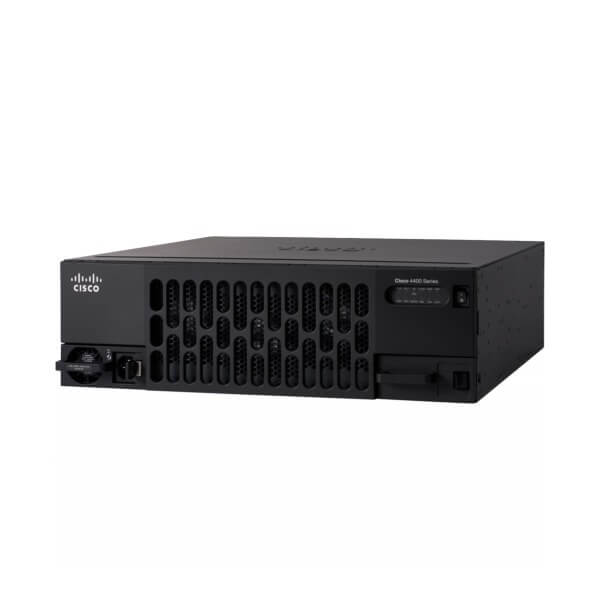

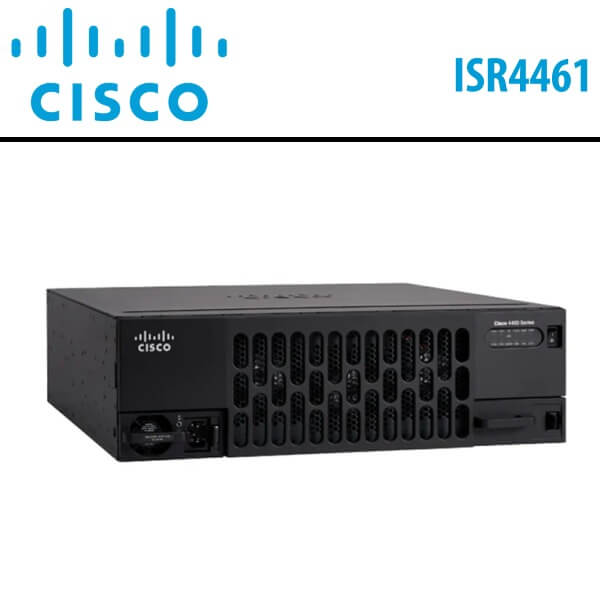

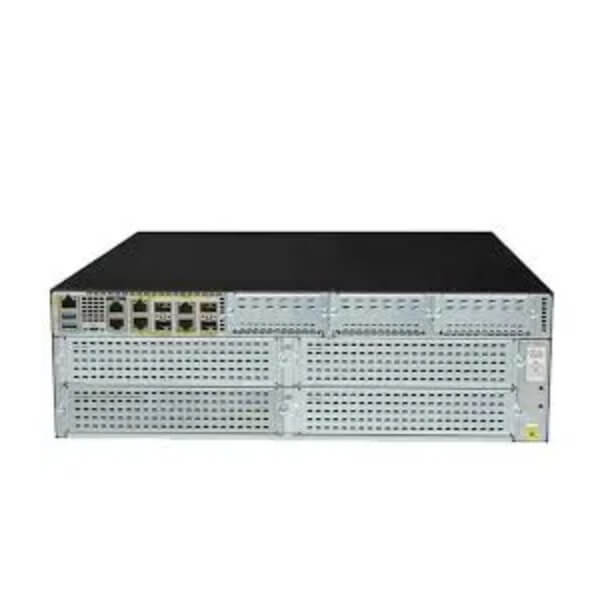

Cisco ISR4461 Integrated Service Router Dubai
ISR4461/K9 is the Cisco ISR4461 Dubai with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). The Cisco ISR4461 Dubai Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, the Cisco ISR4461 Dubai specifically address the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
Features
Predictable performance
Get a high-availability architecture designed for mission-critical branches. The Cisco ISR4461 Dubai delivers high-speed, predictable performance and modularity to connect from most remote locations.
Network services
Deploy key integrated network services for your branch in minutes, virtually or on-premises, without sacrificing performance.
Simplified management
Configure and monitor your network and enforce business policies through Cisco DNA Center and Cisco SD-WAN integrated in the Cisco ISR4461 Dubai. Simplify network automation and turn hours of work into minutes.
Threat protection
Protect your branch site across the LAN and WAN and in the cloud with security integrated into the Cisco ISR4461 Dubai. You no longer need a separate security appliance.
Cisco Software Defined WAN
Cisco SDWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. SDWAN-enabled routers like the Cisco ISR4221 Dubai dynamically route traffic across the “best” link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links – control that you need as your branches conduct greater volumes of mission-critical business.
Cisco Converged Branch Infrastructure
The Cisco ISR4461 Series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.
Technical Specs
Technical Specifications |
ISR4461/K9 |
Aggregate Throughput |
1.5Gbps |
Total onboard WAN or LAN 10/100/1000 ports |
4 |
Total onboard WAN or LAN 10Gbps ports |
2 |
RJ-45-based ports |
4 |
SFP-based ports |
4 |
Enhanced service-module slots |
3 |
Doublewide service-module slots |
2 |
NIM slots |
3 |
OIR (all I/O modules) |
Yes |
Onboard ISC slot |
1 |
Dimensions (H x W x D) |
3.5 x 17.25 x 18.5 in (88.9 x 438.15 x 469.9 mm) |
Rack height |
2 Rack Units (2RU) |
