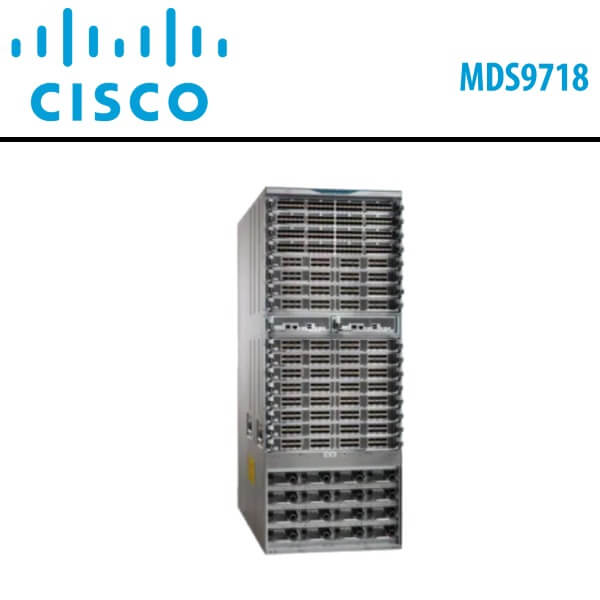

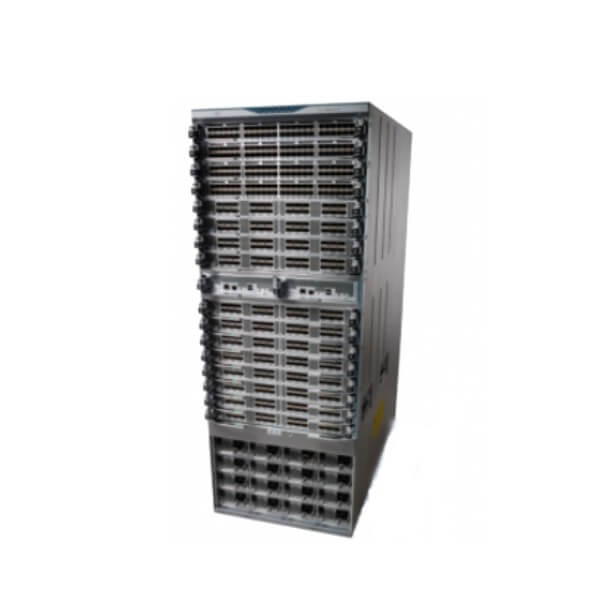

Cisco MDS9718 Multilayer Director Dubai

The Cisco MDS9718 Dubai Multilayer Director has the industry’s highest port density for a SAN director, with 768 line-rate 16-Gbps Fiber Channel ports. It is ready for future support for 768 line-rate 32-Gbps Fiber Channel ports. The MDS 9718 also supports the Cisco 24-port 40-Gbps Fiber Channel over Ethernet (FCoE) line card. It is designed for deployment in midsize to large enterprises. The Cisco MDS9718 Dubai enables SAN consolidation and collapsed-core solutions for large enterprises, thereby reducing the number of managed switches and leading to easy-to-manage solutions, providing more front panel ports by reducing the number of ports used on Inter-Switch Links (ISLs), and offering room for future growth.

The Cisco MDS9718 Dubai addresses the stringent storage requirements for large virtualized data centers. As a director-class SAN switch, the MDS 9718 uses the same operating system and management interface as other Cisco data center switches. It brings intelligent capabilities to a high-performance, protocol-independent switch fabric. You gain uncompromising availability, security, and scalability; simplified management; and the capability to flexibly integrate new technologies. The MDS 9718 lets you transparently deploy unified fabrics with Fiber Channel and FCoE connectivity for low total cost of ownership (TCO).

Features:

The Cisco MDS9718 Dubai is designed to meet the performance and scalability needs of the most demanding SANs while also lowering the TCO. It offers:

Up to 48-Tbps front-panel Fibre Channel (FC) switching capacity
1.5-Tbps front-panel FC performance per slot
Up to 768 32-Gbps autosensing line-rate FC ports; 10-Gbps FCoE ports per chassis; or 24 ports of 40-Gbps FCoE
Up to 128 10-Gbps FCIP ports
Integrated analytics on 32G module

Lower TCO and Outstanding Investment Protection

The Cisco MDS9718 Dubai is optimized for the data center and delivers a lower TCO. It features:

Very high-density 32-Gbps FC and 10/40-Gbps FCoE connectivity
Investment protection for more than a decade
True front-to-back air flow for hot-cold aisle deployments

Designed to grow with your storage environment, the MDS 9718 provides smooth migration, common sparing, and exceptional investment protection.

Enterprise-Class Availability

The Cisco MDS9718 Dubai provides the industry’s first redundancy on all major hardware components, including the supervisor and fabric modules as well as the power supplies.

It is available in a software architecture through non-disruptive software upgrades, automatic process restarts, and stateful supervisor failover.

Converged Networks to Simplify SAN Connectivity

Using the 9718 director, you can easily connect a Cisco MDS-based SAN infrastructure to large converged networks with multihop FCoE. The operating system and management interface are the same as all other Cisco data center switches.

Specifications

Minimum Software Requirements

Cisco MDS 9000 NX-OS Software Release 7.3 or later

Port Types

48-port Fibre Channel module supporting 4/8/16/32-Gbps autosensing (optionally configurable) Fibre Channel ports
48-port FC module supporting 2/4/8/16-Gbps autosensing (optionally configurable) and 10-Gbps fixed rate FC ports
48-port FCoE module with 10-Gbps FCoE ports
24-port FCoE module with 40-Gbps FCoE ports
24/10 SAN extension module with 24 ports at 2/4/8/10/16 Gigabit Ethernet Fiber Channel, 8 ports at 1/10 GE, and 2 ports at 40 GE for FCIP
NVMe over Fibre Channel Support

Advanced Functionality
