Cisco Nexus31108TCV-32T Dubai

Rating

Cisco Nexus31108TCV-32T Dubai

The Cisco Nexus31108TCV-32T Dubai platform provides wire-rate Layer 2 and 3 switching of up to 2.56 terabits per second (Tbps) and up to 1.4 billion packets per second (bpps) on all ports.

Description

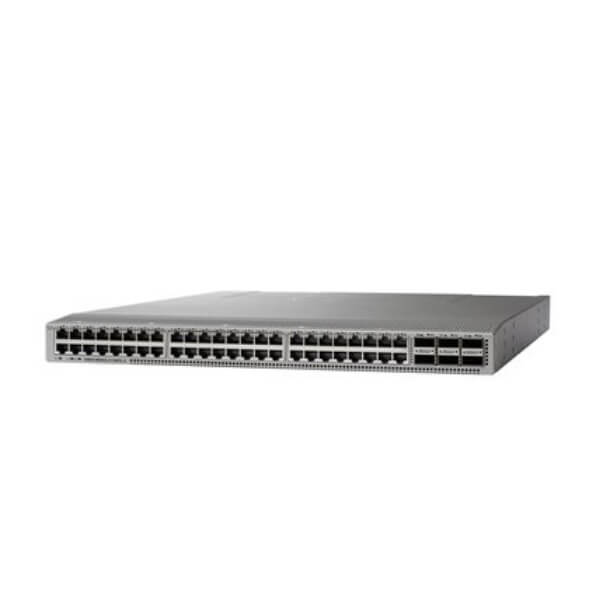

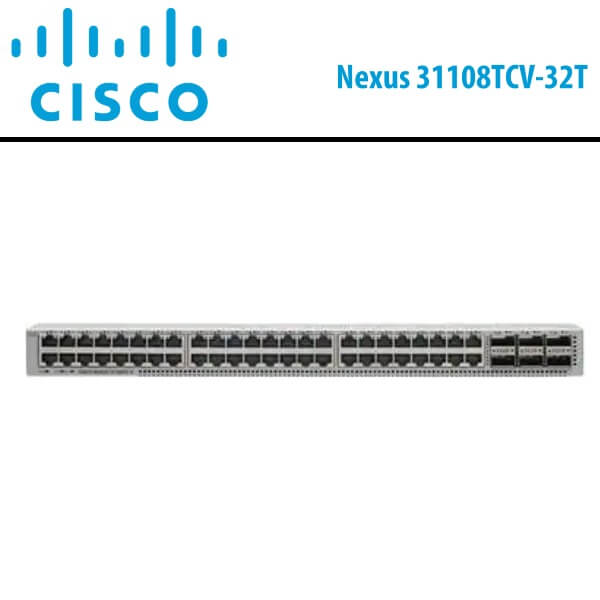

Cisco Nexus31108TCV-32T Network Switch Dubai

The Cisco Nexus31108TCV-32T Dubai switch platform is the latest addition to the industry’s widely deployed Cisco Nexus 3100 platform. The Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, High-Performance Computing (HPC), and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/40/100-Gbps connectivity with improved port density and scalability in compact 1-rack-unit (1RU) form factors.

Features:

High performance and scalability

  • The Cisco Nexus31108TCV-32T Dubai platform provides wire-rate Layer 2 and 3 switching of up to 2.56 terabits per second (Tbps) and up to 1.4 billion packets per second (bpps) on all ports.
  • The Cisco Nexus 3100-V platform delivers ultra-low nominal latency (approximately 650 nanoseconds [ns]), which allows customers to implement high performance infrastructure for High-Frequency-Trading (HFT) workloads.

Line-rate Virtual Extensible LAN (VXLAN) routing

  • VXLAN is designed to provide the same Ethernet Layer 2 network services as VLAN does today, but with greater extensibility and flexibility.
  • The Cisco Nexus31108TCV-32T Dubai platform offers native line-rate VXLAN routing.
  • The Border Gateway Protocol (BGP) Ethernet Virtual Private Network (EVPN) control plane provides scalable multitenancy and host mobility .

Enhanced buffer for applications

  • The Cisco Nexus31108TCV-32T Dubai platform offers 16 MB of shared buffer space.
  • In today’s data center, application teams require the network to be flexible and capable of handling the rapid growth of applications. The Cisco Nexus 3100-V platform provides deep shared buffers (16 MB) to absorb bursts of traffic and a wide variety of applications, such as multicast feeds, voice traffic, video traffic, and healthcare applications.
  • These deep buffers also provide flexibility to expand your network as your needs change. The shared buffers are also instrumental in situations in which one or more servers are consuming most of the bandwidth in highly oversubscribed environments.

Specifications

Product Code N3K-C31108TCV-32T
Physical
  • 1RU fixed form factor
  • Cisco Nexus 31108TCV-32T
    • 32 (and up to 48) RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps
    • 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet
  • Redundant fans (3+1)
  • 2 redundant power supplies
  • Management, console, and USB flash-memory ports
Performance
  • 2.16-Tbps switching capacity and forwarding rate of up to 1.2 bpps for 31108PC-V and 31108TC-V
  • Line-rate traffic throughput (both Layer 2 and 3) on all ports
  • Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Physical dimensions
(H x W x D)
1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
Weight 22.0 lb (10 kg)
