Cisco Nexus31108TCV Dubai

he Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, High-Performance Computing (HPC), and cloud computing environments.

Description

Cisco Nexus31108TCV Network Switch Dubai

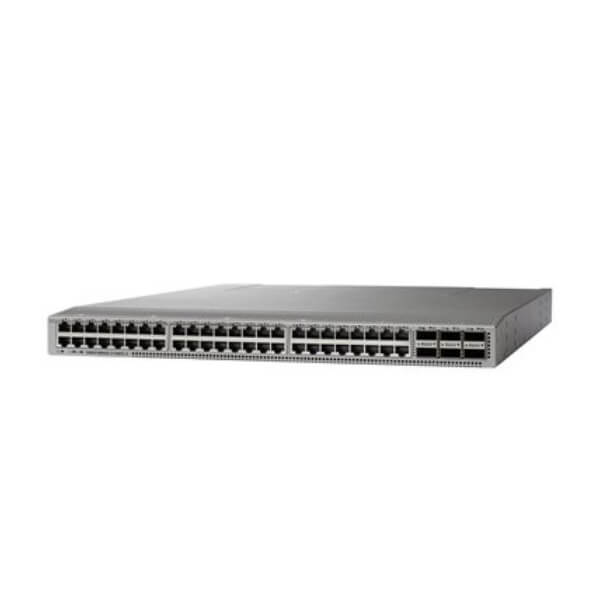

The Cisco Nexus31108TCV Dubai is a 48-port, 1/10-Gbps switch with 40/100-Gbps uplinks. Ideal for building cost-effective, power-efficient data centers, this compact switch supports DevOps toolsets. It offers flexibility, mobility, and scale for cloud and service providers.

The Cisco Nexus 3100-V switch platform is the latest addition to the industry’s widely deployed Cisco Nexus 3100 platform. The Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, High-Performance Computing (HPC), and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/40/100-Gbps connectivity with improved port density and scalability in compact 1-rack-unit (1RU) form factors.

Features and Capabilities

High Performance and Flexibility

  • All ports support 1,10, 40, 100 Gbps for maximum flexibility
  • Up to 2.5 Tbps and up to 1.4 billion packets per second (Bpps)
  • The design is optimized for ultra-low, nominal latency (approximately 650 nanoseconds)
  • Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility

Feature-Rich

  • Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation
  • Integrates with Cisco Cloud Network Manager and XML management tools
  • Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker

Simple Operations

  • Touchless boot-up with Power-On Auto-Provisioning (POAP)
  • Configuration management DevOps tools support Puppet, Chef, and Ansible
  • Advanced programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting

Specifications

  • 1-rack-unit (1RU) fixed form factor
  • 16 MB of deep-shared buffer
  • 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps
  • 6 Quad Small Form Factor Pluggable (QSFP) ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each, or 100 Gigabit Ethernet
  • 2.8 Tbps switching capacity
Product Code N3K-C31108TC-V
Physical
  • 1RU fixed form factor
  • Cisco Nexus 31108TC-V
    • 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps
    • 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet
  • Redundant fans (3+1)
  • 2 redundant power supplies
  • Management, console, and USB flash-memory ports
Performance
  • 2.16-Tbps switching capacity and forwarding rate of up to 1.2 bpps for 31108PC-V and 31108TC-V
  • Line-rate traffic throughput (both Layer 2 and 3) on all ports
  • Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Physical dimensions
(H x W x D)
1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
Weight 22.0 lb (10 kg)
