Cisco Nexus3550F Dubai

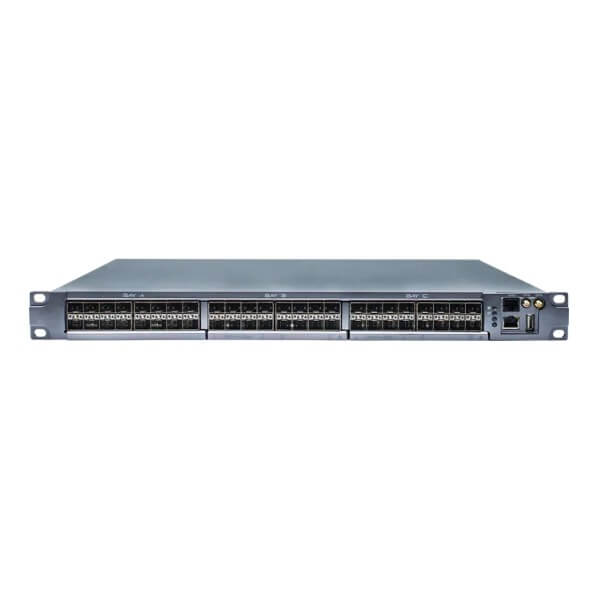

The Cisco Nexus3550F Dubai Fusion is a compact, yet powerful networking platform designed specifically for low latency applications. The device features up to 48 ports of 10G Ethernet connectivity in a single rack unit form factor.

Description

Cisco Nexus3550F Network Switch Dubai

The Cisco Nexus3550F Dubai Series provides programmable platform capabilities, fast layer 2 and 3 switching, high-speed multiplexing, precision timestamping and high-density layer 1 switching to power your ultra-low latency network applications.

The Cisco Nexus3550F Dubai Fusion is a compact, yet powerful networking platform designed specifically for low latency applications. The device features up to 48 ports of 10G Ethernet connectivity in a single rack unit form factor.

The Cisco Nexus 3550-F High Precision Timestamping Switch is a network tapping, aggregation, and monitoring solution, optimized for high-performance, low-latency networks. The Cisco Nexus3550F Dubai incorporates Cisco industry-leading HPT time-stamping technology, for 70-picosecond (70ps) timestamps that are embedded in every packet. This makes the Cisco Nexus 3550-F HPT the highest-precision network aggregation and monitoring solution available on the market today. The switch also offers high-quality time synchronization to Pulse-Per-Second (PPS), GPS, and Precision Time Protocol (PTP) sources, ensuring that every packet is globally synchronized as well as precisely timestamped.

Features :

Ultra-low latency networking

Cisco Nexus3550F Dubai platforms and switches are designed and optimized for ultra-low latency applications.

Software-Defined Hardware

The Nexus 3550-T platform provides the performance characteristics of hardware plus FPGA agility and programmability of software.

Modular switch architecture

The Nexus 3550-F modular architecture provides the flexibility to scale connectivity options and implement FPGA device upgrades and functionality features.

High density layer 1 switching

The Nexus 3550-H are high-density layer 1 switches for date monitoring and distribution

Ease of use and manageability

The Cisco Nexus3550F Dubai products use a custom operating system and Command Line Interface (CLI), designed specifically to address the needs of layer 1 switching and low latency FPGA configuration. Every command available on the CLI is also available via a remote JSON RPC API making this device easy to operate and manage at scale.

Technical Specs

Latency

  • L1 Tap/Patch : 3ns minimum – 5ns maximum
  • FastMux : 39ns minimum – 48ns maximum
  • Mux : 92ns minimum – 107ns maximum
  • Mux (switch) : 86ns minimum – 102ns maximum

Statistics

  • Packet counters (RX, TX, dropped etic)
  • Per port status LEDs
  • Live packet dump
  • SFP diagnostics (light levels, temps, etc.)
  • SNMP, local and remote syslog
  • Time series logging to InfluxDB

Connectivity

  • 3x 16 SFP+ line cards, up to 48 ports
  • 3x 4QSFP line cards, up to 12 ports (48x10G)
  • SFP+ Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX)
  • SFP+ Copper Direct Attach
  • SMA for PPS in/out
  • SMA for GPS in
  • RJ45 management port
  • RJ45 Industry standard serial port
  • USB (for firmware upgrades)

Management

  • CLI via serial, SSH, and telnet
  • JSON RPC API for all CLI commands
  • Automatic configuration via DHCP
  • TACACS+ and multiuser support
  • ACLs on management interface
  • FW updates via SFTP, TFTP, HTTP, and USB
  • Onboard BASH and Python scripts
  • Onboard Cron jobs
  • Time sync via PPS, GPS, PTP, and NTP

General

  • 19” 1RU, rack mount
  • Weight  : 11kg (24lbs)
  • Dual, hot-swappable supplies
  • Standard : AC 90-264V, 47-64 Hz, included IEC C13-C14 cables
  • Optional : DC 40-72V
  • Maximum consumption : 150W
  • Dual hot-swappable fan modules
  • Optional airflow direction
  • Operating temperature : -5 °C to 45 °C
  • Storage temperature : -40 °C to 70 °C
  • Operating Relative Humidity : 5% to 90% (non-condensing)
  • Storage Relative Humidity : 5% to 95% (non-condensing)
