Cisco Nexus7000-4Slot Dubai

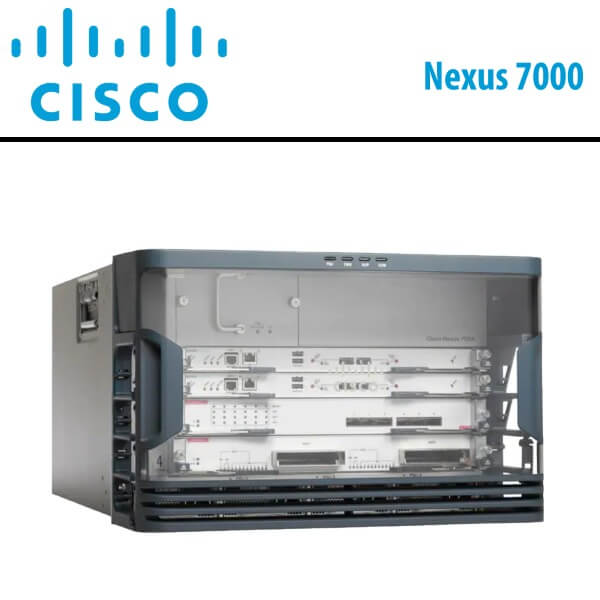

The Cisco Nexus 7000 4-Slot Switch chassis has two supervisor module slots, two I/O module slots, and purpose-built integrated cable management. The 4-slot chassis does not have fabric modules, and the backplane capacity is determined by the I/O modules.

Description

Cisco Nexus7000-4Slot Chassis Network Switch Dubai

Cisco Nexus7000-4Slot Dubai is a modular chassis that comes equipped with two I/O module slots that support up to 96 x 1 and 10 Gigabit Ethernet ports, 12 x 40 Gigabit Ethernet ports and 4 x 100 Gigabit Ethernet ports. It is designed to meet the needs of small to medium-size data centers, high-speed core deployments, access- and aggregation-layer deployments, co-locations as well as smaller operation zones.

The Cisco Nexus 7000 4-Slot  Dubai chassis also has two dedicated supervisor slots to provide full redundancy and high availability. The 4-slot chassis does not require fabric modules. The local I/O module fabrics are connected back to back to form a two-stage crossbar that interconnects the I/O modules and the supervisor engines. The backplane capacity is determined by the installed I/O modules.

The Cisco Nexus 7000 4-Slot Switch chassis has two supervisor module slots, two I/O module slots, and purpose-built integrated cable management. The 4-slot chassis does not have fabric modules, and the backplane capacity is determined by the I/O modules. Power supplies and fan tray are accessible from the front.

Quick Features:

  • Fully redundant system architecture with dual supervisors, redundant power supplies, and fans
  • Lossless, non disruptive In-Service Software Upgrades (ISSUs) for zero service downtime
  • Graceful system operations to minimize the effect of upgrades and other maintenance
  • High AvailabilityThe Cisco Nexus 7000 4-Slot Dubai Switch provides:
    • Fully redundant system architecture with dual supervisors, redundant power supplies, and fans
    • Lossless, non disruptive In-Service Software Upgrades (ISSUs) for zero service downtime
    • Graceful system operations to minimize the effect of upgrades and other maintenance

    Scalability

    Protect your infrastructure investments using the Cisco Nexus7000-4Slot Dubai with the following features:

    • 1.92 Tbps of switching capacity to scale for future growth demands
    • Highly scalable modular NX-OS features such as Fabric Path and Fabric Extender (FEX) technology

    Transport Flexibility

    This switch offers transport flexibility with:

    • Support for 1, 10, 40, and 100 Gigabit Ethernet interfaces
    • Optics options from short-range to long-range DWDM
    • Fibre Channel over Ethernet (FCoE) for LAN and SAN consolidation

Technical Details

General Information
Category Network switches
Description Cisco Nexus 7000 Series 4-Slot Chassis – Switch – rack-mountable
Manufacturer Cisco Systems
MSRP $18,019.04
UNSPSC 43222612
Main Specifications
Dimensions & Weight / Depth 62.2 cm
Dimensions & Weight / Height 30.9 cm
Dimensions & Weight / Weight 20 kg
Dimensions & Weight / Width 44.1 cm
Header / Brand Cisco
Networking / Form Factor Rack-mountable
Networking / Type Switch
Packaged Quantity 1
Service & Support / Type 1-year warranty
Dimensions & Weight
Depth 62.2 cm
Height 30.9 cm
Weight 20 kg
Width 44.1 cm
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
General
Device Type Switch
Enclosure Type Rack-mountable 7U
Features Modular design
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – 1 year – response time: 10 days
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386
Power
Max Supported Qty 2
Power Device Internal power supply (not installed) – hot-plug
