Description

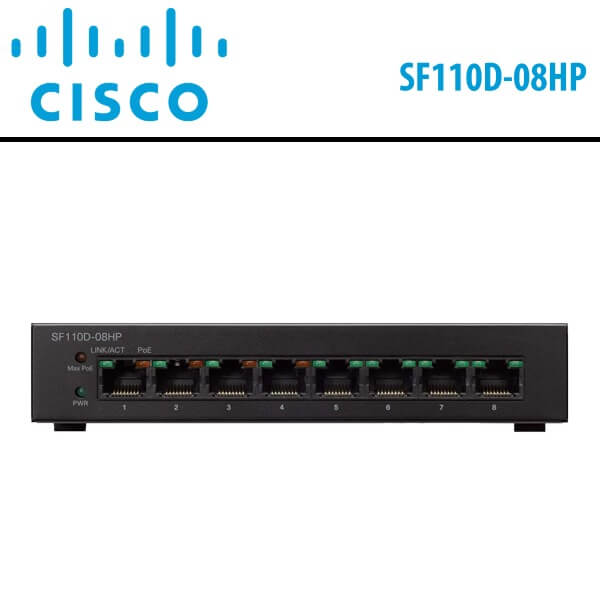

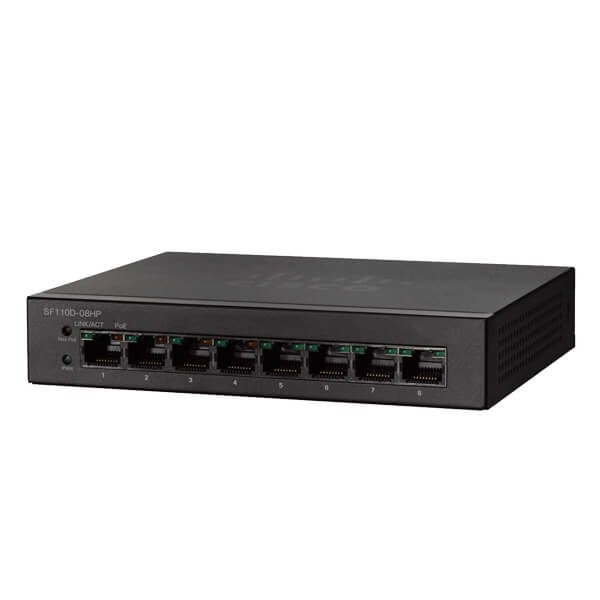

Cisco SF110D-08HP Network Switch Dubai
Expand your business’s network to support additional computers and a variety of other connected Ethernet devices with the Cisco SF110D-08HP Dubai 110 Series 8-Port 10/100 Mb PoE+ Compliant Unmanaged Network Switch. This rackmount network switch features eight 10/100 Mb Ethernet ports, four of which are PoE compliant with a 32W budget, transferring data and power with compatible devices such as security cameras, VoIP phones, and access points. With its unmanaged plug-and-play design, no additional configuration is required. The Cisco SF110D-08HP Dubai also has a 1.6 Gb/s switching capacity and a forwarding capacity of 1.2 Mpps, which helps to ensure smooth data transfers as packets efficiently move through the switch. Other features include 128MB of RAM and flash memory, in addition to a passively cooled fanless design that allows the SF110D-08HP 110 Series network switch to operate silently in your office, server room, or rackmount closet.
Features
High Performance
Reduced Energy Costs
Support for Advanced Technologies
Specifications
Interfaces | |
Ports |
|
Protocols | |
Supported Protocols | Head-of-Line (HOL) Blocking |
Queuing | Weighted Round Robin (WRR) |
Jumbo Frames Support | 9216 Bytes |
Security | |
Security Features | Kensington Lock Support |
Standards | |
Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3u, 802.3x, 802.3z |
Performance | |
Forwarding Rate | 1.2 Mpps |
Switching Bandwidth | 1.6 Gb/s |
Computer | |
Flash Memory | 128 MB |
Memory | 128 MB |
Electrical | |
DC Input Power | 48 VDC at 1.25 A |
PoE Power Budget | 32 W |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 10 to 90% (Non-Condensing) |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Storage Humidity | 5 to 90% (Non-Condensing) |
Certifications | CE, CSA, FCC-A, UL, as per Manufacturer |
General | |
Cooling System | Passive |
Indicator Lights | Diagnostic, Link/Activity, System/Power |
Dimensions | 6.3 x 5.1 x 1.2″ / 160 x 129 x 30 mm |
Weight | 1.19 lb / 0.54 kg |
Packaging Info | |
Package Weight | 2.815 lb |
Box Dimensions (LxWxH) | 13.15 x 9.3 x 2.3″ |
