Description

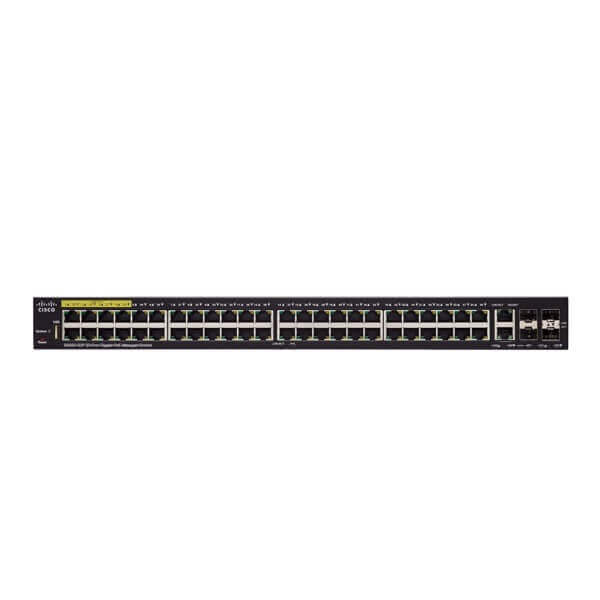

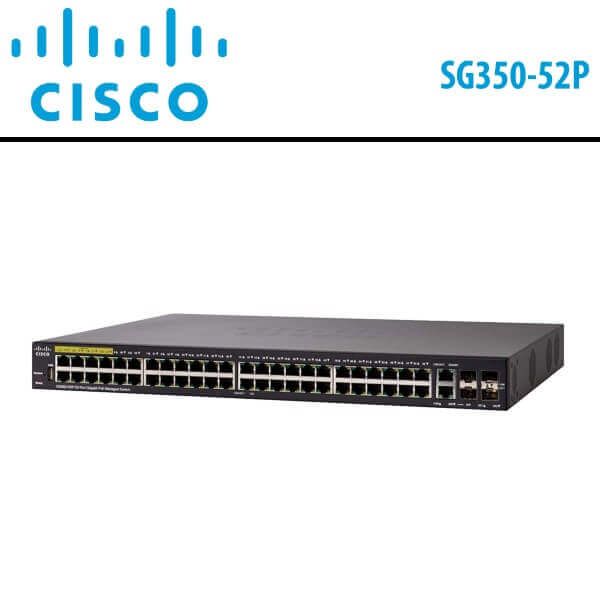

Cisco SG350-52P Network Switch Dubai
With the ability to deliver data, voice, and video services, the Cisco SG350-52P Dubai comes equipped with 52 Gigabit network ports, including two GbE combo ports supporting fiber connectivity and two SFP slots. The non-fiber ports are also PoE+ compliant supporting the 802.3af and 802.3at PoE network standards with a maximum PoE power budget of up to 375W.
The Cisco SG350-52P Dubai switch can be configured using either a graphical interface or with a command-line interface. To access other devices on the network from one central location, admins can take advantage of SNMP support. Additionally, your network can be secured using various advanced security features including SSL encryption, access control lists, 802.1X port security, advanced defense mechanisms, IPv6 support, uniform MAC addressed-based security, and storm control.
Features :
Advanced PoE capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost. The switch supports 802.3af PoE, 802.3at PoE+, and 60 Watt PoE.
Cisco uses NBASE-T technology to get more out of your existing infrastructure, so your network can meet consumer demands for increased bandwidth and speeds without a large initial investment. Utilizing your existing cabling infrastructure, Multigigabit Ethernet technology enables intermediate data rates of 2.5 and 5 Gbps to ease the jump between traditional rates of 1 Gbps and 10 Gbps. These intermediate rates run on most installed cables and preserve older UTP wiring, which is suitable for 802.11ac wireless LAN applications. The technology also supports Power over Ethernet (PoE) forms, including PoE+ and 60W PoE. Cisco Multigigabit Ethernet switches help you avoid having to run multiple cables between switches and access points and let your networks accommodate next-generation traffic speeds and data rates.
Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports, and Voice Services Discovery Protocol (or VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice VLAN and QoS parameters and then propagate them out to the phones on the ports, where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.
As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco SG350-52P Dubai can support the transition to the next generation of networking and operating systems such as Windows 8, Vista, and Linux. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco 350 Series switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.
The Cisco SG350-52P Dubai enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static LAN Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security.
The Cisco SG350-52P Dubai integrates a variety of power-saving features that provide an extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. Cisco 350 Series switches feature :
- Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
- The latest application-specific integrated circuits (ASICs), which use low-power 65/40-nanometer technology and low-power, high-performance ARM CPUs.
- Automatic power shutoff on ports when a link is down.
- LEDs that can be turned off to save power.
- Embedded intelligence to adjust signal strength based on the length of the connecting cable.
The Cisco SG350-52P Dubai also offers mini gigabit interface converter (mini-GBIC) expansion slots that give you the option to add fiber-optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment and to easily connect switches on different floors or across the business.
Technical Specs
| Brand |
CISCO |
| Model |
SG350-52P-K9-NA |
| Format & Standards |
| Format |
Rack-mountable / Desktop |
| Network Management Type |
Managed |
| Ports & Interface |
| Primary Ports |
52 x Gigabit Ethernet Network |
| Primary Port Speed |
10/100/1000Mbps |
| Details |
| Protocols |
TCP/IP |
| POE |
Yes |
| Layer |
3 |
| Power |
- Power Source : Power Supply
- Redundant Power Supply Supported : No
|
| Dimensions & Weight |
| Weight |
15.05 |
| Packaging |
| Package Contents |
- SG350-52P 52-Port Gigabit PoE Managed Switch
- Power Cord (Power Adapter for Desktop SKUs)
- Mounting Kit
- Console Cable
- Quick Start Guide
|
