Description

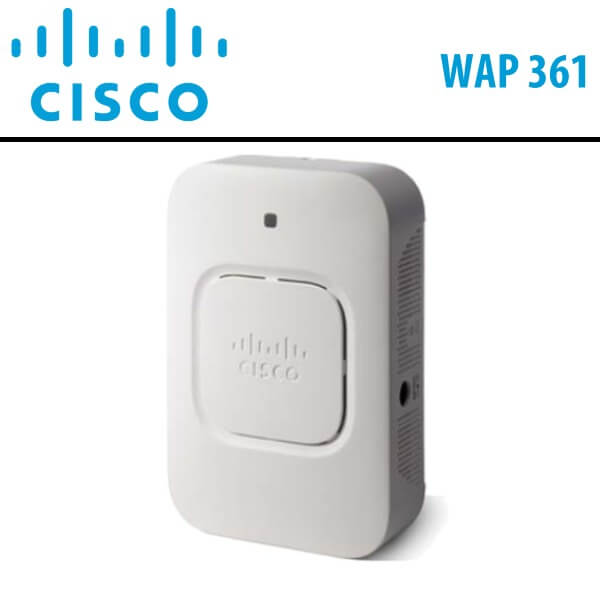

Cisco WAP361 Access Point Dubai

The Cisco WAP361 Dubai is a powerful Wireless access point that lets you connect more devices either wired, or wirelessly and also run more apps. It keeps your network running efficiently without incurring high costs. WAP361 is the perfect solution for cost-sensitive hospitality or classroom deployments.

Providing a speed of up to 1.2 Gbps, the Cisco Wi-Fi Dubai enables businesses to enhance productivity and run next-generation applications without any degradation. The Cisco WAP361 Dubai offers a 5-port switch. One powered-device port allows the access point to power an IP device. One power-sourcing-equipment (PSE) port allows a backbone switch to power the access point.

Quick Features :

Cisco WAP361 Dubai offers concurrent dual-band radio support up to 867 Mbps on a 5.0-Ghz radio and 300 Mbps on a 2.4-Ghz radio to increase capacity and coverage
2×2 MIMO with two spatial streams on both 5.0 GHz and 2.4 GHz allows for maximum performance
Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points, without requiring additional hardware
Cisco WAP361 Dubai has a 5-port Gigabit Ethernet LAN switch supports both PoE powered device (PD) and powered sourcing equipment (PSE) so that IP devices can be powered and the access point can be powered by the backbone switch
Cisco Wi-Fi Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, help protect sensitive business information
Captive portal support facilitates highly secure, customized guest access with multiple rights and roles
Cisco WAP361 Dubai offers simple installation and an intuitive web-based configuration and wizard facilitate fast, simple deployment and setup in minutes
Cisco Wi-Fi Dubai has built-in support for PoE allows for easy installation without expensive additional wiring
A sleek design with multiple internal antennas and a versatile mounting kit allows for mounts directly to an electrical or data junction box
Intelligent quality of service (QoS) prioritizes network traffic to help keep critical network applications running at top performance
Cisco WAP361 Dubai has power-saving sleep mode and port control features help to increase energy efficiency
Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network
Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades
A limited lifetime hardware warranty provides peace of mind

Technical Specs

Specifications	Description
Standards	IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af/at, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type	Category 5e or better
Antennas	Internal antennas optimized for installation on a wall or ceiling
Operating system	Linux
Physical Interfaces
Ports	5 – 10/100/1000 Ethernet, with support for 802.3af/at PoE, power port for AC adapter (not included)
Power supply	802.3af/at PoE and external 48V/1.25A DC power adapter (not included)
Buttons	Reset button
Lock slot	Slot for Kensington lock
LEDs	One multi-function LED
Physical Specifications
Physical dimensions (W x D x H)	6.5 x 4.33 x 1.8 in. (165 x 110 x 45.75 mm)
Weight	1.06 lbs or 480 g
Network Capabilities
VLAN support	Yes
Number of VLANs	1 management VLAN plus 16 VLANs for SSIDs
802.1X supplicant	Yes
SSID-to-VLAN mapping	Yes
Auto-channel selection	Yes
Spanning Tree	Yes
Load balancing	Yes
IPv6	Yes IPv6 host support IPv6 RADIUS, syslog, Network Time Protocol (NTP)
Layer 2	802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
Security
WPA, WPA2	Yes, including Enterprise authentication
Access control	Yes, management access control list (ACL) plus MAC ACL
Secure management	HTTPS
SSID broadcast	Yes
Rogue access point detection	Yes
Mounting and Physical Security
Multiple mounting options	Mounting bracket included for easy mounting to junction box
Physical security lock	Kensington lock slot
Quality of Service
QoS	Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS
Performance
Wireless throughput	Up to 1.2-Gbps data rate (real-world throughput will vary)
Recommended user support	Up to 128 connective users, 32 active users per radio
Multiple-Access Point Management
Single Point Setup	Yes
Number of access points per cluster	8
Active clients per cluster	240
Configuration
Web user interface	Built-in web user interface for easy, browser-based configuration (HTTP, HTTPS)
Management
Management protocols	Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management	Yes
Event logging	Local, remote syslog, email alerts
Network diagnostics	Logging and packet capture
Web firmware upgrade	Firmware upgradable through web browser, imported or exported configuration file
Dynamic Host Configuration Protocol (DHCP)	DHCP client
IPv6 host	Yes
HTTP redirect	Yes
Wireless
Frequency	Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type	Dual radio, orthogonal frequency division multiplexing (OFDM) IEEE 802.11a/n : OFDM (BPSK, QPSK, 16 QAM, 64 QAM) IEEE 802.11ac : OFDM (BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM)
WLAN	802.11n/ac 2×2 MIMO with 2 spatial streams at 5 GHz 2×2 MIMO with 2 spatial streams at 2.4 GHz 20-, 40-, and 80-Mhz channels for 802.11ac 20- and 40-Mhz for 802.11n PHY data rate up to 1.2 Gbps 802.11 Dynamic Frequency Selection (DFS)
Data rates supported	802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps 802.11n : 6.5 to 300 Mbps 20-MHz bandwidth : MCS 0-15 for supported data rates 40-MHz bandwidth : MCS 0-15 for supported data rates 802.11ac : 6.5 to 867 Mbps 20-MHz bandwidth : MCS 0-9 for supported data rates 40-MHz bandwidth : MCS 0-9 for supported data rates 80-MHz bandwidth : MCS 0-9 for supported data rates
Frequency band and operating channels	A Regulatory Domain : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels 5.500 to 5.700 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels E Regulatory Domain : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels 5.500 to 5.700 GHz; 8 channels R Regulatory Domain : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels	C Regulatory Domain : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels 5.745 to 5.825 GHz; 5 channels K Regulatory Domain : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels 5.500 to 5.620 GHz; 7 channels 5.745 to 5.805 GHz; 4 channels J Regulatory Domain : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.240 GHz; 4 channels 5.260 to 5.320 GHz; 4 channels 5.500 to 5.700 GHz; 11 channels
Non-overlapping channels	2.4 GHz 802.11b/g 20 MHz : 3 802.11n 20 MHz : 3	5 GHz 802.11a 20 MHz : 21 802.11n 20 MHz : 21 40 MHz : 9 802.11ac 20 MHz : 21 40 MHz : 9 80 MHz : 4
Wireless isolation	Wireless isolation between clients
External antennas	None
Internal antennas	Internal fixed PiFA antenna
Antenna gain in dBi	Maximum antenna gain of 4.35 dBi on 2.4 GHz Maximum antenna gain of 3.96 dBi on 5 GHz
Wireless distribution system (WDS)	Yes
Fast roaming	Yes
Multiple SSIDs	16
Wireless VLAN map	Yes
WLAN security	Yes
Wi-Fi Multimedia (WMM)	Yes, with unscheduled automatic power saving
Operating Modes
Access point	Access point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options	IEEE 802.3af/at Ethernet switch Cisco power injector : SB-PWR-INJ2-xx Cisco AC Adapter – SB-PWR-48V-xx (not included) PoE peak power : 19.2 W (with PSE load)
Compliance	Safety : UL 60950-1 CAN/CSA-C22.2 No. 60950-1 IEC 60950-1 EN 60950-1 Radio approvals : FCC Part 15.247, 15.407 RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) AS/NZS 4268.2003 (Australia and New Zealand) EMI and susceptibility (Class B) : FCC Part 15.107 and 15.109 ICES-003 (Canada) EN 301.489-1 and -17 (Europe)
Operating temperature	0° to 40°C (32° to 104°F)
Storage temperature	-20° to 70°C (-4° to 158°F)
Operating humidity	10% to 85% noncondensing
Storage humidity	5% to 90% noncondensing
System memory	256 MB RAM 128 MB flash
Package Contents
WAP361 Wireless-AC/N Dual Radio Wall Plate Access Point Ceiling and wall mounting kit Quick-start guide Ethernet network cable
