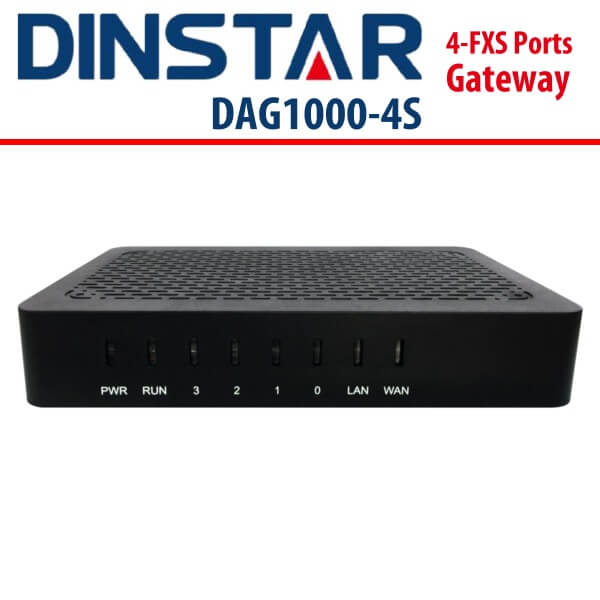

Dinstar DAG1000-4S Dubai

Rating

Dinstar DAG1000-4S Dubai

The Dinstar DAG1000-4S Dubai is an active analog telephone adapter that provides unconnected connections between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems.

Category:

Description

Dinstar DAG1000-4S Dubai

The Dinstar DAG1000-4S Dubai s an active analog telephone adapter that provides unconnected connections between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems. With the standard SIP protocol, it is compatible with leading IMS / NGN platforms and IP systems designed for IP telephony. Dinstar DAG1000-4S Dubai offers 4 FXS ports, IP fax and flexible dialing systems. Providing a high-quality and reliable voice over-IP service, this device is suitable for call centers, small and medium enterprises, SoHO and residential users.Dinstar DAG1000-4S Dubai is a multi-functional analog telephone adapter which offers seamless connectivity between IP Telephony networks and legacy telephones (POTS), fax machines and PBX systems. With standard SIP protocol, it’s compatible with leading IMS/NGN platforms and SIP-based IP Telephony systems. It provides 4 FXS ports, fax over IP and flexible dial plans. Offering high-quality and reliable voice-over-IP service, the device is ideal for call centers, small and medium enterprises, SOHO and residential users.

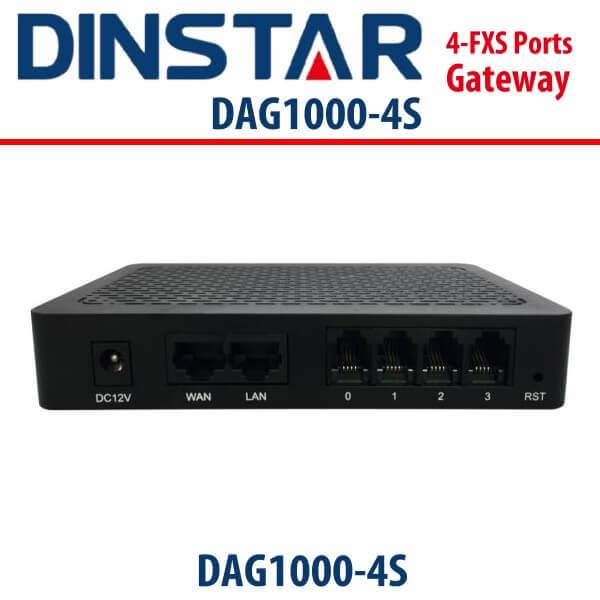

A multi-function analog telephone adapter that provides seamless communication between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems. The Dinstar DAG1000-4S Dubai offers 4xFXS (RJ11), 1xWAN 10 / 100Mbps (RJ45) and 1xLAN 10 / 100Mbps (RJ45) ports .Pressure Silence, Comfort Noise Generator (CNG) and Voice Activity Detection (VAD) Call Waiting and Calling, Call Transfer (Unconditional / Busy / Unanswered) and Call Transfer (Blind and Visited) Cloud-based management.

Features:

  • Support SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Support Modem/POS
  • Elastix/Broadsoft Certification
  • Support IPv4 and IPv6
  • Data/ Voice/ Management VLAN
  • Build-in Firewall and Access Rules
  • SNMP/TR069/Provision
  • Cloud-based Management System and Bandwidth Optimization

Dinstar DAG1000-4S -Technical Specifications:

Physical Interfaces

• Phone Interface:4FXS, 8FXS, RJ-11

• Ethernet Interface: 4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

• G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR

• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168)
• Adaptive (Dynamic) Jitter Buffer
• Hook Flash
• Programmable Gain Control
• T.38/Pass-through, up to 14.4kbps
• Modem/POS
• DTMF mode: Signal/RFC2833/INBAND
FXS Port
• Connector: RJ11
•Dial Mode: DTMF and Pulse
• Pulse: 10 and 20 PPS
• Caller ID: DTMF/FSK
• Max Cable Length: 5KM
• Reversed Polarity

Protocol

• TLS / SRTP
• SIP V2.0 (RFC 3261,3262,3264)
• IMS/3GPP
• SDP (RFC 2327)
• REFER (RFC 3515)
• RTP/RTCP (RFC 1889,1890)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• TFTP/HTTP/HTTPS
• DNS/DNS SRV (RFC 1706/RFC 2782)
• VLAN 802.1P/802.1Q

Supplement Service

• Call Waiting
• Blind  Transfer
• Attend Transfer
• Call Pickup
• Call Forward on Busy
• Call Forward on No Reply
• Unconditional Call Forward
• Hotline
• Call Hold
• DND
• 3-way conference
• Voicemail

Call & Route

• Port Group
• IP Trunk
• Primary and Secondary SIP Account
• 32 Inbound/Outbound Routing
• Number Manipulation
• Digitmap

Network Features

• NAT (Rout and Bridge)
• Static IP, PPPoE, DHCP Client
• DHCP Server
• MAC Address Clone
• DMZ, Static routing
• Built-in Firewall
• Static/dynamic ARP
• QoS, Traffic Shaping
• Voice/Data/Management Vlan

Maintain & Upgrade

• SNMP/TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via WEB/TFTP
• Syslog and CDR
• Access Rule List
• Network Capture
• Outward Test(GR909)
• Automatic Time Synchronization
• IVR local Maintenance
• Cloud-based Management

Environment

• Power Supply:100-240V,50-60Hz

Output: 12VDC,2A
Power Consumption:  18W
Temperature(Operation): -10 ℃  ~ 45 ℃
(Storage):   -20 ℃ ~80 ℃

• Humidity: 10%-90%  No condensation

Dimension & Weight

• 240(L)×154(W)×37(H)mm 1kg

Homologation

• CE,FCC
• Elastix  / Broadsoft
