Description

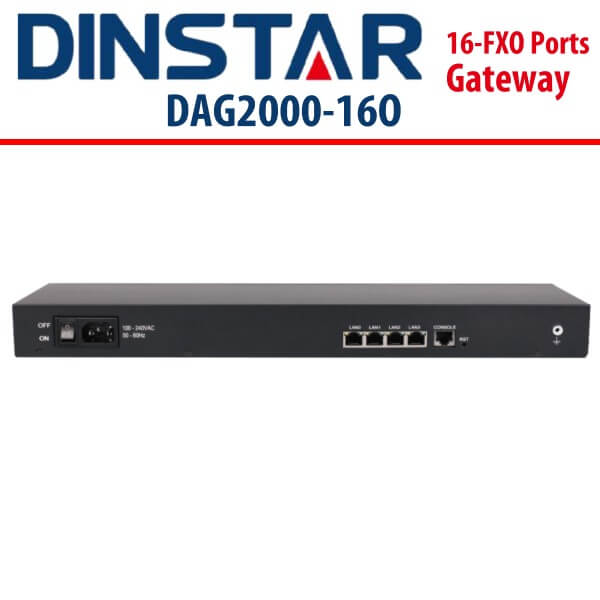

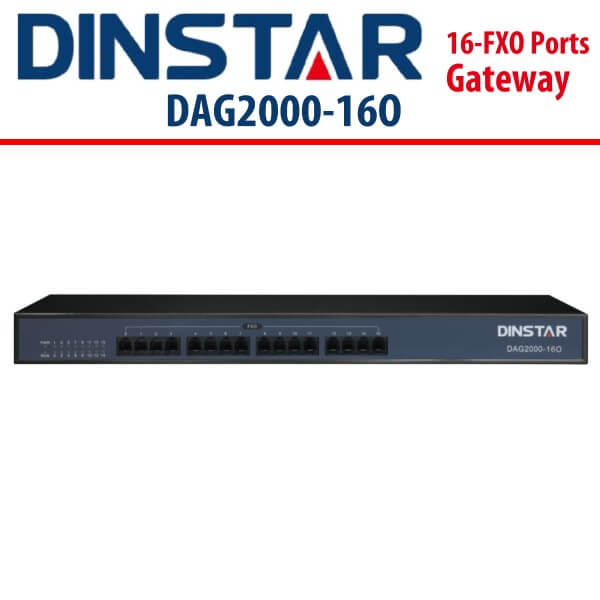

Dinstar DAG2000-16O Dubai
Dinstar DAG2000-16O Dubai FXO analog gateway is a type of access gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS) and PBX systems. The analog gateway has 16 FXO ports and is used to connect to analog PBX or the PSTN lines of telecom carriers. With the standard SIP protocol, it’s compatible with leading IMS/NGN platforms and SIP-based IP Phone systems. Dinstar DAG2000-16O Dubai provides low-cost and easy-to-use VoIP solutions for small and medium businesses, call centers, SOHO, remote offices as well as enterprises with multiple branches.
Features:
- Primary and secondary SIP account
- Flexible FXO port groups
- Multiple SIP trunks
- Caller ID
- Flexible routing and manipulation rules
- Data/Voice/Management VLAN
- T.38 and Pass-through
- Friendly Web GUI access, easy to maintain
Dinstar DAG2000-16O – Technical Specs
Physical Interfaces
- Telephone interface: 16FXO, RJ-11
- Ethernet Interface: 4*RJ-45 10/100 Base-Tx, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- T.38/Pass-through/Modem FAX mode,Up to 14.4kbps
- DTMF mode: Signal/RFC2833/INBAND
FXO Port
- Busy tone detection
- No current detection
- Voice interrupted detection
- One stage dialing
- Two stage dialing
- Polarity Reversal
- FAS(Fake billing correction )
- Auto match fixed line impedance
- Caller ID detection (BellcoreType 1&2)
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Maintain & Upgrade
- Web based configuration
- Telnet configuration
- Data backup/restore
- Support English and Chinese language
- Firmware upgrade by TFTP
- Web & telnet login password modify
- Factory reset
- Automatic time synchronization
- IVR local maintenance management
Physical propertiesPacking
- Power: input:100 – 240V, 50 – 60Hz,1.2A Max
- Power consumption (W): 48
- Temperature:
- Operation: -10 °C ~ 45 °C
- Storage: -20 °C~80 °C
- Operation Humidity: 10% – 90% no condensation
- Dimension (W/D/H): 16FXO 442* 280* 44mm 3.0kg
Call & Routing
- FXO port group
- IP Trunk
- Primary and secondary SIP account
- 32 inbound routing rules
- 32 outbound routing rules
- Number manipulation
- Dial planl
Network Features
- Static IP, PPPoE, DHCP
- DHCP client
- IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Tracert
- Static/dynamic ARP
