Dinstar DAG2000-24S Dubai

Rating

Dinstar DAG2000-24S Dubai

Dinstar DAG2000-24S Dubai is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Category:

Description

Dinstar DAG2000-24S Dubai

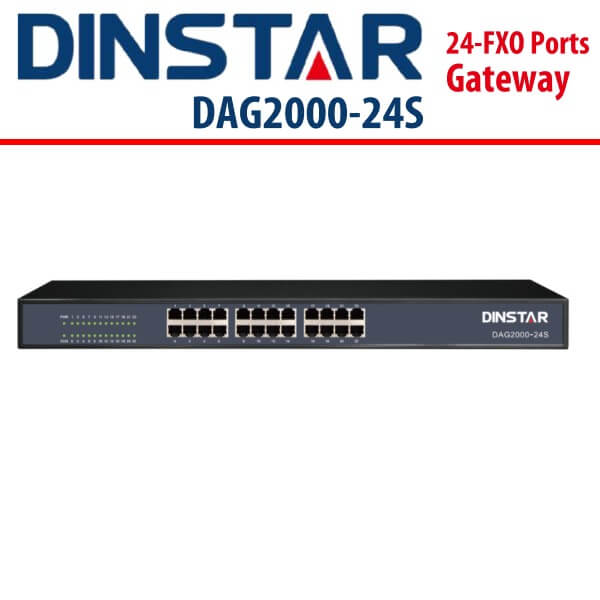

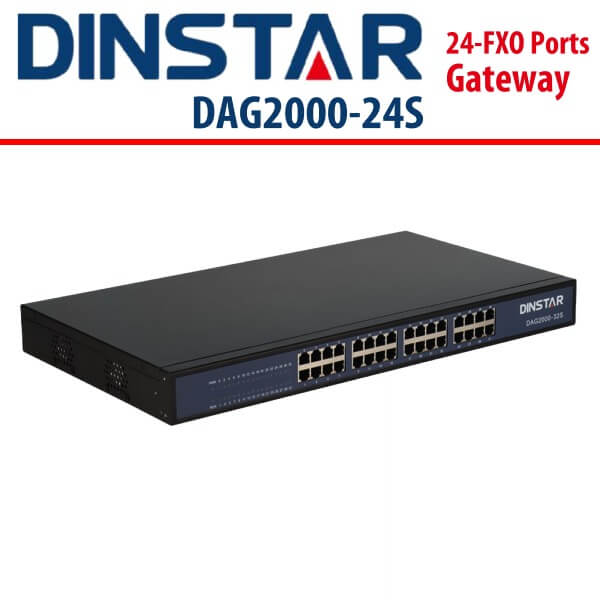

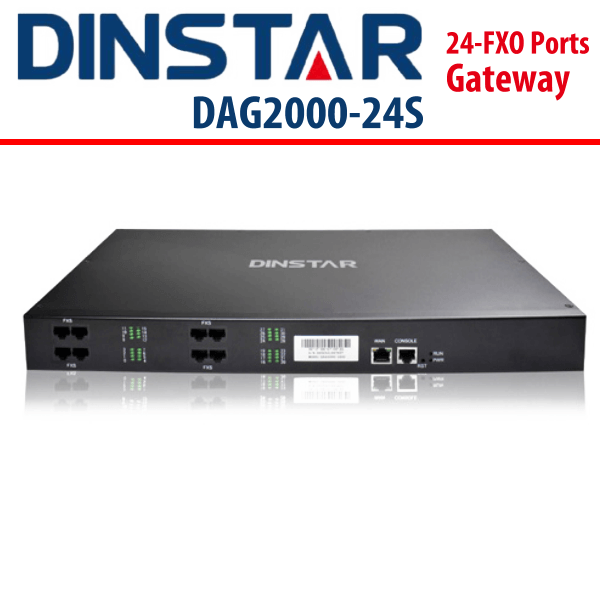

The Dinstar DAG2000-24S Dubai is a multi-functional analog gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. With the standard RJ11 and RJ21 interfaces, the device offers maximum 32 FXS ports. Dinstar DAG2000-24S Dubai provides the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Features:

  • Analog VoIP gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems.
  • With the standard RJ11 and RJ21 interfaces, the device offers maximum 24 FXS ports.
  • Dinstar DAG2000-24S Dubai provides the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems.
  • Dinstar DAG2000-24S Dubai is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.
  • Cost-effective VoIP adapter with 24 FXS ports
  • Dinstar DAG2000-24S Dubai supports legacy telephones, fax machines and POS terminals
  • Fax over IP (T.38 and Pass-Through)
  • Support TR069, SNMP protocol and DMCloud to manage devices remotely

Dinstar DAG2000-24S – Technical Specifications

Physical Interfaces

  • Phone Interface: 24FXS,4*RJ-45
  • Ethernet Interface:4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

  • G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through, up to 14.4kbps
  • Modem/POS
  • DTMF mode: Signal/RFC2833/INBAND

FXS Port

  • Connector: RJ45
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK
  • Max Cable Length: 5KM
  • Reversed Polarity

Protocol

  • SIP V2.0 (RFC 3261,3262,3264)
  • IMS/3GPP
  • SDP (RFC 2327)
  • REFER (RFC 3515)
  • RTP/RTCP (RFC 1889,1890)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • TFTP/HTTP/HTTPS
  • DNS/DNS SRV (RFC 1706/RFC 2782)
  • VLAN 802.1P/802.1Q

Supplement Service

  • Call Waiting
  • Blind  Transfer
  • Attend Transfer
  • Call Pickup
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Hotline
  • Call Hold
  • DND
  • 3-way conference
  • Voicemail

Call & Route

  • Port Group
  • IP Trunk
  • Primary and Secondary SIP Account
  • 32 Inbound/Outbound Routing
  • Number Manipulation
  • Digitmap

Network Features

  • Static IP, PPPoE, DHCP Client
  • IPv4, IPv6
  • Static/dynamic ARP
  • Traffic Shaping
  • Voice/Data/Management VLAN
  • DIFFServ, ToS

Maintain & Upgrade

  • SNMP/TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via WEB/TFTP
  • Syslog and CDR
  • Access Rule List
  • Network Capture
  • Outward Test(GR909)
  • Automatic Time Synchronization
  • IVR local Maintenance
  • Cloud-based Management

Environment

  • Power Supply:100-240V,50-60Hz
  • Power Consumption:
    • 24FXS:40W; 32FXS: 45W
  • Temperature
    • Operation: -10 °C  ~ 45 °C
    • Storage: -20 °C ~ 80 °C
  • Humidity: 10% – 90%  No condensation

Dimension & Weight

  • 24FXS:440(L) × 230(W) × 44(H)mm 3.0kg
