Dinstar DAG2000-32S Dubai

Rating

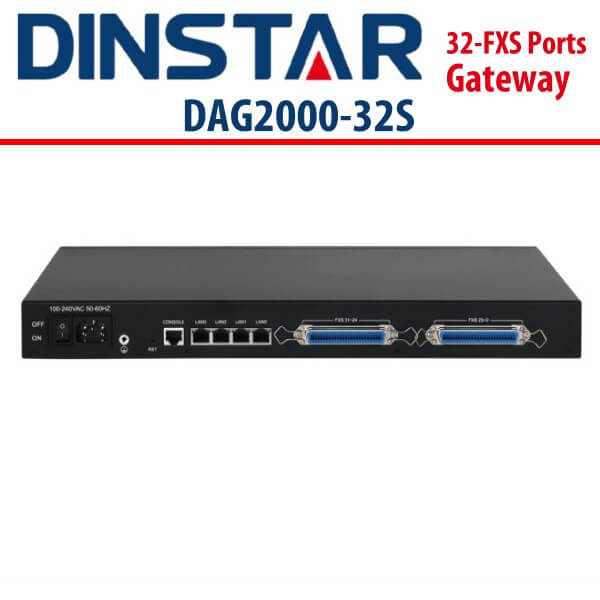

Dinstar DAG2000-32S Dubai

Dinstar DAG2000-32S Dubai FXS analog gateway is a versatile IP-based voice and fax gateway. For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions.

Category:

Description

Dinstar DAG2000-32S Dubai

The Dinstar DAG2000-32S Dubai is a multi-functional analog VoIP gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. With the standard RJ11 and RJ21 interfaces, the device offers maximum 32 FXS ports. Dinstar DAG2000-32S Dubai provides the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Dinstar DAG2000-32S Dubai FXS analog gateway is a versatile IP-based voice and fax gateway. For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. The users easy to connected their analog phone, fax, PBX with standard voice interface and provide high-quality voice service. DAG2000-24/32FXS VoIP access gateway use standard SIP protocol and compatible with Leading IMS/NGN platform, IP PBX and SIP servers.

Features:

  • Support SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Support Modem/POS
  • Elastix/Broadsoft Certification
  • Support SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Support Modem/POS
  • Elastix/Broadsoft Certification
  • Support IPv4 and IPv6
  • Data/ Voice/ Management VLAN
  • SNMP/TR069/Provision
  • Cloud-based Management System and Bandwidth Optimization

Dinstar DAG2000-32S -Technical Specs

Physical Interfaces:

  • Phone Interface: 24/32FXS,4/8*RJ-45
  • Ethernet Interface:4* RJ-45 10/100Mbps, RJ-45

Voice Fax:

  • G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through, up to 14.4kbps
  • Modem/POS
  • DTMF mode: Signal/RFC2833/INBAND

FXS Port:

  • Connector: RJ45
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK
  • Max Cable Length: 5KM
  • Reversed Polarity

Protocol:

  • SIP V2.0 (RFC 3261,3262,3264)
  • IMS/3GPP
  • SDP (RFC 2327)
  • REFER (RFC 3515)
  • RTP/RTCP (RFC 1889,1890)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • TFTP/HTTP/HTTPS
  • DNS/DNS SRV (RFC 1706/RFC 2782)
  • VLAN 802.1P/802.1Q

Supplement Service:

  • Call Waiting
  • Blind Transfer
  • Attend Transfer
  • Call Pickup
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Hotline
  • Call Hold
  • DND
  • 3-way conference
  • Voicemail

Call Route:

  • Port Group
  • IP Trunk
  • Primary and Secondary SIP Account
  • 32 Inbound/Outbound Routing
  • Number Manipulation
  • Digit map

Network Features:

  • Static IP, PPPoE, DHCP Client
  • IPv4, IPv6
  • Static/dynamic ARP
  • Traffic Shaping
  • Voice/Data/Management VLAN
  • DiffServ, ToS

Maintain Upgrade:

  • SNMP / TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via WEB/TFTP
  • Syslog and CDR
  • Access Rule List
  • Network Capture
  • Outward Test(GR909)
  • Automatic Time Synchronization
  • IVR local Maintenance
  • Cloud-based Management

Environment:

  • Power Supply:100-240V,50-60Hz
  • Power Consumption:
  • 24FXS:40W; 32FXS: 45W
  • Temperature(Operation): -10 ??? ~ 45 ???, (Storage): -20 ??? ~80 ???
  • Humidity: 10%-90% No condensation

Dimension Weight:

  • 24FXS:440(L) × 230(W) × 44(H)mm 3.0kg
  • 32FXS:440(L) × 250(W) × 44(H)mm 3.2kg

Homologation:

  • CE,FCC
  • Elastix / Broadsoft
