Description

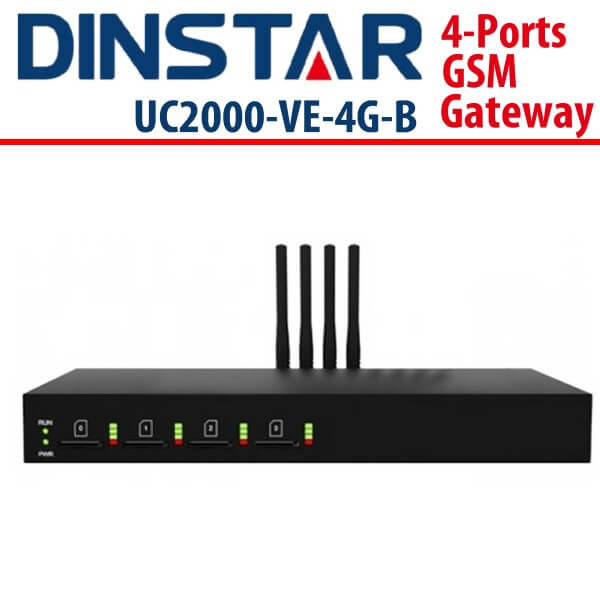

Dinstar UC2000-VE-4G-B Dubai
The Dinstar UC2000-VE-4G-B Dubai boasts of an impressive performance, thanks to its advanced built-in software features and modern hardware structure design. Moreover, with the opened API, the users could build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. The gateway provides low cost, easy and flexible IP telephony solution to enterprise, SMEs and business office etc. The Dinstar UC2000-VE-4G-B Dubai is a modern, 4-port GSM VoIP Gateway that has been designed to enable you to make calls between VoIP network and 2G/3G mobile network. It comes with a new pop-up SIM card slot that allows users to easily change SIM card easily without having to dismantle the equipment.This is a model of Dinstar GSM gateway Dubai.
Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, Dinstar UC2000-VE-4G-B Dubai is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.\
UC2000-VE-4G-B Key Features :
- 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE
- Support to different mobile networks :
- GSM : 850/900/1800/1900MHz;
- CDMA : 800MHz; WCDMA : 850/900/1900/2100MHz
- HTTP API for SMS Application Integration
- SMS to Email and Email to SMS
- Flexible Dial Rules and Manipulation Rules
Dinstar UC2000-VE-4G – Technical Specifications
Voice Processing
- Protocol : SIP v2.0, RFC3261
- Codecs : G.711A/U law, G.723.1, G.729A/B
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation : G.168 with up to 128ms
- Dynamic Jitter Buffer
- DTMF : RFC2833, SIP Info
- Call Progress Tone Generation
- Programmable Gain Control
- NAT : STUN, Dynamic NAT, Static NAT
Mobile
- SIM Interface : 1.8v, 3.0v SIM Interface
- Frequency Range :
- GSM : 850/900/1800/1900MHz;
- CDMA : 800MHz
- WCDMA : 850/900/1900/2100MHz
- USSD Encoding : Unicode/ASCII
- HTTP API for SMS
- Polarity Reversal
- PIN Modify
- CID/CLIR
- SMS Send and Receive
- SMS to Email
- Call Waiting/Call Back
- Call Forward
- GSM Audio Coding : HR, FR,EFR, AMR_FR,AMR_HR
Software Features
- Calling Type :
- Mobile to VoIP, VoIP to Mobile
- SIP Trunk and Trunk Group
- Caller/Called Number Manipulation Rules
- SIP Codes Mapping
- White/Black List
- PSTN Hotline
- VoIP Hotline
- Abnormal Call Monitor
- Call Minutes Limitation for Ports/Single Call
- Balance Check
- Low Balance Alarm
- Auto Update SIM Number
- Random Call Interval
- Auto CLIP
- Signaling & RTP Encryption
- SMPP for SMS
Network
- Static IP, DHCP Client, PPPoE
- Network Protocols :
- TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
- Static/Dynamic ARP Request
- PPTP VPN
Maintenance
- Web/Telnet Configuration
- Configure Backup/Restore
- Firmware Upgrade by HTTP/TFTP
- Factory Reset
- CDR (10000 Lines CDRs Storage Locally)
- Syslog/Filelog
- Ping and Tracert
- Traffic statistics : TCP,UDP,RTP
- VoIP Call Statistics
- PSTN Call statistics : ASR,ACD,PDD
- Voice Diagnose with Loopback
- GSM Network Test
- IVR Customization
- Auto Provisioning
- SIP/RTP/PCM Capture

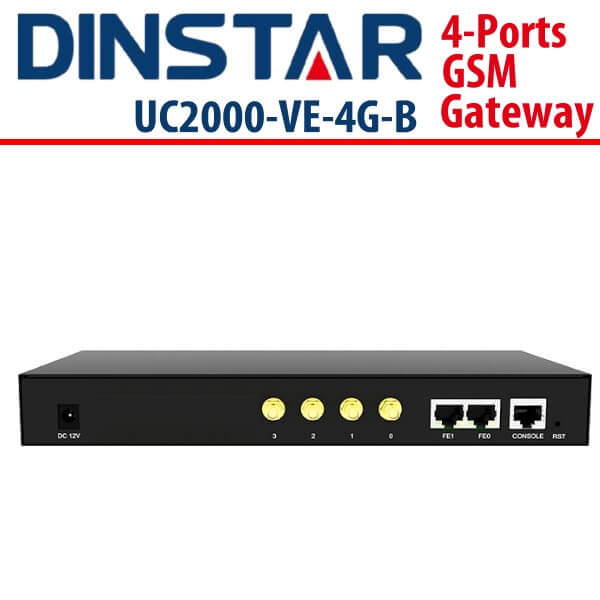

Physical Interface
- Mobile : 4/8 Channels
- Antennas Connectors : SMA
- Ethernet Interfaces : 2*10/100 Base-T, RJ45
- LED Indicators : Power, RUN, Signal Strength Indicators
- Console : 1* RS232 115200bps
Environmental
- Power Supply
- Input : 100-240V,50-60Hz
- Output : DC12V 4.0A
- Power Consumption :
- UC2000-VE-4G : 20w
- UC2000-VE-8G : 25w
- Temperature(Operation) : 0 ℃ ~ 45 ℃(Storage) : -20 ℃ ~80 ℃
- Operation Humidity : 10%-90% No Condensation
- Dimension(W/D/H) : 250*156*32.5mm
- Weight : 1.069kg
- Package Weight : 2.05kg
