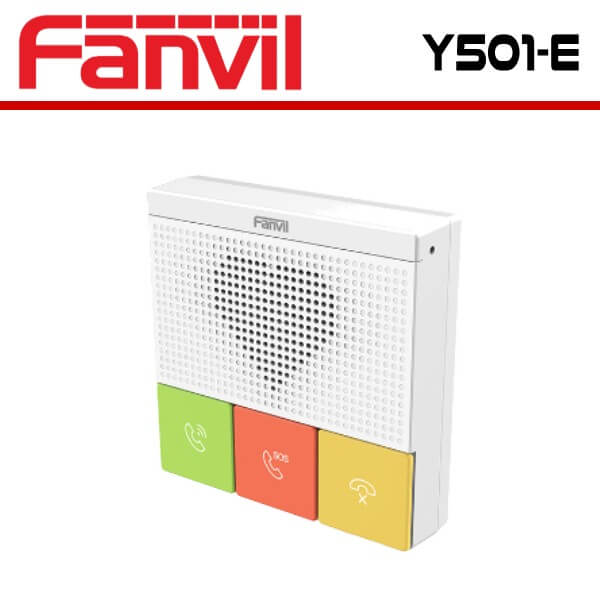

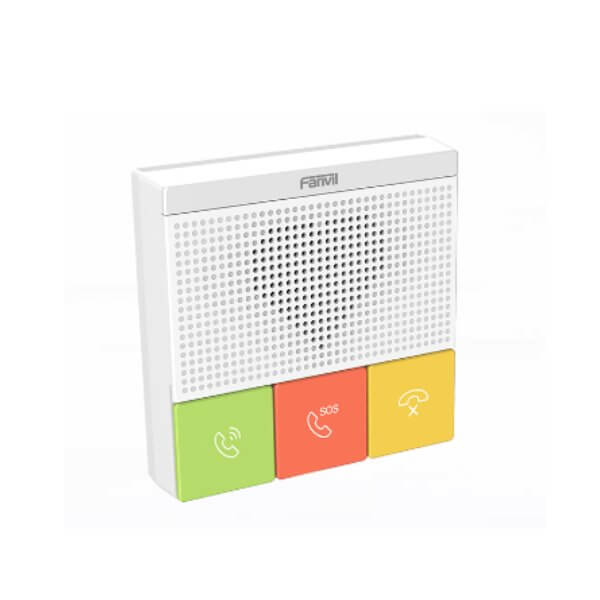

Fanvil Y501-E SIP Intercom Dubai

The Fanvil Y501-E Dubai SIP healthcare intercoms epitomize design excellence crafted specifically for home-based care, nursing homes, and various indoor applications. Engineered to facilitate emergency communication, ensure security, and enable broadcasting, these intercoms provide a comprehensive feature set to address diverse healthcare needs. Central to their functionality is high-definition audio, ensuring clear communication in critical situations. Supporting 2 SIP accounts, they offer flexibility in managing communication protocols efficiently.

Additionally, detachable DSS keys enhance usability by enabling customizable configurations tailored to specific needs. With an IP54 waterproof and dustproof rating, these intercoms ensure durability and reliability even in challenging environments, providing assurance in demanding healthcare settings. A notable feature is the built-in 2.4G & 5G Wi-Fi (Y501W/Y501W-E), enabling seamless connectivity and communication across networks, extending their utility in various healthcare scenarios.

For installation, the Fanvil Y501-E Dubai offers flexibility with various mounting options, including standard 86 box embedded and wall-mountable configurations, ensuring compatibility with diverse architectural layouts and seamless integration into healthcare facilities of varying designs. Redefining communication in healthcare settings, these intercoms blend advanced features, durability, and flexibility. With their robust design and comprehensive functionality, they deliver a timely and reliable healthcare communication experience, meeting the demands of modern healthcare environments.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501/Y501-E)
  • 1.42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501/Y501-E)
  • 1.99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT : 3.7kg
• G.W/CNT : 3.98kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
