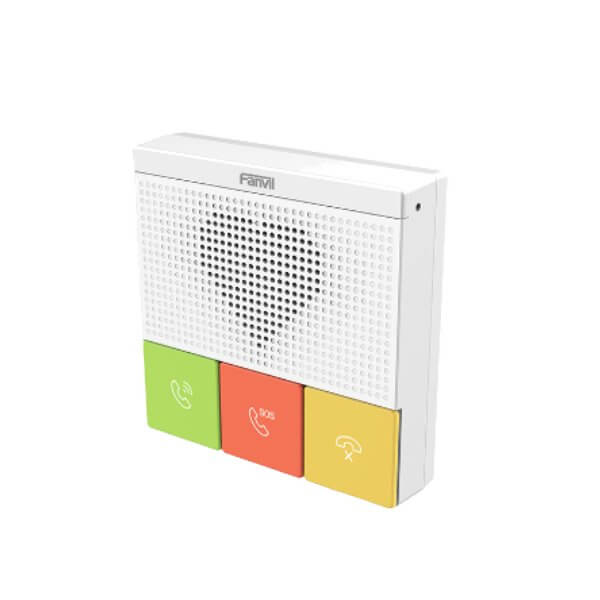

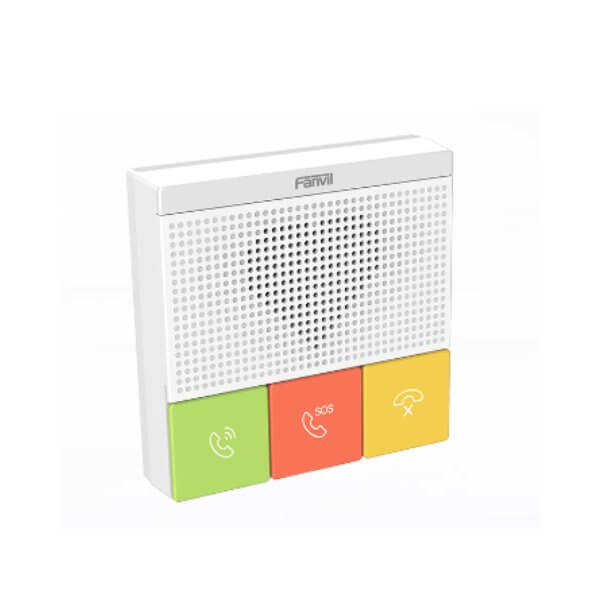

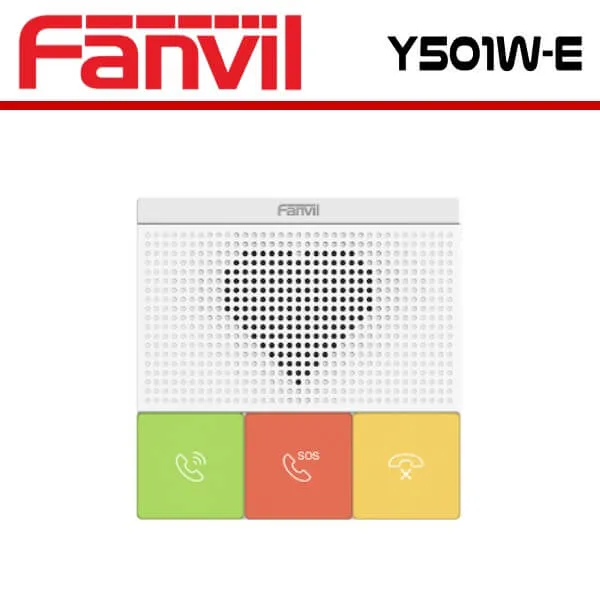

Fanvil Y501W-E SIP Intercom Dubai

The Fanvil Y501W-E Dubai SIP healthcare intercoms address the unique requirements of home-based care, nursing homes, and indoor applications, epitomizing reliability and functionality in healthcare technology. Engineered to meet emergency communication needs, enhance security, and facilitate broadcasting, they signify innovation in healthcare technology.

Noteworthy among the features of the Fanvil Y501W-E Dubai intercoms is their high-definition audio, ensuring clear communication in critical situations. Supporting up to 2 SIP accounts, users can manage multiple communication lines seamlessly. The detachable DSS keys offer customization options, tailoring the intercoms to specific needs. Additionally, the IP54 waterproof and dustproof rating ensures durability, suitable for various indoor settings. Integrated 2.4G and 5G Wi-Fi connectivity expand networking options.

The Y501 series provides flexible installation choices, including standard 86 box embedding and wall mounting, facilitating deployment in diverse healthcare settings. Whether in private residences or nursing facilities, these intercoms ensure timely and reliable healthcare communication for patients and caregivers. The Fanvil Y501W-E Dubai blend cutting-edge technology and practical design, meeting evolving healthcare needs with unwavering reliability and performance.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W(Y501/Y501-E)
  • 42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 48W~2.37W(Y501/Y501-E)
  • 99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• W/CNT : 3.7kg
• W/CNT : 3.98kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
