Description

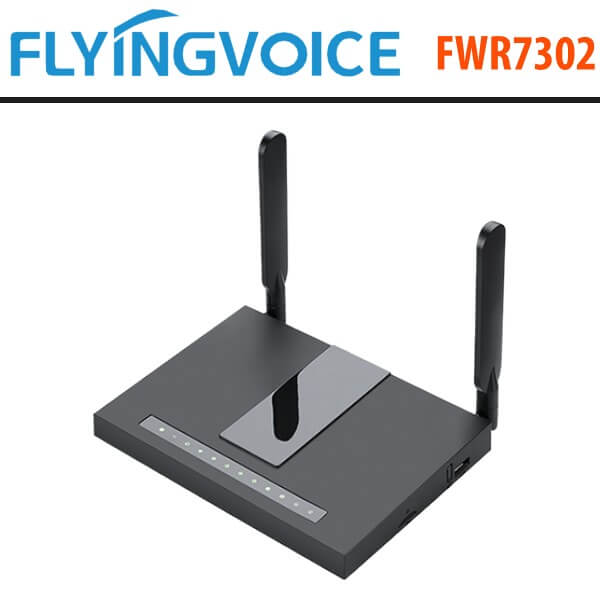

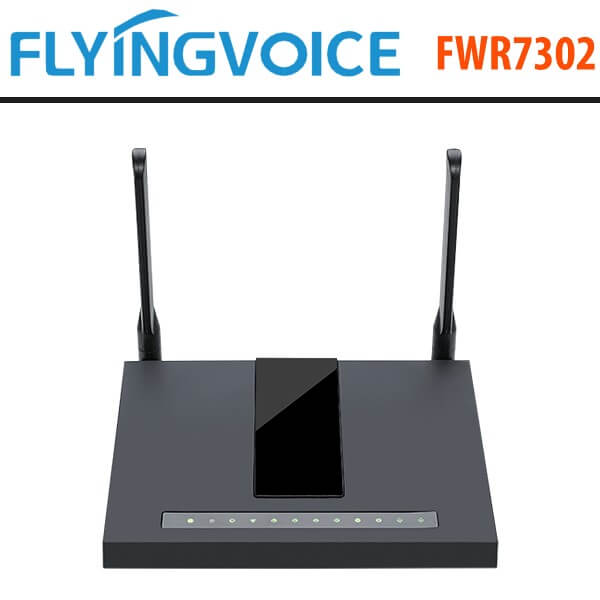

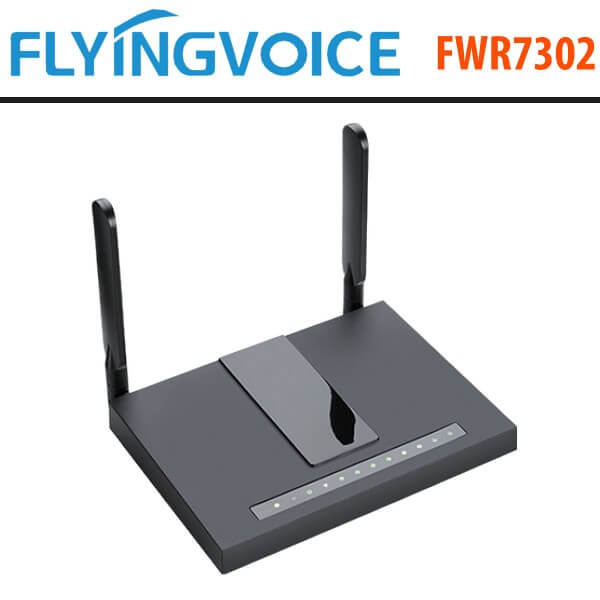

Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router Dubai
The Flyingvoice FWR7302 Dubai 4G-LTE Dual-Band VoIP Router includes extended functions that support SFP port, USB port, and a couple of FXS ports. This design not only provides users with standard VoIP and routing capabilities. Users may also take Flyingvoice FWR7302 Dubai 4G-LTE Dual-Band VoIP Router as an FTP server to share LAN files, pictures, and other resources. Meanwhile, SFP for internet access, 2 FXS ports can be well adapted to small and micro enterprises,1FXS for telephone, 1FXS for Fax, no must add additional equipment. Flyingvoice FWR7302 Dubai 4G-LTE Dual-Band VoIP Router is ideally fitted to small and medium enterprises (SMB) to create a wireless office. Flyingvoice FWR7302 Dubai supports IEEE802.11ac gigabit wireless LAN standard, the best wireless speed is up to 867Mbps and it supports both 2.4GHz and 5GHz bands. For VoIP users, 5G band can ensure less interference and also the transmission quality. The more, users can enjoy greater bandwidth and enhanced data throughput.
FWR7302 Wireless VoIP Router Features :
• Support QoS
• 10/100/1000Mbps Ethernet
• 1 Combo SFP port
• Support 2.4GHz&5GHz Wi-Fi
• Real-time IP fax, T.38 and T.30
- Support 4G-LTE
- With a built-in SIM card slot, you can insert a SIM card and turn the router on, enjoying fast, stable Wi-Fi on a 4G LTE network wherever you go using the Flyingvoice FWR7302 Dubai.
-
Gigabit Ethernet Ports
-
Flyingvoice FWR7302 Dubai 5*10/100/1000M Gigabit Ethernet ports which provide reliable and high-speed network, transmitting and receiving data smoothly.
-
-
Dual-Band Wi-Fi
-
Flyingvoice FWR7302 Dubai delivers up to 1200 Mbps. Dual-band 2.4 GHz and 5 GHz Wi-Fi can reduce interference, ensure transmission quality, and enhance data throughput.
-
-
Multi-Function
-
Flyingvoice FWR7302 Dubai can make and receive SIP calls, it also supports IP sharing and QoS mechanism. The USB port can make users connect to external storage devices, and realize file and data sharing via it. Meanwhile, it supports T.30, T.38 and G.711 protocols, no additional purchase costs.
-
-
Broad Compatibility
-
The Flyingvoice FWR7302 Dubai is based on SIP V2 and 802.11ac standard and compatible with most service providers, which brings great convenience when deploying VoIP network.
-
-
Easy Management
-
Flyingvoice FWR7302 Dubai is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.
-
Flyingvoice FWR7302 Wireless VoIP Router Specifications :
VoIP SoC
- CPU: MIPS Single-core 600MHz
Flash
- 16MB Flash
RAM
- 128MB DDR2 RAM
Power
- AC/DC Adapter
- AC Input: 100~240V, 50~60Hz
- DC Output: 12V, 2A
Operating System
- Linux 2.6.36
I/O Interfaces
- 1 RJ-45 for WAN Port (Ethernet 1000 Base-T)
- 4 RJ-45 for LAN Port (Ethernet 1000 Base-T)
- 2 RJ-11 for FXS Port
- 1 USB 2.0 Host Ports
- 1 Combo SFP port
- 1 SIM card port
Environmental
- Operation Temperature: 0~50 Degree C
- Storage Temperature: -25~ 85 Degree C
- Relative Humidity: 10%~90% No Condensing
Audio Codec
- G.711(A/u),PESQ>4.3
- G.729AB,PESQ>3.7
- Adaptive Jitter Buffer Management
- Voice Activity Detection
- Comfort Noise Generation
- Echo Cancellation
- T.30 FAX with G.711
- Real time FAX over IP via T.38
LTE Features
- Four-Band TDD-LTE B38/B39/B40/B41
- Three-Band FDD-LTE B1/B3/B8
- Dual-Band TD-SCDMA B34/B39
- Dual-Band UMTS/HSDPA/HSPA+ B1/B8
- GSM/GPRS/EDGE 900/1800 MHz
- Uplink up to 50Mbps
- Downlink up to 100Mbps
- 2G/3GFallback
Management
- Firmware Upgrade
- Web Management Interface
- IVR-driven Management Interface
- Local and Remote Syslog (RFC3164)
- Auto Provisioning
- SNTP Time Synchronization
- Multi User Level
- SNMP v2
- Telnet
- TR069
- System Log: local log and remote log
Feature keys
- Support 1000Mbps HNAT
- 2T2R 2.4G 802.11 b/g/n(300 Mbps)
- 2T2R 5G 802.11ac (867Mbps)
- Support VoIP FXS port with SIP and T.38 FAX
- External Antenna for LTE and Wifi
SPF feature
- Speed: GE
- Interface type: LC
- Module spec: Single Module
- Core: Double core& single core
Protocols
- SIP V2.0 (RFC 3261, 3262, 3263, 3264)
- SDP (RFC2327)
- RTP/RTCP (RFC823/903)
- NAPTR for SIP URI lookup (RFC2915)
- STUN (RFC2030)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- HTTP Server for Web Management
- TFTP/HTTP for Auto Provisioning
- Message Waiting Indicator (RFC3842)
- DHCP Option Codes for SIP (RFC3361)
- DNS/DNS SRV (RFC1706 and RFC 2782)
- IEEE802.1Q VLAN/802.1p and IP DSCP
Applications
- Support LTE(just for FWR7302)
- Support NAT mode and Bridge mode
- Support DDNS
- MAC address cloning
- SIP proxy redundancy
- NAT Traversal by STUN
- Built-in Wired speed NAT Router
- DHCP Server and Client
- IP conflict detection
- Port Forwarding, DMZ, SuperDMZ
- 802.1Q VLAN/802.1p, DSCP, Rate Limiting
- VPN(PPTP,L2TP, IPSec) Passthrough
- SNTP
- IGMPv2
- Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Wireless
- 802.11 b/g/n support
- 4 SSID
- Static WEP(64/128bit)
- Dynamic WEP(64/128bit)
- AES(CCMP/TKIP)
- MAC certification
- WEP certification
- WPA-PAK/WPA-PSK(2.0)
- WPA/WPA2
- AP Isolation and MBSSID AP Isolation
- WMM
- WDS
- WPS
- Station list
- Radius certification and billing
- MAC Filter(different from wired MAC Filter)
Call Features
- 3-way conference
- Call hold
- Call forwarding
- Call Transfer
- Call waiting
- Caller ID and CWCID
- DTMF Relay: In-band, Out-band and SIP INFO
- QoS Layer 3
- Call Log
- CID/CWCID
- Dial Plan
- DTMF Mode: Inband, RFC2833 and SIP Info
Regulatory
- FCC Part 15 Class B approval
- CE certification
- RoHS compliance
SIZE And Weight
- 188mm(L)x155mm(W)x29mm(H)
- 331g(N.W)
