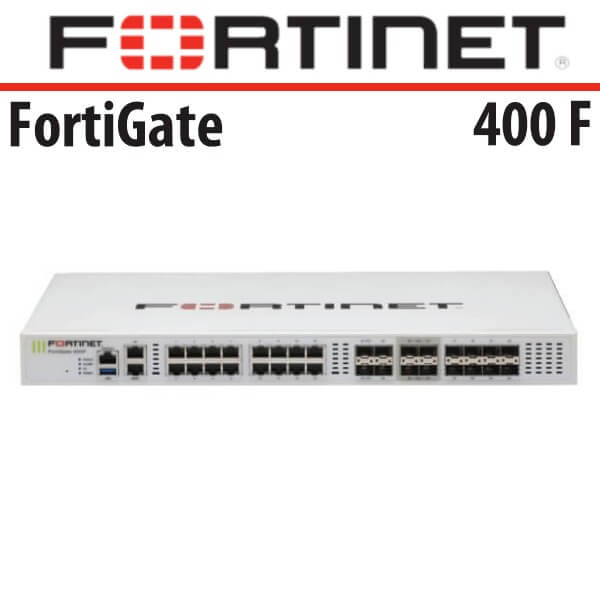

Fortinet Fortigate 400F Firewall Dubai
The NGFW Fortigate 400F Dubai combines advanced security capabilities powered by artificial intelligence and machine learning to provide comprehensive threat protection at any scale. Gain enhanced visibility into your network, enabling you to identify applications, users, and devices before they pose any risks. With a wide range of AI/ML security features integrated into a unified security fabric platform, the Fortigate 400F Dubai offers extensive, automated security for your network. Ensure end-to-end network security with advanced edge protection, including web, content, and device security. Additionally, network segmentation and secure SD-WAN functionality reduce complexity and mitigate risks in hybrid IT networks. The Universal ZTNA feature in Fortigate 400F Dubai effectively controls, verifies, and facilitates user access to applications, minimizing lateral threats by granting access solely to validated users. Benefit from ultra-fast Threat Protection and SSL Inspection that secures your network perimeter without compromising performance.
Fortigate 400F Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Security-Driven Networking FortiOS delivers converged networking and security.
- State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Deep Visibility into applications, users, and devices beyond traditional firewall techniques.
Hardware Features
Trusted Platform Module (TPM)
The Fortigate 400F Dubai features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Interfaces | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ Slots | 4 |
| Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots | 4 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 1 |
| RJ45 Console Port | 1 |
| Onboard Storage | 0 |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 12 Gbps |
| NGFW Throughput 2, 4 | 10 Gbps |
| Threat Protection Throughput 2, 5 | 9 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) | 4.19 μs / 2.5 μs* |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Concurrent Sessions (TCP) | 7.8 Million |
| New Sessions/Second (TCP) | 500 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput 6 | 3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 6000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 800 000 |
| Application Control Throughput (HTTP 64K) 2 | 28 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 72 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
