Description

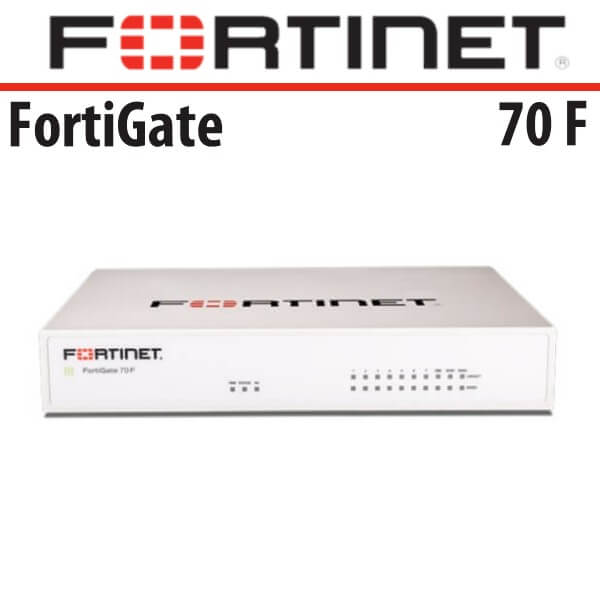

Fortinet Fortigate 70F Firewall Dubai
The FortiGate Next-Generation Firewall Fortigate 70F Dubai is exceptionally well-suited for establishing security-focused networks in various distributed enterprise locations and reshaping WAN architecture, regardless of the scale. Equipped with a robust array of FortiGuard security services driven by AI/ML technology and our integrated Security Fabric platform, the Fortigate 70F Dubai provides unified, automated, end-to-end protection against threats across all scenarios.
FortiGate leads the industry with its pioneering integration of SD-WAN and zero-trust network access (ZTNA) enforcement directly within an NGFW solution, all powered by a single operating system. The Fortigate 70F Dubai takes charge of managing, verifying, and facilitating user access to applications, ensuring a consistent and optimized user experience with seamless efficiency.
Fortigate 70F Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
- Security-Driven Networking with FortiOS delivers converged networking and security.
- Unparalleled Performance with Fortinet’s patented SoC processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.
Powered by Security Processing Unit (SPU)
Traditional firewalls cannot protect against today’s content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet’s custom SPU processors deliver the power you need—up to 520Gbps—to detect emerging threats and block malicious content while ensuring your network security solution does not become a performance bottleneck.
Secure SD-WAN ASIC SOC4
Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance.
- Delivers industry’s fastest application identification and steering for efficient business operations
- Accelerates IPsec VPN performance for best user experience on direct internet access
- Enables best of breed NGFW Security and Deep SSL Inspection with high performance
- Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity.
Hardware Features
Compact and Reliable Form Factor
Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight, yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Hardware Specifications | |
GE RJ45 WAN / DMZ Ports | 2 / 1 |
GE RJ45 Internal Ports | 5 |
GE RJ45 FortiLink Ports (Default) | 2 |
Wireless Interface | – |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | – |
Trusted Platform Module (TPM) | No |
Bluetooth Low Energy (BLE) | No |
System Performance* — Enterprise Traffic Mix | |
IPS Throughput 2 | 1.4 Gbps |
NGFW Throughput 2, 4 | 1 Gbps |
Threat Protection Throughput 2, 5 | 800 Mbps |
System Performance and Capacity | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
Firewall Latency (64 byte UDP packets) | 2.54 μs |
Firewall Throughput (Packets Per Second) | 9 Mpps |
Concurrent Sessions (TCP) | 1.5 M |
New Sessions/Second (TCP) | 35 000 |
Firewall Policies | 5000 |
IPsec VPN Throughput (512 byte) 1 | 6.1 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput 6 | 405 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 700 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 500 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 100 000 |
Application Control Throughput (HTTP 64K) 2 | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 8.5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 24 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
