Description

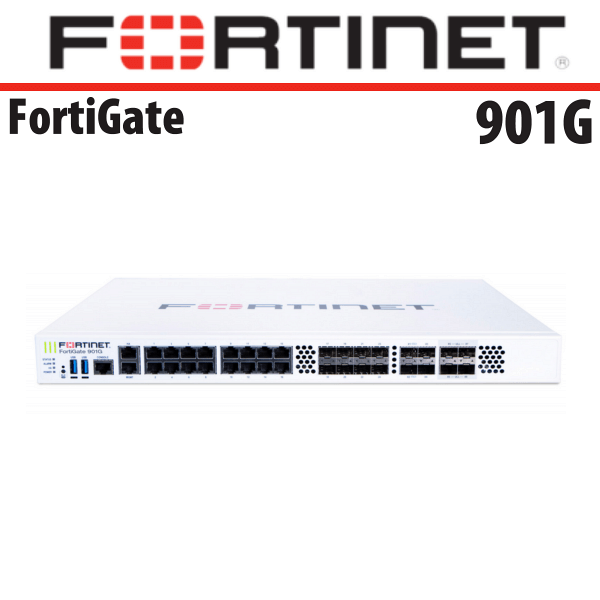

Fortinet901G Next-Generation Firewall Dubai
The Fortinet901G Dubai Next-Generation Firewall (NGFW) integrates advanced AI-driven security mechanisms alongside cutting-edge machine learning (ML) algorithms to provide robust, scalable Threat Protection across any network architecture. With enhanced visibility into your network traffic, it enables the proactive identification of applications, users, and devices, mitigating potential threats before they materialize.
Leveraging a comprehensive suite of AI/ML-based security features, the Fortinet901G Dubai extends its capabilities through an integrated Security Fabric platform. This platform enables an end-to-end secure networking infrastructure that is expansive in scope, intricate in depth, and fully automated. Advanced edge protection encompasses web filtering, content inspection, and device security, ensuring a multi-layered defense approach. Additionally, network segmentation and secure SD-WAN functionality are optimized to simplify hybrid IT environments, reducing operational complexity and minimizing security risks.
The built-in Universal Zero Trust Network Access (ZTNA) feature enforces rigorous access control by automatically verifying and managing user access to applications. This process effectively mitigates lateral movement threats by ensuring only authenticated users are granted access. Meanwhile, high-speed Threat Protection and deep SSL Inspection provide comprehensive edge security without compromising network performance, ensuring secure, high-speed operations even under heavy workloads.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet901G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Interfaces and Modules | |
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
Hardware Accelerated GE SFP Slots | 8 |
Hardware Accelerated GE RJ45 Slots | 16 |
2.5 GE / GE HA Port | 1 |
GE Management Port | 1 |
USB Ports (Client / Server) | 2/2 |
Console Port | 1 |
Onboard Storage | 2x 480 GB |
Trusted Platform Module (TPM) | Yes |
Included Transceivers | 2x SFP SX |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 26 Gbps |
NGFW Throughput | 22 Gbps |
Threat Protection Throughput | 20 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
Firewall Throughput (Packet per Second) | 229.5 Mpps |
Concurrent Sessions (TCP) | 16 Million |
New Sessions/Second (TCP) | 720 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) | 55 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 50 000 |
SSL-VPN Throughput | 10 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
Application Control Throughput (HTTP 64K) | 74.8 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 96 |
Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number of FortiTokens | 5000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
Height x Width x Length (mm) | 44.45 x 432 x 380 |
Weight (maximum) | 16.53 lbs (7.5 kg) |
Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
AC Power Supply | 100–240VAC, 50/60 Hz |
AC Current (Maximum) | 6A@100VAC |
DC Power Supply | 48-60VDC |
DC Current (Maximum) | 7A@48V |
Power Consumption (Average / Maximum) | 144 W / 264 W |
Heat Dissipation | 902 BTU/h |
Power Supply Efficiency Rating | 80Plus Compliant |
Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
Operating Environment and Certifications | |
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
Humidity | 10%–90% non-condensing |
Noise Level | 58 dBA |
Forced Airflow | Side and Front to Back |
Operating Altitude | Up to 10 000 ft (3048 m) |
Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
Certifications | USGv6/IPv6 |
