Description

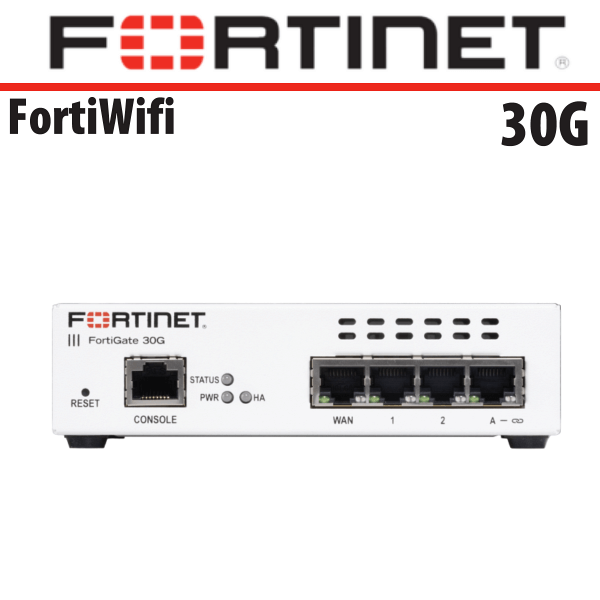

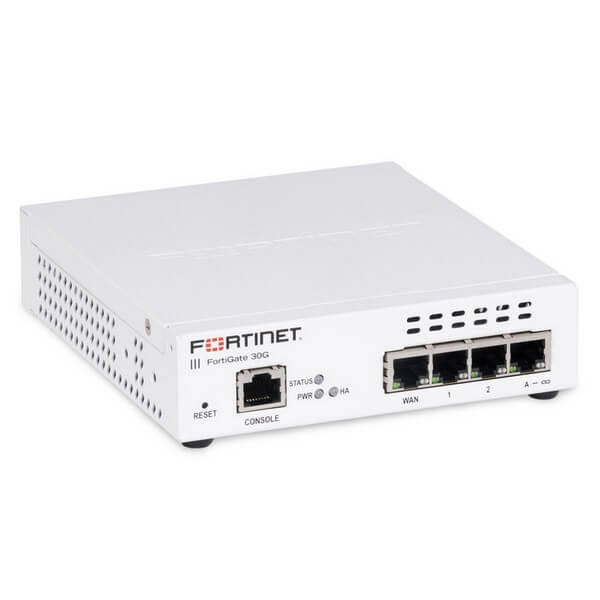

FortiWifi30G Next-Generation Firewall Dubai
The FortiWifi30G Dubai is an all-in-one solution that integrates firewall, SD-WAN, and security capabilities into a single appliance, making it ideal for building security-driven networks at distributed enterprise locations and transforming WAN architecture at any scale. Powered by the advanced FortiOS operating system, which offers the industry’s first convergence of networking and security, the FortiWifi30G helps businesses effectively safeguard their dynamic digital infrastructures. As a core component of the Fortinet Security Fabric platform, the FortiWifi30G Next-Generation Firewall (NGFW) works seamlessly with FortiGuard’s AI-powered security services to provide real-time, coordinated, and automated threat protection across a wide range of use cases.
The FortiWifi30G Dubai is designed with a patented SD-WAN-based ASIC, delivering superior performance compared to traditional CPU-based solutions, while reducing both costs and power consumption. Its application-specific architecture and multi-core processor accelerate the convergence of networking and security functions, ensuring optimized secure connections and enhanced user experiences at branch offices.
Key features of the FortiWifi30G Dubai include robust network security and high performance. The built-in NGFW offers comprehensive protection against various cyber threats, including malware, viruses, spyware, and botnets. For superior wireless performance, the device supports Wi-Fi 6 standards, delivering faster, more reliable connectivity. With dual-band operation across the 2.4 GHz and 5 GHz frequencies, the FortiWifi30G ensures optimal coverage and performance, further enhanced by beamforming technology that directs Wi-Fi signals to specific devices for improved range and speed. Additionally, MU-MIMO technology allows multiple devices to connect simultaneously without compromising performance. Centralized management is simplified through the FortiCloud platform, while a user-friendly web-based interface makes configuration and ongoing management effortless.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | — |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | — |
| Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 800 Mbps |
| NGFW Throughput | 570 Mbps |
| Threat Protection Throughput | 500 Mbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.87 μs |
| Firewall Throughput (Packets Per Second) |
5.85 Mpps |
| Concurrent Sessions (TCP) | 600,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 55,000 |
| Application Control Throughput (HTTP 64K) | 830 Mbps |
| CAPWAP Throughput (HTTP 64K) | TBA Gbps |
| Virtual Domains (Default / Maximum) | Not Supported |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Passive, Active-Active |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 142 x 160 |
| Weight | 1.5 lbs (0.7 kg) |
| Rack Mount Type | NA |
| Wall Mountable | Optional |
| Form Factor (supports EIA/non‑EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 2A |
| Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
| Maximum Current | 110V/0.17A, 240V/0.085A |
| Power Consumption (Average / Maximum) | 11.3 W / 13.6 W |
| Heat Dissipation | 46 BTU/hr |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -31° to 158°F (-35° to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | N/A |
| Operating Altitude | 10 000 ft (3048 m) |
| Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
| Certifications | USGv6/IPv6 |
