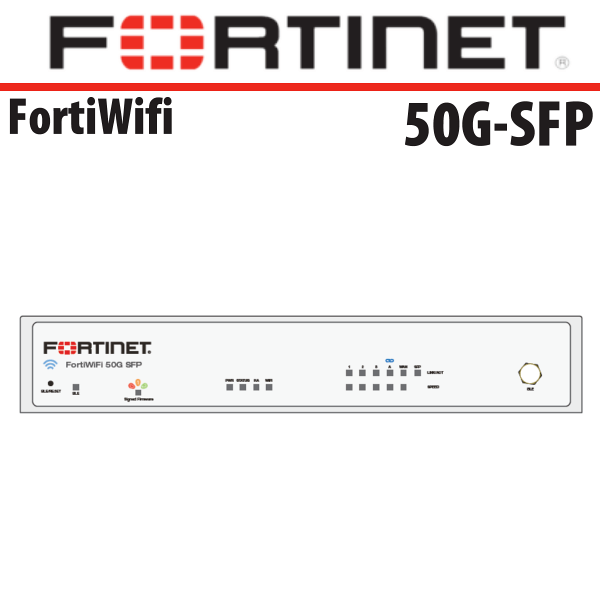

FortiWiFi50G SFP Firewall Dubai
The FortiWiFi50G SFP Dubai is a highly advanced solution designed for building security-driven networks at distributed enterprise locations and optimizing WAN architecture across various scales. Equipped with cutting-edge AI and machine learning-powered FortiGuard security services and fully integrated with Fortinet’s Security Fabric platform, the FortiWiFi50G SFP offers coordinated, automated, and comprehensive threat protection across all deployment scenarios. As the industry’s first device to combine SD-WAN capabilities with Zero Trust Network Access (ZTNA) enforcement within a Next-Generation Firewall (NGFW) solution, it operates seamlessly under a single operating system. The FortiWiFi50G SFP automatically manages, verifies, and controls user access to applications, ensuring consistent, seamless, and optimized user experiences.
The FortiWiFi50G SFP Dubai also features a robust Next-Generation Firewall (NGFW) that offers extensive protection against a wide range of cyber threats, including malware, viruses, spyware, and botnets. With support for Wi-Fi 6 standards, it ensures high-speed wireless performance for faster and more reliable connectivity. The dual-band functionality, operating on both 2.4 GHz and 5 GHz frequency bands, optimizes both coverage and performance. Additionally, advanced beamforming technology directs Wi-Fi signals towards specific devices, improving both range and overall network performance. The device’s MU-MIMO technology enables multiple devices to connect simultaneously without compromising on speed. Centralized management is made easy via Fortinet’s FortiCloud platform, offering cloud-based administration, and its user-friendly web interface simplifies configuration and management for users of all levels.
Specifications:
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 3 |
| Hardware Accelerated GE RJ45 POE/+ Ports | — |
| Hardware Accelerated GE SFP Slots | 1 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Antenna Ports (SMA) | 3 |
| Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Threat Protection Throughput | 1.1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.42 μs |
| Firewall Throughput (Packets Per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 720 000 |
| New Sessions/Second (TCP) | 85 000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
| Application Control Throughput (HTTP 64K) | 2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
| Virtual Domains (Default / Maximum) | 5/5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 216 x 160 |
| Weight | 2.2 lbs (1.0 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | |
| Power Consumption (Average / Maximum) | 12.5 W / 13.9 W |
| Heat Dissipation | 47.4 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ISED, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
| Radio Specifications | |
| Multiple User (MU) MIMO | 2 x 2 |
| Maximum Wi-Fi Speeds | 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
| Maximum Tx Power | 21.0 dBm per chain @ 2.4GHz, 19.5 dBm per chain @ 5GHz |
