Description

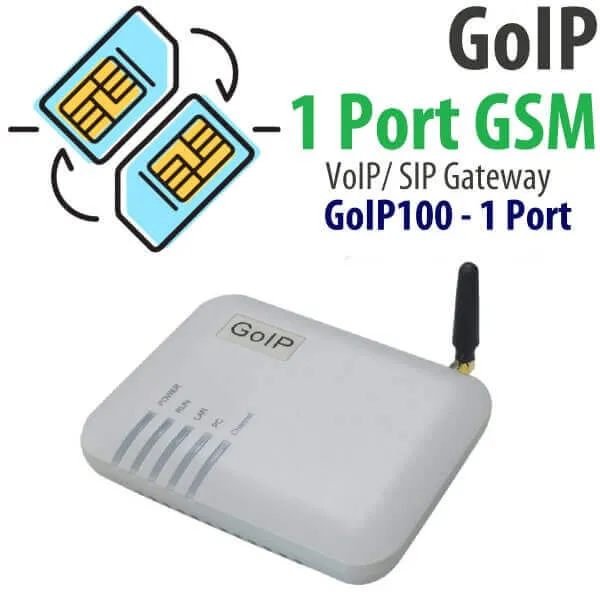

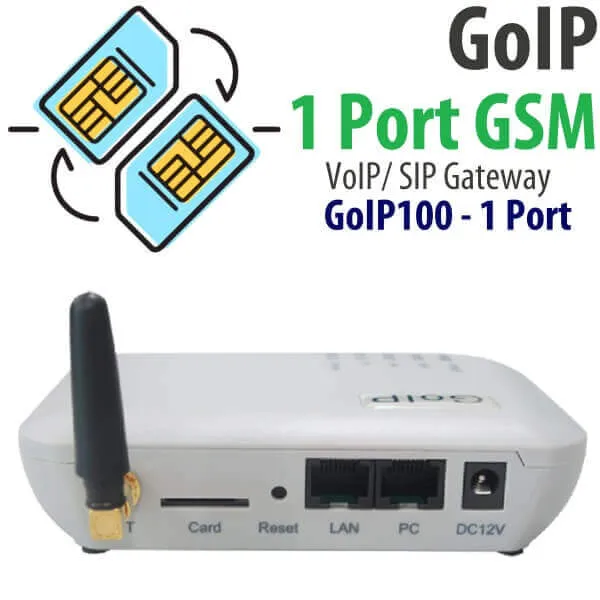

GoIP100 Single Port GSM Gateway Dubai

The Grey, magnificent GoIP100 Single Port GSM Gateway simply connects your GSM network to your VoIP network, thus enabling you to achieve both uplink and downlink calls between GSM and VoIP networks. Furthermore, GoIP Single Port GSM Gateway enables the transmission of the caller number between networks. It works perfectly with key phone systems and IP-PBX to provide users with GSM communications. GoIP single Port GSM Gateway has been configured to enable maximum compatibility with many leading professional platforms, thus making it perfect for deployment in multi-vendor open architecture VoIP networks. Compared to the conventional PSTN, GoIP100 1 Port GSM Gateway enables you to cut down on operational and maintenance costs.

GoIP100 1 Port GSM Gateway is equipped with rich SIP capabilities and H.323 protocols, making it a highly flexible device. It uses a bi-directional password authentication or calls authorization and trust list authentication to eliminate the risks of charge losses. The GoIP100 single Port GSM Gateway Dubai offers its users an excellent quality voice and powerful advanced features at a pocket-friendly price, making it the best solution for system integrators, traffic operators, and Softswitch manufacturers.

GoIP100 Single Port GSM Gateway Features

G168 ECHO CANCELLATION

The magnificent GoIP100 1 Port GSM Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the GoIP user is making any communications.

EXCELLENT AUDIO QUALITY

The GoIP100 1 Port GSM Gateway Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology, Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations.

SMART LED ALERTS

The GoIP 1 Port GSM Gateway is equipped with smart LEDs which alerts the user about the gadget’s power status, and other important functions such as WAN, PC, and GSM.

SIP V.2 CONVENIENCE

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. The GoIP 1 Port GSM Gateway can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server.

You can therefore easily connect your GoIP 1 Port GSM Gateway to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The GoIP100 1 Port GSM Gateway is based on SIP v2 (RFC 3261, 3162, 3163,3164) and works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.

QoS ABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in overall performance improvement for critical network traffic. This feature is very essential in eliminating delays in the GoIP 1 Port GSM Gateway whenever there are high volumes of traffic.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the GoIP 1 Port GSM Gateway uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics.

The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto-configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers, gateways, as well as end-user devices that connect to the Internet, such as set-top boxes, and devices such as the GoIP 1 Port GSM Gateway.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced GoIP100 1 Port GSM Gateway has the ability to deploy an information technology or telecommunications service by using embedded pre-deﬁned procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

THE MANAGEMENT PLATFORM

The GoIP100 GSM Gateway delivers convenience, reliability, and seamless integration through its Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come up during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in the upgrade, maintenance, and operational costs. The GoIP100 Single Port GSM Gateway is, thus, a perfect solution regardless of the variations in your company’s needs.

FLEXIBILITY

The GoIP100 1 Port GSM Gateway pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

Why the GoIP 1 Port GSM Gateway?

Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
Single or Multiple Server Registrations
Two 10/100 Ethernet for WAN / LAN connections
GSM module for making GSM calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high-performance ARM 9 Processor
Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos

GoIP100 1 Port GSM Gateway Specifications

Key Features : Voice Processor DSP VPDSP101 – 4 100MHz; Port 10/100 Base – T Ethernet WAN and LAN ; LED operational lights
RAM : 16M
Flash : 4M
Network Card : 100/10 Base – Tx
Power Consumption : 12V/DC
Weight : 0.1kg
Dimensions : 13*10*6(cm)
Operational Temperature : 0 – 45°C
Ambient humidity : 40 – 90%
Colour : Grey
SIM slots : 1
G168 Echo Cancellation : Supported
g723 : Supported
g711 A/u : Supported
GSM : Supported
PLC : Supported
CNG : Supported
VAD : Supported
Jitter Buffer : Supported
T.38 : Not supported
