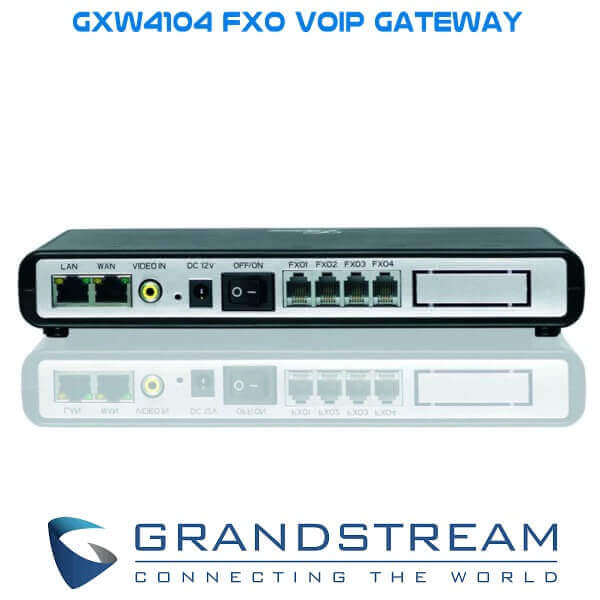

Grandstream GXW4104 FXO VoIP Gateway Dubai

The Grandstream GXW4104 Dubai is a powerful VoIP Gateway in Dubai that delivers an easy-to-deploy VoIP solution to businesses of all sizes. Grandstream GXW4104 FXO VOIP Gateway Dubai is equipped with 4 FXO ports, two 10/100 Mbps ports and supports SIP video through the H.264 codec. The Grandstream GXW4104 VoIP Gateway Dubai offers the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on-premise IP PBX network to make deployments as easy as possible. Grandstream GXW4104 Dubai is designed to meet the communication needs and requirements of a small enterprise, SOHO, remote offices and multi-location enterprises since it is a cost-effective, easy to deploy VoIP FXO solution.

Description

Grandstream GXW4104 FXO VoIP Gateway Dubai

Grandstream GXW4104 Dubai is an advanced low to mid-density analog gateway that features dual 10/100m network ports. It is equipped with an integrated router and many advanced telephony features. Other advanced features include comprehensive voice codecs and fax support with a flexible dial plan. Grandstream GXW-4104 Dubai has an integrated video surveillance port just so the user can incorporate IP-based surveillance cameras into their security system.

Grandstream GXW4104 VoIP Gateway Features

T.38 Fax – Compliant

The Grandstream GXW4104 VoIP Gateway Dubai is configured to support T.38 Fax which enables you to create Fax-over-IP. 38 is an ITU protocol that dictates how to fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.

Compatibility

Being fully compliant with SIP standards, the Grandstream GXW4104 VoIP Gateway Dubai has been designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based devices.

168 Echo Cancellation

Grandstream GXW4104 VoIP Gateway in Dubai uses an award-winning noises suppression technology known as Echo Cancellation to block out background noises so as to deliver crystal clear sounds during voice communications.

4 FXO Ports

Small businesses and remote locations can easily connect up to 4 PSTN lines to an existing IP PBX System or analog phone system. The Grandstream GXW4104 Dubai features 4 FXO ports allowing up to 4 lines to connect to the PSTN and 2 switched 10/100 Ethernet ports that can be routed to connect to the network.

Integrated Video Surveillance Port

The Grandstream GXW4104 VoIP Gateway Dubai is a highly efficient device that is equipped with a video surveillance port that allows for easy incorporation of Grandstream IP surveillance cameras into your network for maximum security.

Cloud Management

Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available on private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

Automated – Provisioning – TFTP/HTTP/HTTPS

The Grandstream GXW4104 VoIP Gateway Dubai has the ability to deploy an information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

Maximum Security

Grandstream GXW4104 VoIP Gateway Dubai uses a number of leading security protocols including TLS and SRTP security encryption technology to safeguard your VoIP accounts and calls from access by unauthorized persons and devices. This prevents the loss of important data or corruption of files due to access by malicious hackers.

Grandstream GXW4104 Key Features

  • 4 FXO port media gateway
  • Video surveillance port
  • External power supply
  • Two RJ-45 ports 10/100 Mbps (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts (choice of 3 profiles per account)
  • Programmable PSTN line settings for different countries/regions
  • 1 or 2 stage dialling
  • Caller ID
  • G.168 – echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • T.38 Fax compliant

Grandstream GXW4104 VoIP Gateway Specifications

IP TELEPHONY

  • VoIP Protocols: SIP
  • Voice Codecs: G.711a, G.711u, G.723, G.729, T.38
  • VoIP: Yes
  • Telephony Interfaces: 4 lines (FXO)
  • IP Telephony Features: adaptative jitter buffer, caller ID, echo cancellation (G.168)

NETWORKING

  • Type: VPN gateway
  • Connectivity Technology: wired
  • Data Link Protocol: Ethernet, Fast Ethernet
  • Network / Transport Protocol: PPPoE
  • Features: DiffServ support, NAT support, VLAN support, manageable, routing, switching, wall-mountable
  • Compliant Standards: IEEE 802.1Q, IEEE 802.1p
  • Ports Qty: 4
  • Remote Management Protocol: HTTP
  • Status Indicators: Port status, power

GENERAL

  • Height: 1.7 in
  • Depth: 6.8 in
  • Manufacturer: Grandstream

ENVIRONMENTAL PARAMETERS

  • Min Operating Temperature: 41 °F
  • Max Operating Temperature: 113 °F
  • Humidity Range Operating: 10 – 90%

DIMENSIONS & WEIGHT

  • Width: 8.9 in
  • Depth: 6.8 in
  • Height: 1.7 in
