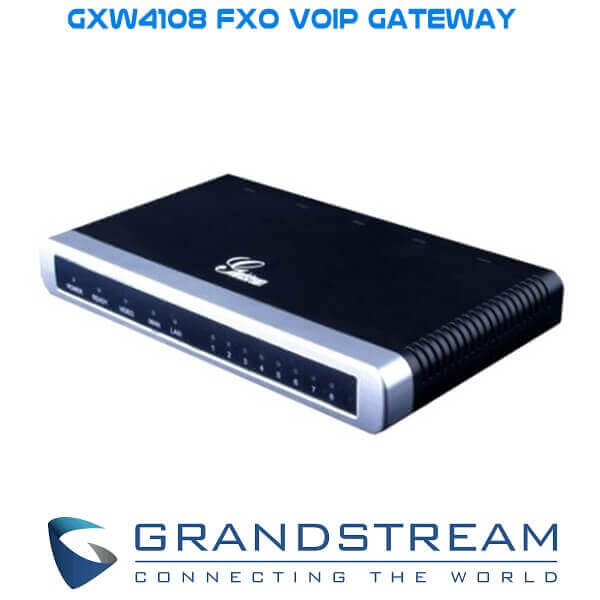

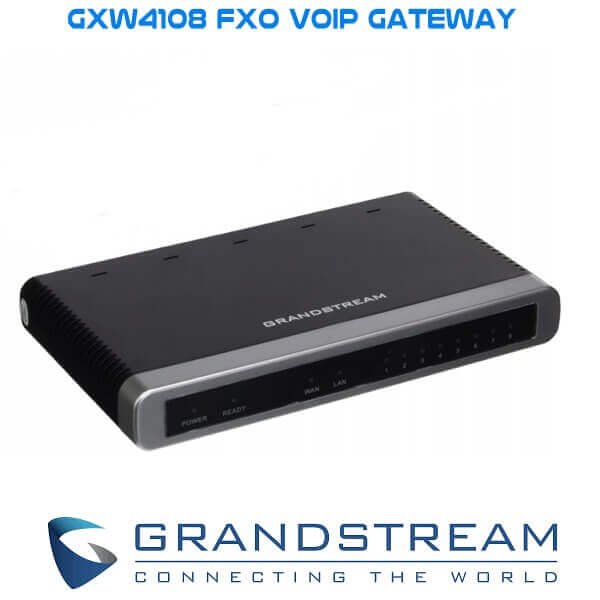

Grandstream GXW4108 FXO VOIP Gateway Dubai

Rating

Grandstream GXW4108 FXO VOIP Gateway Dubai

The Grandstream GXW4108 Dubai is a high performance VoIP Solution which offers the easiest possible deployment to all businesses regardless of their sizes. Grandstream GXW4108 FXO VOIP Gateway Dubai boasts of 8 FXO ports, two 10/100Mbps ports and is configured to support SIP video through H.264 compression codec. The easy-to-deploy Grandstream GXW4108 VoIP Gateway Dubai enables you to easily connect various different offices or multiple devices within the same office to any hosted or on-premise IP PBX network. Grandstream GXW4108 Dubai rich features make it an ideal VoIP solution for small-sized businesses, remote offices, SOHO, and offices based in different geographical locations. Grandstream GXW4108 Dubai is a cost-effective VoIP solution that boosts productivity in the office.

Description

Grandstream GXW4108 FXO VOIP Gateway Dubai

Grandstream GXW4108 Dubai is a medium-density analog gateway that comes with an integrated router and advanced telephony features. Some of these rich telephony features include a flexible dial plan, fax support, comprehensive voice codecs, and many others. Grandstream GXW4108 VoIP Gateway Dubai is equipped with a video surveillance port that enables you to incorporate other IP-based surveillance cameras into your security system.

Grandstream GXW4108 Features

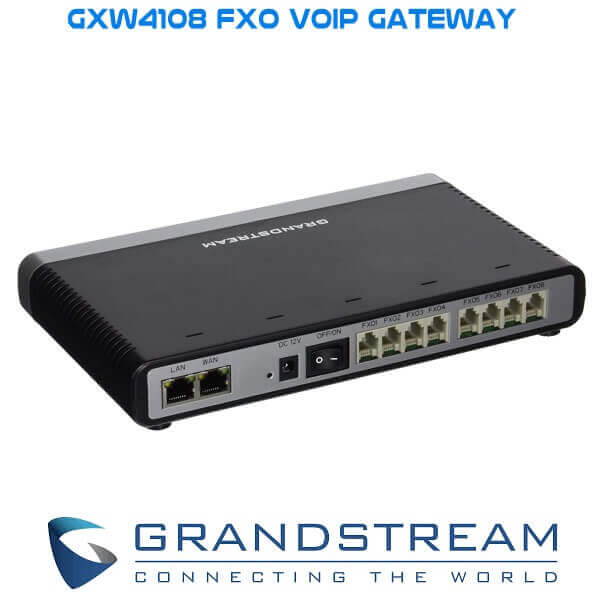

8 FXO Ports

Small businesses and remote locations can easily connect up to 8 PSTN lines to an existing IP PBX System or analog phone system. The Grandstream GXW4108 VoIP Gateway Dubai features 8 FXO ports allowing up to 8 lines to connect to the PSTN and 2 switched 10/100 Ethernet ports that can be routed to connect to the network.

Integrated Video Surveillance Port

The Grandstream GXW4108 VoIP Gateway Dubai is a highly efficient device that is equipped with a video surveillance port that allows for easy incorporation of Grandstream IP surveillance cameras into your network to deliver you maximum security.

38 Fax – Compliant

The Grandstream GXW4108 VoIP Gateway Dubai is configured to support T.38 Fax which enables you to create Fax-over-IP. 38 is an ITU protocol that dictates how fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.

Compatibility

Being fully compliant with SIP standards, the Grandstream GXW4108 VoIP Gateway Dubai has been designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based devices.

G.168 Echo Cancellation

Grandstream GXW4108 VoIP Gateway in Dubai uses an award-winning noises suppression technology known as Echo Cancellation to block out background noises so as to deliver crystal clear sounds during voice communications.

Cloud Management

Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available on private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

Automated – Provisioning – TFTP/HTTP/HTTPS

The Grandstream GXW4108 VoIP Gateway Dubai has the ability to deploy an information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

Maximum Security

Grandstream GXW4108 VoIP Gateway Dubai uses a number of leading security protocols including TLS and SRTP security encryption technology to safeguard your VoIP accounts and calls from access by unauthorized persons and devices. This prevents the loss of important data or corruption of files due to access by malicious hackers.

Grandstream GXW4108 Key Features

  • 8 FXO port media gateway
  • Video surveillance port
  • External power supply
  • Two RJ-45 ports 10/100 Mbps (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts (choice of 3 profiles per account)
  • Programmable PSTN line settings for different countries/regions
  • 1 or 2 stage dialling
  • Caller ID
  • 168 – echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • 38 Fax compliant

Grandstream GXW4108 Specifications

Telephone Interfaces

  • 8 RJ11 FXO ports

Network Interfaces

  • 10M/100Mbps, dual RJ45 ports

LED indicators

  • Power, Network and Line LEDs

Voice-over-Packet Capabilities

  • 168 compliant Echo Cancelation, Dynamic Jitter Buffer, Modern detection & auto-switch G.711

PTSN Fail-over LifeLine

  • PTSN failover on power failure

Voice Compression

  • 711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC

DHCP Client

  • Yes, Switched Mode or PPPoE

Fax over IP

  • 38 compliant Group 3 Fax Relay up to 14.4kpbs & auto-switch to G.711 for Fax Pass-through

QoS

  • Diffserv, TOS, 802.1P/Q VLAN tagging

IP Transport

  • RTP/RTCP

DTMF Method

  • flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info

IP Signaling

  • SIP (RFC 3261)

SIP Server Profiles & Accounts Per System

  • Up to 2 distinct SIP server profiles per system and independent SIP account per port

Provisioning

  • TFTP and HTTP

Media

  • SRTP

Management

  • Syslog support, HTTPS, telnet, remote management using web browser

Power

  • Output: 12VDC Input: 100-240VAC / 50-60Hz

Environmental

  • Operational: 32-104°F or 0-40°C
  • Storage: 14-140°F or -10-60°C
  • Humidity: 10-90% Non-condensing

Dimensions (LxWxH)

  • 230mm x 135mm x 35mm

Mounting

  • Wall mount and desktop

Short & Long Haul

  • REN3: Up to 150ft on 24AWG line

Caller ID

  • Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID

Polarity Reversal/Wink

  • Yes

EMC

  • EN55022/EN5504 and FCC part 15 Class B
