Description

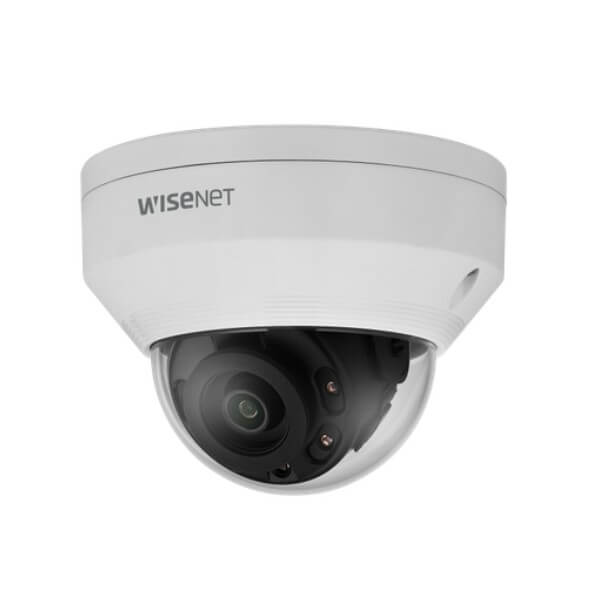

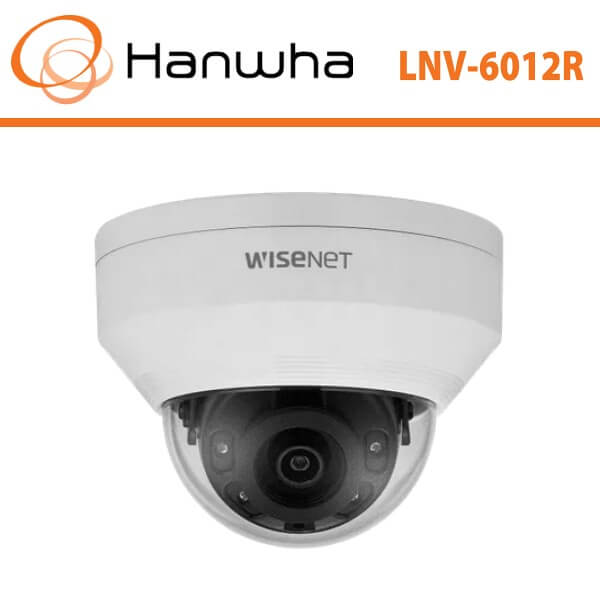

Hanwha LNV6012R Vandal Dome Camera
The Hanwha LNV6012R is a high-performance, vandal-resistant dome camera, engineered to deliver exceptional surveillance in demanding environments. This camera stands out with its outstanding image clarity, robust construction, and advanced security features, making it an ideal choice for modern surveillance needs.
Wide-Angle Coverage with Fixed Lens
Equipped with a fixed 2.8mm lens, the LNV6012R provides an impressive horizontal field of view of approximately 113°. This wide coverage ensures comprehensive monitoring of large areas, such as open spaces, entryways, hallways, and public spaces, enhancing visibility and overall surveillance effectiveness.
Advanced Infrared Night Vision
The LNV6012R incorporates infrared (IR) LEDs, which deliver clear, high-quality images even in low-light or complete darkness. With an effective infrared range of up to 20 meters, the camera ensures uninterrupted surveillance, day or night, and is crucial for maintaining security 24/7 in critical locations.
Wide Dynamic Range (WDR) Technology
The camera features Wide Dynamic Range (WDR) technology with a 120dB capability, allowing it to handle challenging lighting conditions. By balancing bright and dark areas within a frame, WDR ensures optimal image clarity, making it ideal for environments with high contrasts, such as areas with intense backlighting or deep shadows.
Onboard Edge Storage
For added reliability, the LNV6012R is equipped with a micro SD/SDHC/SDXC card slot, enabling edge storage. This feature guarantees continuous video recording even if there’s a network failure, ensuring that vital footage is securely stored without disruption.
Intelligent Video Analytics
The Hanwha LNV6012R integrates cutting-edge video analytics, providing proactive security alerts to enhance situational awareness:
- Motion Detection: Notifies security personnel of movement in designated areas.
- Intrusion Detection: Quickly identifies unauthorized access in restricted zones.
- Tampering Detection: Sends alerts when the camera is physically interfered with.
These intelligent analytics significantly improve the detection and management of security incidents, reducing false alarms and enhancing the overall effectiveness of security operations.
Key Features
- Maximum 2MP resolution
- Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
- 2.8mm fixed focal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 114° / V: 62° / D: 135° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3×91.7mm(ø4.74×3.61″), 410g |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.28ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.91ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.46ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.23ft) |
