Description

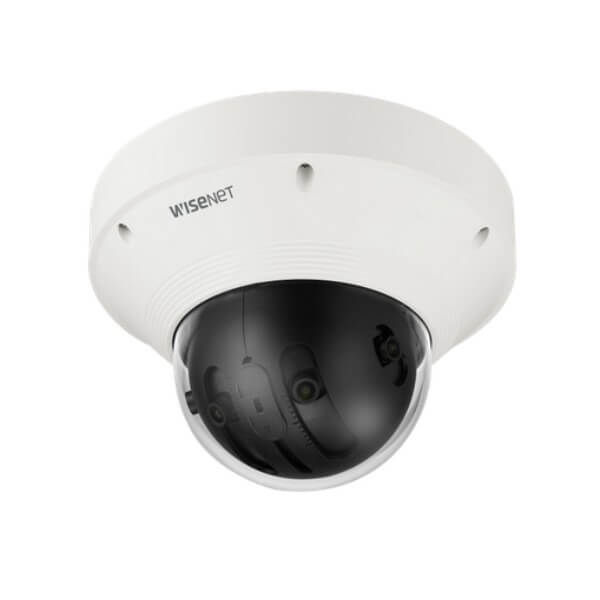

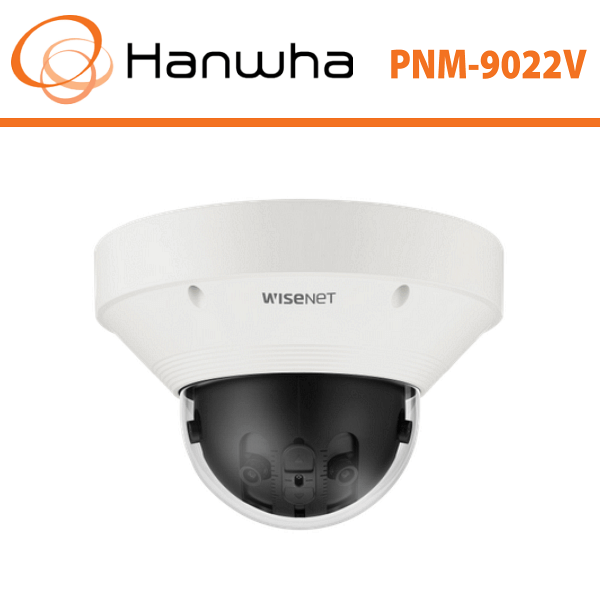

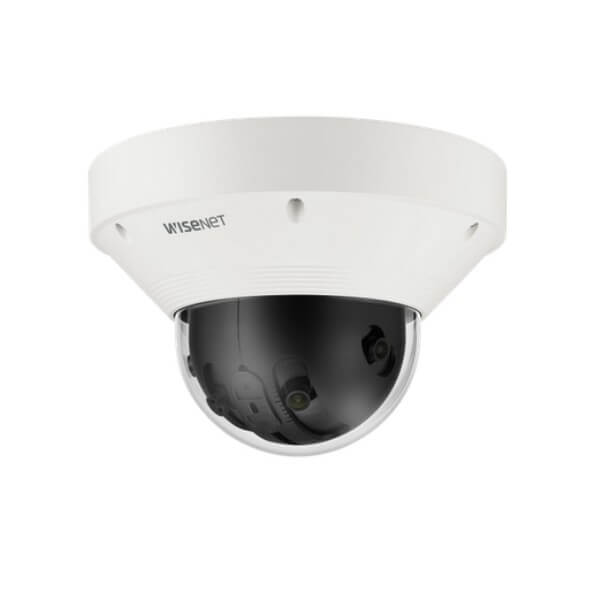

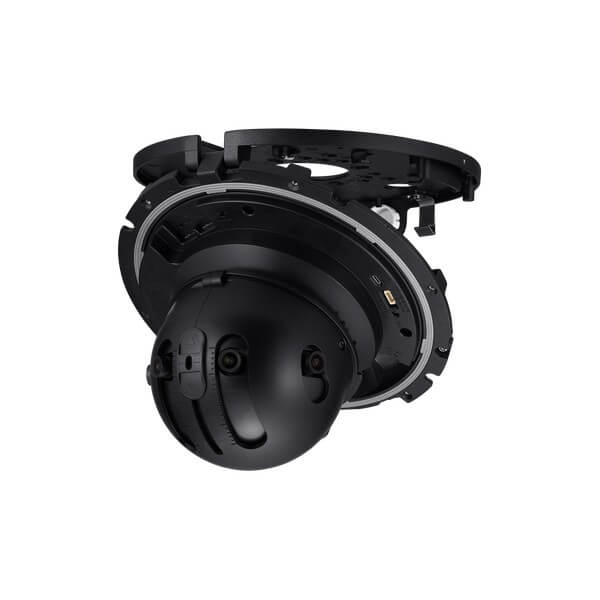

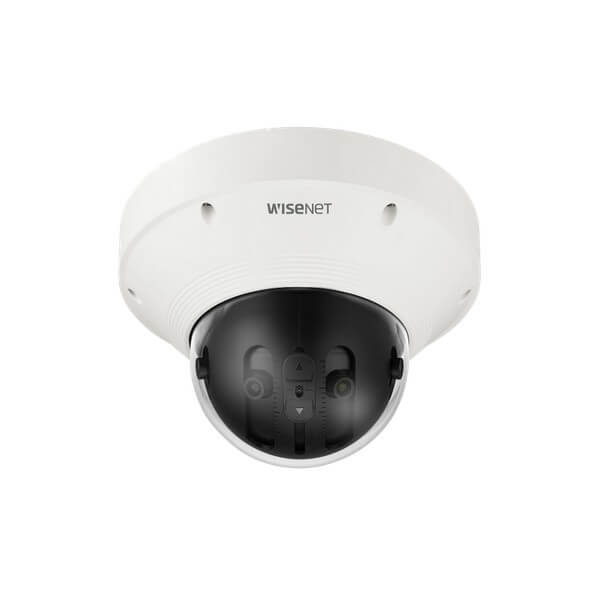

Hanwha PNM-9022V Multi-Directional CCTV Camera
The Hanwha PNM-9022V Multi-Directional CCTV Camera, formerly part of the Samsung CCTV lineup, is a state-of-the-art security solution designed for high-performance, wide-area surveillance. Engineered with four independently adjustable 5-megapixel sensors, this advanced multi-sensor camera delivers a combined ultra-high-definition resolution of 8K, ensuring exceptional image clarity across multiple angles simultaneously.
Ideal for monitoring expansive environments such as airports, shopping malls, stadiums, and city intersections, the PNM-9022V provides comprehensive coverage with reduced blind spots—minimizing the need for multiple camera installations. Its built-in AI-based video analytics enhance situational awareness by enabling features such as object detection, motion tracking, people counting, and loitering alerts. These intelligent capabilities help security teams respond faster and more effectively to potential threats.
With its robust design, intuitive configuration, and superior image quality, the Hanwha PNM-9022V stands out as a premium surveillance camera tailored for demanding security applications. Whether you’re upgrading an existing system or deploying a new one, this multi-directional camera offers an efficient, future-proof solution to safeguard your assets with confidence.
Features
8K Ultra-HD Multi-Directional Imaging
The PNM-9022V is equipped with four 5MP sensors, delivering stunning 8K video quality while allowing users to monitor four independent views simultaneously. This eliminates the need for multiple cameras, reducing installation costs while improving situational awareness.
AI-Powered Deep Learning Analytics
Integrated deep learning AI analytics enable precise object classification, distinguishing between humans, vehicles, and other objects. It supports motion tracking, intrusion detection, loitering alerts, and virtual line crossing, enhancing real-time security monitoring.
Rugged Weatherproof and Vandal-Resistant Housing
The IP66 weatherproof and IK10 impact-resistant housing ensures continuous operation in harsh outdoor environments, making it ideal for securing high-traffic areas and critical infrastructure.
Smart IR Night Vision
Featuring adaptive infrared (IR) illumination, the PNM-9022V ensures clear video footage even in total darkness, offering enhanced low-light performance without overexposure.
Optimized Bandwidth and Storage Efficiency
With H.265 video compression, the PNM-9022V minimizes bandwidth consumption while maintaining high-quality footage, allowing for longer recording times and cost-effective data management.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), this camera simplifies installation by reducing cabling requirements. ONVIF compliance ensures seamless integration with leading video management systems (VMS) for enhanced operational efficiency.
Key Specifications:
- 8K Ultra HD (four 5MP sensors)
- AI-powered analytics: Human/vehicle classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
- Multi-Directional Monitoring: 360° panoramic coverage with independent views
- Infrared Night Vision: Smart IR for low-light performance
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Ideal Use Cases:
- Smart city and urban security monitoring
- Airports, seaports, and large transportation hubs
- Industrial and perimeter security
- Critical infrastructure protection
- Commercial and high-security facility surveillance
Related Products:
- Hanwha PNM-9085RQZ
- Hanwha PNM-C12083RVD
- Hanwha XNP-8250R
Choose the Hanwha PNM-9022V Multi-Directional CCTV Camera for high-resolution, AI-powered surveillance, ensuring complete 360° security coverage with superior video quality and advanced object detection.
