Description

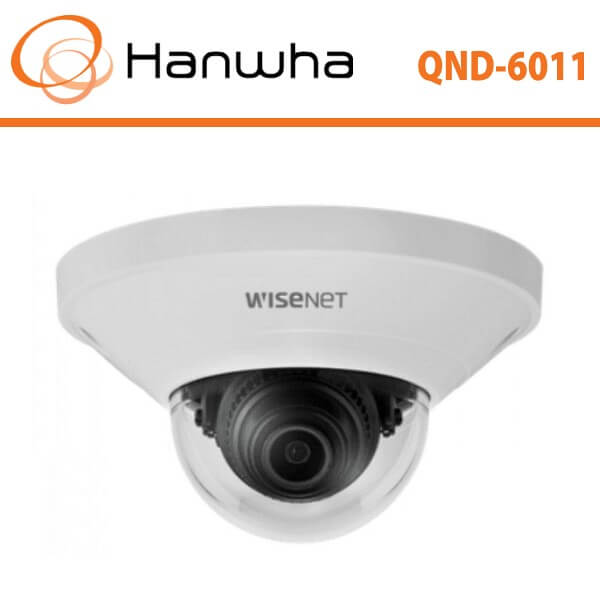

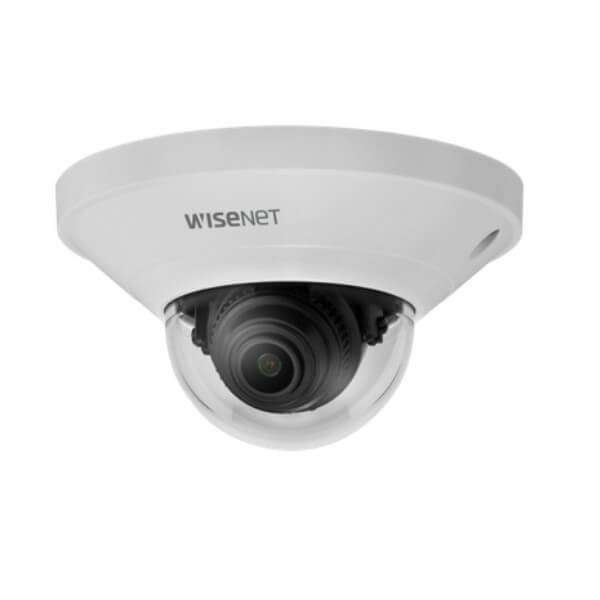

Hanwha QND6011 Indoor Dome Camera
The Hanwha QND6011 mini indoor dome camera is a cutting-edge surveillance solution designed for indoor security applications. Combining a compact, discreet design with high-performance imaging and intelligent analytics, this camera is ideal for retail stores, office spaces, lobbies, and other indoor environments that require reliable, high-quality video monitoring.
Key Features & Benefits
Wide-Angle Optimized Lens for Maximum Coverage
Equipped with a fixed 2.8mm lens, the QND6011 delivers a broad field of view, making it perfect for monitoring entrances, hallways, reception areas, and high-traffic zones. This wide-angle lens ensures clear, distortion-free imaging, allowing security personnel to capture critical details with ease.
Advanced WDR Technology for Superior Image Clarity
The camera features 120dB Wide Dynamic Range (WDR) technology, which significantly enhances video quality in challenging lighting conditions. Whether monitoring an entrance with direct sunlight exposure or an area with high contrast between bright and dark sections, WDR ensures sharp, well-balanced images without overexposure or loss of detail.
Reliable Edge Storage for Continuous Recording
To prevent data loss in case of network failures, the Hanwha QND6011 comes with a built-in micro SD/SDHC/SDXC card slot, providing local storage backup. This feature ensures uninterrupted video recording and redundancy, making it a dependable security solution for mission-critical environments.
Seamless Integration with Existing Security Systems
The QND6011 is ONVIF-compliant and integrates effortlessly with leading Video Management Systems (VMS) and Network Video Recorders (NVRs). This broad compatibility simplifies deployment within existing security infrastructures, offering enhanced scalability and flexibility for businesses and organizations.
Compact, Discreet, and Easy to Install
Designed for discreet surveillance, the mini dome form factor allows the camera to blend seamlessly into indoor spaces without drawing attention. Its user-friendly interface and simple mounting options enable quick installation and hassle-free maintenance, making it an excellent choice for businesses looking for cost-effective security solutions.
Intelligent Surveillance Analytics for Proactive Monitoring
The Hanwha QND6011 Indoor Dome Camera goes beyond basic video recording by incorporating intelligent video analytics, helping security teams detect and respond to potential threats in real time.
-
Motion Detection – Instantly alerts operators when movement is detected, enhancing security in high-traffic areas.
-
Tampering Detection – Notifies security personnel if the camera is covered, moved, or obstructed, ensuring continuous surveillance.
-
Defocus Detection – Monitors and alerts users if the camera’s focus is compromised, maintaining optimal image clarity.
Why Choose the Hanwha QND6011?
Whether you’re securing a retail store, corporate office, school, or healthcare facility, the Hanwha QND6011 Indoor Dome Camera delivers high-definition surveillance with intelligent features, ensuring comprehensive indoor monitoring. With its advanced imaging, smart analytics, and seamless integration, this camera provides an efficient, reliable, and future-proof security solution for modern surveillance needs.
Key Features
- 2 Megapixel resolution
- Built-in 2.8mm fixed lens
- Ultra-compact design
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Motion detection, Tampering detection
- People counting for retail business intelligence
- micro SD (128GB) memory slot, PoE / 12V DC
- Hallway view support
- IP42, IK08 rated
- LDC support (Lens Distortion Correction)
- Genetec Stratocast compatible
SPECIFICATIONS
Imaging Device | 1/2.8″ 2MP CMOS |
Effective Pixels | 1920(H)x1080(V) |
NETD | None |
Pixel Size | None |
Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) |
Video Out | None |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
Min. Object Distance | None |
Focus Control | Fixed |
Lens Type | None |
Mount Type | None |
Optional Lens | None |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
Pan Range | None |
Pan Speed | None |
Tilt Range | None |
Tilt Speed | None |
Rotate Range | None |
Sequence | None |
Preset Accuracy | None |
Azimuth | None |
Auto Tracking | None |
Operational | |
IR Viewable Length | None |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(Electrical) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Digital Image Stabilization | None |
Defog | None |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Digital PTZ | None |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Defocus detection, Motion detection, Tampering |
Business Intelligence | People counting |
Serial Interface | None |
Alarm I/O | None |
Alarm Triggers | Analytics, Network disconnect |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
Audio In | None |
Audio Out | None |
IR Illuminator (Optional) | None |
Wiper | None |
Coaxial Protocol | None |
Video Transmission Distance | None |
Radiometry | |
Temperature detect range | None |
Temperature accuracy | None |
Temperature detection | None |
Additional | None |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
Smart Codec | WiseStreamⅡ |
Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Audio Compression | None |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
Memory | 512MB RAM, 256MB Flash |
Environmental | |
Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
Certification | IP42, IK08 |
Electrical | |
Input Voltage | PoE(IEEE802.3af, Class2) |
Power Consumption | PoE: Max 4.80W, typical 2.80W |
Mechanical | |
Color / Material | White / Plastic |
RAL Code | RAL9003 |
Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
Conduit hole | None |
Hanging mount(Dome) | None |
Skin cover(Dome) | None |
Weather cap(Dome) | None |
Power module | None |
Backbox | None |
DORI | |
Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
