Description

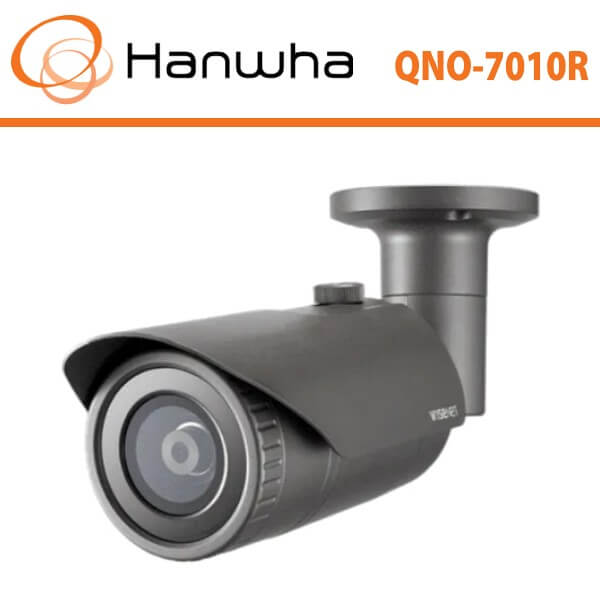

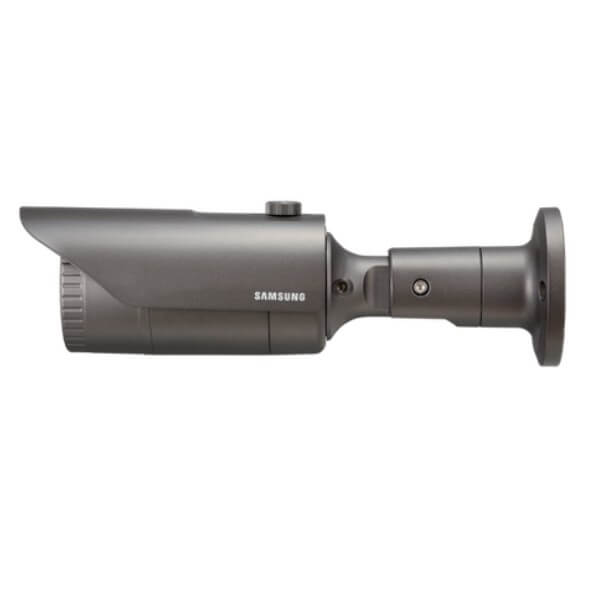

Hanwha QNO7010R Bullet Camera
The Hanwha QNO7010R is a cutting-edge 4MP network bullet camera designed to provide exceptional security monitoring in a wide range of outdoor environments. Whether for commercial establishments, educational institutions, industrial facilities, public spaces, or residential complexes, this camera ensures crystal-clear surveillance footage with advanced imaging technologies and robust durability.
Ultra-Clear 4MP Image Quality
Powered by a 1/3-inch 4MP progressive CMOS sensor, the Hanwha QNO7010R captures high-resolution footage at 2560 x 1440 pixels, delivering outstanding image clarity. Thanks to advanced image processing and true-to-life color reproduction, security operators can effectively identify key details such as faces, license plates, and other critical elements in the surveillance area.
Smart Infrared Night Vision (IR)
The integrated IR LED illuminators enhance nighttime surveillance, providing a clear view up to 30 meters (98 feet) in complete darkness. Featuring intelligent IR adjustment technology, the camera prevents overexposure and ensures even illumination across the entire frame. This means you get sharp, well-balanced nighttime footage, even in low-light or pitch-black conditions.
Rugged & Weatherproof Design
Built to withstand extreme conditions, the Hanwha QNO7010R features a rugged aluminum housing with IP66 and IK10 ratings, ensuring waterproof, dustproof, and vandal-resistant protection. This makes it an ideal choice for outdoor installations, even in harsh weather conditions or high-risk areas where durability is crucial.
Wide Dynamic Range (WDR) & Defog Technology
Equipped with 120dB Wide Dynamic Range (WDR), this camera effectively handles high-contrast lighting environments, ensuring clear and detailed images in both bright and dark areas. The built-in defog feature enhances visibility in foggy, smoggy, or rainy conditions, providing uninterrupted security monitoring regardless of the weather.
Why Choose the Hanwha QNO7010R?
- High-definition 4MP imaging for precise surveillance
- Smart IR technology for enhanced low-light visibility
- Rugged weatherproof and vandal-proof housing (IP66 & IK10)
- Advanced WDR and defog technology for clear images in any condition
- Ideal for outdoor commercial, industrial, and residential security applications
The Hanwha QNO7010R is a powerful, feature-packed CCTV bullet camera that ensures superior surveillance performance in demanding environments. Whether you’re securing a business, school, public space, or private property, this camera provides unmatched reliability, clarity, and durability—making it a top choice for professional security applications.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ 4MP CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.5Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 110.0° / V: 63.0° / D: 128.0° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Resolution | 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅠ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | None |
| Product dimensions / weight | Ø70.0×246.0mm(Ø2.76×9.69″), 730g(1.61 lb) |
