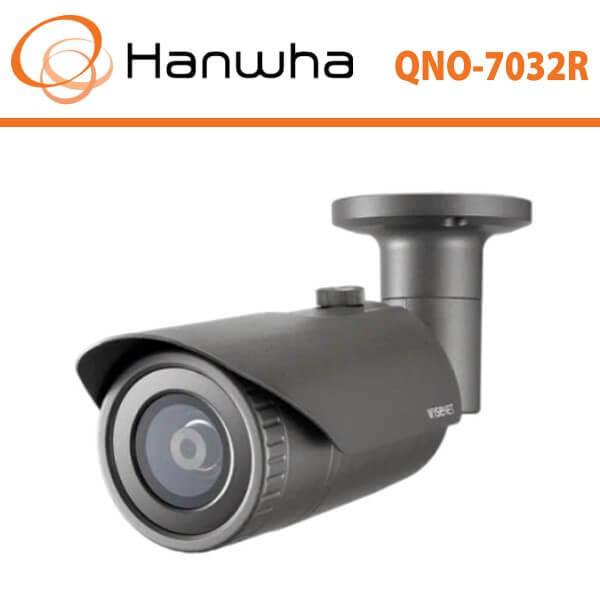

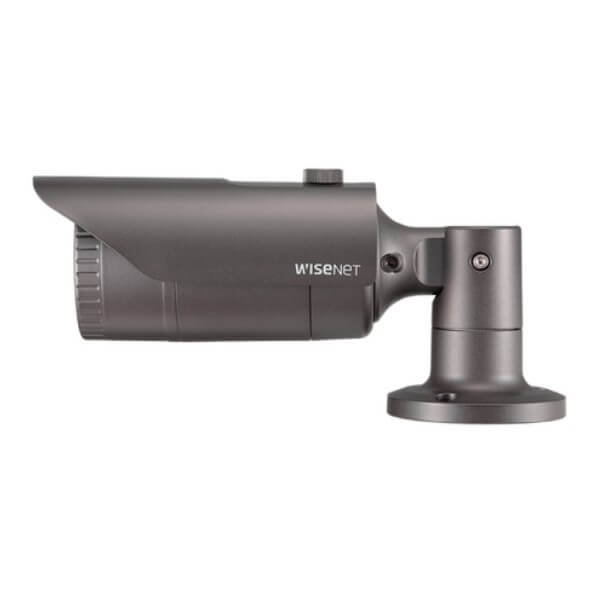

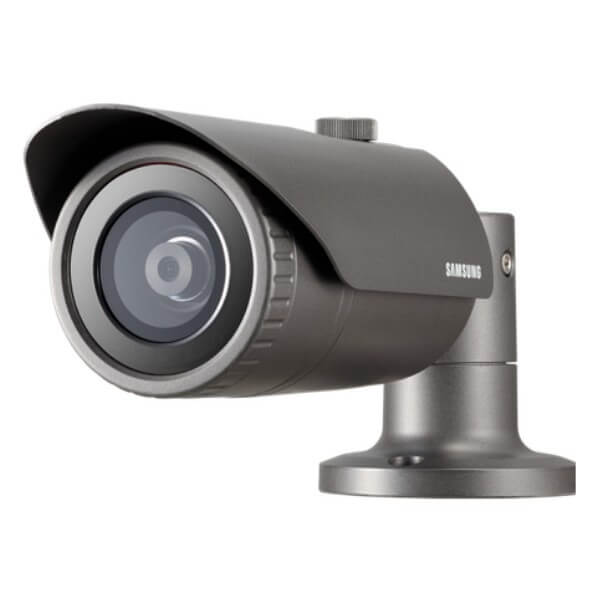

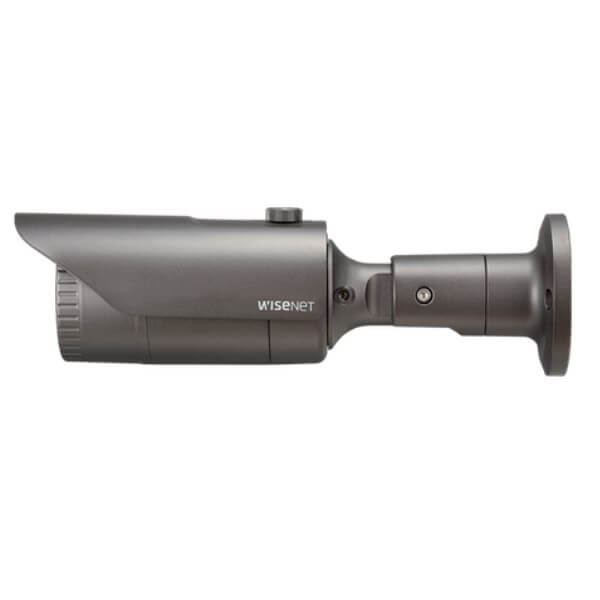

Hanwha QNO7032R Bullet Camera

Rating

Hanwha QNO7032R

The Hanwha QNO7032R bullet camera is engineered to deliver top-tier surveillance performance, making it an ideal choice for commercial, residential, and institutional security applications.

Description

Hanwha QNO7032R Bullet Camera

The Hanwha QNO7032R bullet camera is engineered to deliver top-tier surveillance performance, making it an ideal choice for commercial, residential, and institutional security applications. With its advanced imaging technology, night vision capabilities, and intelligent analytics, this camera ensures reliable monitoring and enhanced situational awareness in diverse environments.

Key Features of the Hanwha QNO7032R

Fixed 6mm Lens for Precision Monitoring

Equipped with a 6mm fixed lens, the QNO7032R provides a 51° horizontal field of view, ensuring sharp and clear monitoring of key areas such as:

  • Entry points and exits

  • Driveways and perimeters

  • High-traffic zones requiring focused surveillance

This optimized coverage allows for the capture of crucial details without distortion, enhancing security effectiveness.

Superior Image Quality with 120dB WDR

The camera integrates 120dB Wide Dynamic Range (WDR) technology, allowing it to balance light and dark areas within a single frame. This ensures clear and detailed footage even in challenging lighting conditions, such as:

  • Sunlight glare at entrances

  • Low-light indoor environments

  • High-contrast outdoor scenes

Infrared Night Vision – 24/7 Surveillance

With infrared (IR) night vision capabilities extending up to 30 meters, the Hanwha QNO7032R ensures high-quality video recording in complete darkness. This feature is particularly useful for locations requiring uninterrupted nighttime surveillance, including:

  • Parking lots and garages

  • Warehouses and industrial sites

  • Remote outdoor areas

AI-Powered Video Analytics for Enhanced Security

The built-in intelligent video analytics of the QNO7032R significantly improves security monitoring by providing real-time alerts and automation. Key analytics features include:

  • Motion Detection – Identifies movement and triggers alerts
  • Virtual Line Detection – Monitors predefined zones for unauthorized access
  • Intrusion Detection – Alerts when objects or people enter restricted areas
  • Defocus Detection – Ensures video clarity and detects tampering

These advanced features help security teams respond swiftly to potential threats, reducing risks and enhancing operational efficiency.

Efficient Video Compression Technology

To optimize storage and bandwidth usage, the QNO7032R supports multiple video compression formats, including:

  • H.265 – Maximizes storage efficiency while maintaining high-quality video
  • H.264 – Ensures compatibility with various security systems
  • MJPEG – Provides flexible recording and streaming options

This advanced compression reduces data usage and storage costs while maintaining superior image quality.

Seamless Integration & ONVIF Compliance

Designed for effortless integration, the Hanwha QNO7032R is fully compatible with major Video Management Systems (VMS) and Network Video Recorders (NVRs). Its ONVIF compliance ensures interoperability with third-party security systems, making it a scalable and future-proof investment.

Ideal Applications for the Hanwha QNO7032R

Thanks to its rugged design, powerful features, and ease of deployment, the QNO7032R is suited for various security applications, including:

  • Retail & Commercial Security – Protect storefronts, entrances, and customer areas
  • Educational Institutions – Enhance campus security and monitor school perimeters
  • Industrial & Manufacturing Sites – Ensure workplace safety and operational monitoring
  • Government & Institutional Buildings – Safeguard sensitive locations and public facilities

Why Choose the Hanwha QNO7032R for Your Security Needs?

With its exceptional imaging, intelligent analytics, and seamless integration, the Hanwha QNO7032R bullet camera is a reliable, high-performance security solution. Whether for businesses, public institutions, or residential properties, this camera delivers clear, uninterrupted surveillance with advanced monitoring capabilities.

Upgrade Your Security Today

Enhance your surveillance strategy with the Hanwha QNO7032R and experience unparalleled security performance. Contact us for more details on how this camera can fit your security requirements.

SPECIFICATION

Video
Imaging Device 1/3″ CMOS
Resolution 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps (@4MP Max. 2fps)
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
B/W : 0Lux (IR LED On)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio) 6.0mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 49°, V: 28°, D: 56°˚
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / 0°~100° / 0°~360°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover(PTZ preset)
Audio In Selectable(mic in/line in)
Light Type IR LED (850nm)
Light Viewable Length 30m (98.42ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH
*Start up should be done at -30°C or above
Storage Temperature / Humidity -40°C~+60°C (-40°F~+140°F) / 0~95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10.7W, typical 8W
12VDC: Max 9.1W, typical 6.8W
Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb)
Compatible Conduit hole / Gangbox Single, Double, 4″Octagon
Backbox SBO-100B1, SBO-147B
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 112.3m(368.60ft)
Observe (63PPM/ 19PPF) 44.9m(147.44ft)
Recognize (125PPM/ 38PPF) 22.5m(73.72ft)
Identify (250PPM/ 76PPF) 11.2m(36.86ft)
