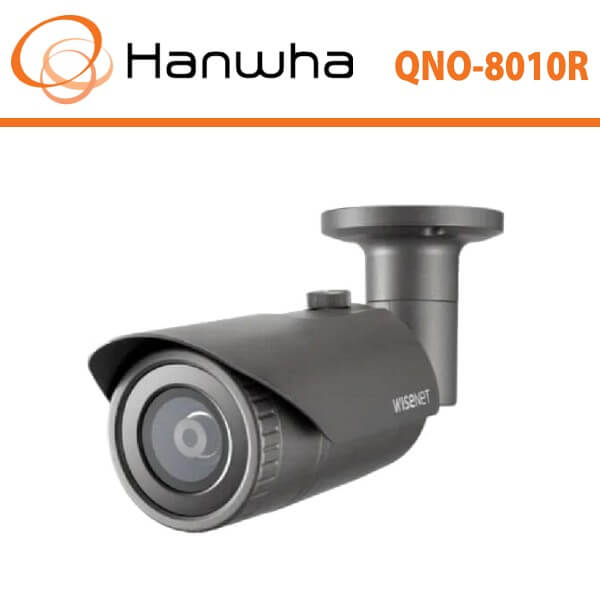

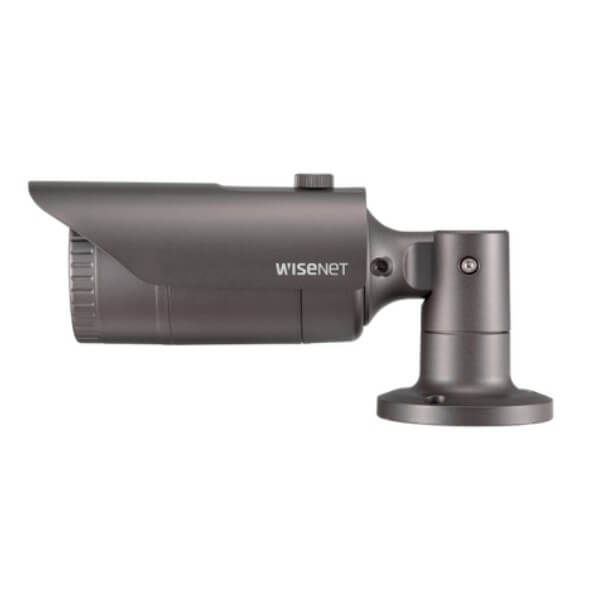

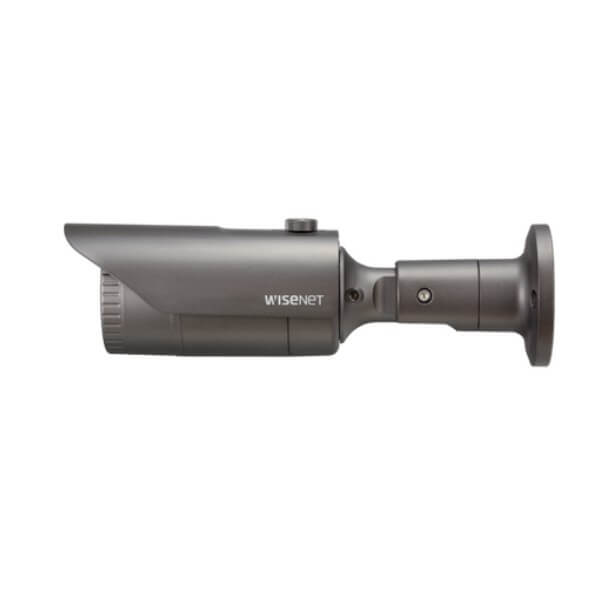

Hanwha QNO8010R IR Bullet Camera

The Hanwha QNO8010R Bullet Camera is a top-tier security solution designed for businesses and homeowners seeking high-resolution video surveillance without exceeding their budget. Part of Hanwha’s cost-effective product lineup, this 5MP security camera delivers crystal-clear images, advanced night vision, and smart analytics, making it an excellent choice for enhanced security and monitoring.

Key Features

Ultra-Clear 5MP Resolution for Superior Image Quality

Equipped with a 5-megapixel CMOS sensor (2592×1944 pixels), the Hanwha QNO8010R produces high-definition video that captures intricate details, such as faces, license plates, and small objects. The higher resolution compared to standard Full HD cameras ensures precise monitoring and detailed evidence collection, making it ideal for businesses, parking lots, and high-security areas.

Wide-Angle Coverage for Maximum Visibility

The 2.8mm fixed lens provides a broad field of view, reducing blind spots and ensuring comprehensive area coverage. This feature is crucial for monitoring large spaces, such as warehouses, parking areas, and office entrances, without the need for multiple cameras.

Advanced Night Vision with Smart IR Technology

Security doesn’t stop when the sun sets. The built-in IR LEDs enable clear night-time surveillance up to 20 meters (65 feet), ensuring round-the-clock visibility even in total darkness. Intelligent IR technology prevents overexposure, delivering balanced brightness for clear and detailed nighttime footage.

Built to Withstand Harsh Environments – IP66 Rated

The Hanwha QNO8010R is engineered for reliable outdoor and indoor use, featuring an IP66-rated weatherproof housing that protects against rain, dust, and extreme temperatures. This ensures consistent performance in any environmental conditions, making it a long-term security investment for homes and businesses.

120dB Wide Dynamic Range (WDR) for Perfect Lighting Balance

Equipped with 120dB Wide Dynamic Range (WDR), this camera balances bright highlights and deep shadows, ensuring optimal image clarity even in challenging lighting conditions such as backlit entrances, storefronts, and parking lots.

Smart Bandwidth Optimization with H.265 Compression

Reduce storage and bandwidth costs without sacrificing video quality! The Hanwha QNO8010R supports H.265 video compression, which efficiently encodes video footage, extending recording retention times and minimizing network congestion—ideal for businesses with multiple cameras.

Plug & Play Installation with PoE (Power over Ethernet)

Designed for hassle-free installation, this camera supports PoE (Power over Ethernet), allowing both power and data transmission through a single cable. This simplifies the setup process, making it perfect for DIY installations and professional security deployments.

Smart Security with Intelligent Video Analytics

Take your security to the next level with built-in AI-powered video analytics, including:
Motion Detection – Alerts for any unauthorized movement
Tampering Detection – Triggers alarms if the camera is obstructed
Defocus Detection – Ensures video remains sharp and focused

These proactive security features help businesses and homeowners stay one step ahead of potential threats.

Why Choose Hanwha QNO8010R?

High-Resolution 5MP Imaging – Superior video quality for crystal-clear footage
Infrared Night Vision – Round-the-clock monitoring, even in total darkness
Weatherproof & Durable – Reliable performance in extreme conditions
Smart Video Compression – Reduced storage costs & extended retention
AI-Powered Analytics – Intelligent monitoring for better security

Upgrade Your Security with Hanwha QNO8010R Today!

Whether you need business surveillance or home security, the Hanwha QNO8010R Bullet Camera offers the perfect balance of affordability, durability, and cutting-edge technology. Secure your property with high-performance video surveillance

SPECIFICATIONS

Show > Ver	1
Show > Imaging Device	1/2.8″ CMOS
Show > Resolution	5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Hide > Max. Resolution	2592×1944
Hide > Max. Resolution(MP)	5MP
Show > Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@5MP Max. 2fps)
Show > NETD	None
Show > Pixel Size	None
Show > Min. Illumination	Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Show > Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Show > Video Transmission Distance	None
Show > Focal Length (Zoom Ratio)	2.8mm fixed focal
Hide > Max. Focal Length	2.8
Hide > Min. Focal Length	2.8
Hide > Zoom Ratio	None
Hide > Focal Type	Fixed
Show > Max. Aperture Ratio	F2.0
Show > Angular Field of View	H: 105°/ V: 77°/ D: 136°
Hide > Max. Horizontal Angle	105
Hide > Min. Horizontal Angle	105
Hide > Max. Vertical Angle	77
Hide > Min. Vertical Angle	77
Show > Min. Object Distance	None
Show > Focus Control	Fixed
Show > Lens Type	None
Show > Mount Type	None
Show > Optional Lens	None
Show > Pan / Tilt / Rotate Range	0°~360° / 0°~100° / 0°~360°
Hide > Max. Tilt Angle	100
Hide	Min. Tilt Angle
Show > Pan Range	None
Show > Pan Speed	None
Show > Tilt Range	None
Show > Tilt Speed	None
Show > Rotate Range	None
Show > Sequence	None
Show > Preset Accuracy	None
Show > Camera Title	Displayed up to 85 characters
Show > Direction Indicator	None
Show > Day & Night	Auto(ICR)
Show > Backlight Compensation	BLC, WDR, SSDR
Show > Wide Dynamic Range	120dB
Show > Digital Noise Reduction	SSNR
Show > Digital Image Stabilization	None
Show > Defog	None
Show > Motion Detection	4ea, polygonal zones
Show > Privacy Masking	6ea, rectangular zones
Show > Gain Control	Low / Middle / High
Show > White Balance	ATW / AWC / Manual / Indoor / Outdoor
Show > LDC	Support
Show > Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Hide > Digital PTZ	None
Show > Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Hide > Hallway view	Support
Show > Analytics	Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Show > Business Intelligence	None
Hide > People Counting	None
Hide > Vehicle Counting	None
Hide > Queue Management	None
Hide > Heat Map	None
Show > Serial Interface	None
Show > Alarm I/O	Input 1ea / Output 1ea
Show > Alarm Triggers	Analytics, Network disconnect, Alarm input
Show > Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset)
Show > Audio Streaming	None
Show > Audio In	None
Hide > Built-in MIC	None
Show > Audio Out	None
Hide > Audio Line	None
Show > Light Type	IR LED (850nm)
Show > Light Viewable Length	20m(65.62ft)
Show > IR Viewable Length	None
Show > IR Illuminator (Optional)	None
Show > IR Radiation angle	None
Show > IR LED	None
Show > IR Wavelength	None
Show > IR Operation	None
Show > Water Removal	None
Show > Auto Tracking	None
Show > Coaxial Protocol	None
Show > Color Palettes	None
Show > Temperature Detect Range	None
Show > Temperature Accuracy	None
Show > Temperature Detection	None
Show > Additional	None
Show > Ethernet	RJ-45(10/100BASE-T)
Show > Video Compression	H.265/H.264: Main/High, MJPEG
Show > Audio Compression	None
Show > Smart Codec	WiseStreamⅡ
Hide > AI Codec	None
Hide > Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Quality level control
Show > Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Show > Streaming	Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Show > Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Show > SIP support (VoIP, Peer-to-peer, SIP/PBX integration)	None
Show > Security	None
Show > Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
> Security
Show > OS / Firmware Protect	Firmware encryption
Show > User authentication	Digest Authentication, Prevent brute-force attack
Show > Network authentication	802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Show > Secure Communication	HTTPS, SRTP, WSS(Websocket secure)
Show > Access Control	Access control based on IP address
Show > Data Protect	Authentication information encryption, ZIP compression encryption
Show > Audit	User Access/System/Event log management
Show > Device ID	Device Certificate(Hanwha Private Root CA)
Show > Secure Storage	SDcard partition encrypt
Show > Security Certificate	None
Show > Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Show > Web Viewer	None
Show > Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
Hide > Storage slot	SD 1slot
Show > Memory	512MB RAM, 256MB Flash
Show > Operating Temperature / Humidity	-30°C~+55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C
Show > Storage Temperature / Humidity	-30°C~+60°C(-22°F ~ +140°F) / 0~90% RH
Show > Certification	IP66, IK10
Hide > IK Rating	IK10
Show > Input Voltage	PoE(IEEE802.3af, Class3)
Show > Power Consumption	PoE: Max 7.50W, typical 6.10W
Show > Color / Material	Dark grey / Aluminum
Hide > Color	Dark grey
Hide > Material	Aluminum
Show > RAL Code	None
Show > Product Dimensions / Weight	ø70.0×246.0mm(ø4.33×3.39″), 680g(1.50 lb)
Show > Compatible Conduit hole / Gangbox	None
Show > Hanging Mount (Dome)	None
Hide > Skin Cover	None
Hide > Skin Cover (Dome)	None
Hide > Weather Cap (Dome)	None
Hide > Power Module	None
Show > Backbox	SBO-100B1
Show > Network	None
Show > EMC	None
Show > Safety	None
Show > Environment	None
Show > Video	None
Show > Detect (25PPM/ 8PPF)	40.0m(131.20ft)
Show > Observe (63PPM/ 19PPF)	16.0m(52.48ft)
Show > Recognize (125PPM/ 38PPF)	8.0m(26.24ft)
Show > Identify (250PPM/ 76PPF)	4.0m(13.12ft)
Show > Speed Description	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Lane Coverage	None
Show > Vehicle Recognition	None
Show > Available Countries	None
Show > Solution	None
Show > Speed Description	None
Show > Lane Coverage	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Vehicle Recognition	None
Show > Available Countries	None
