Description

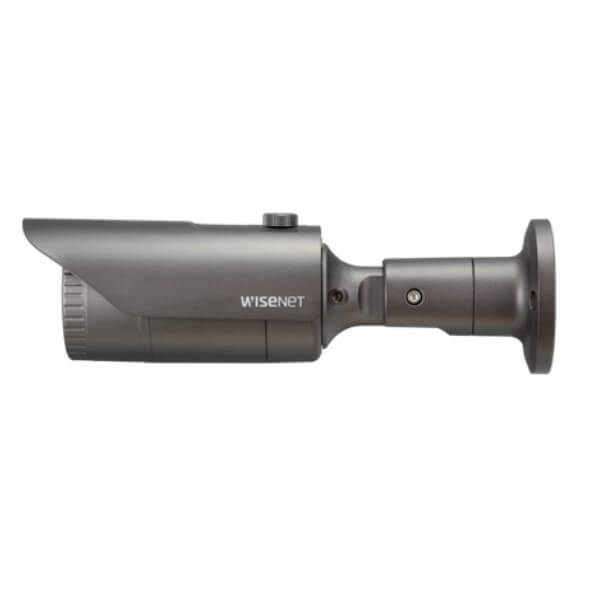

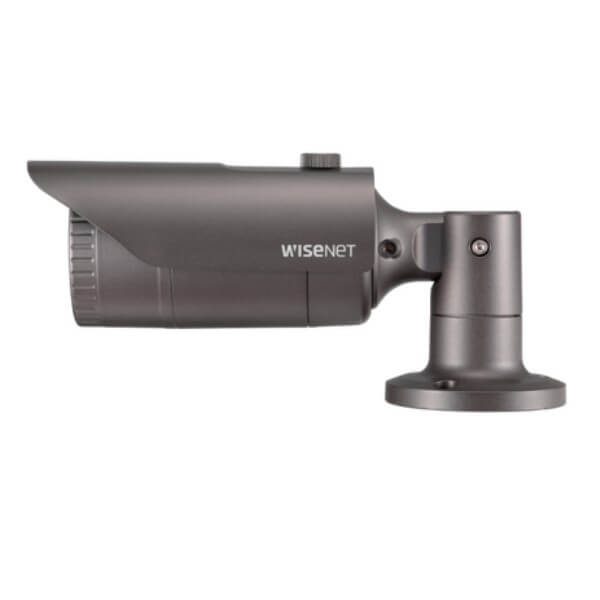

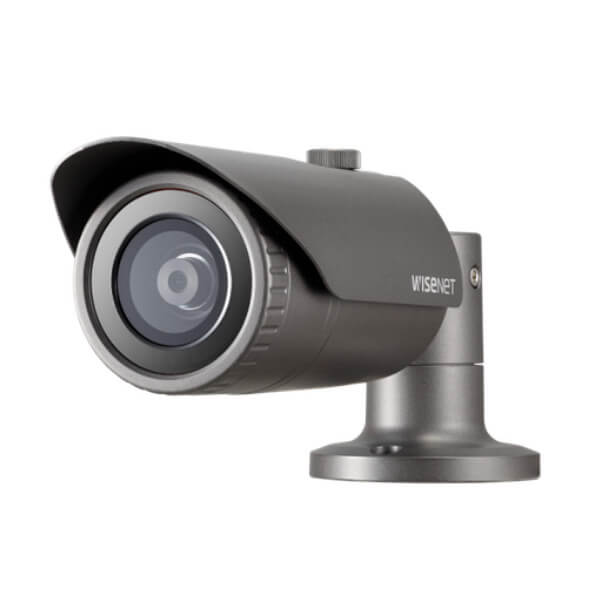

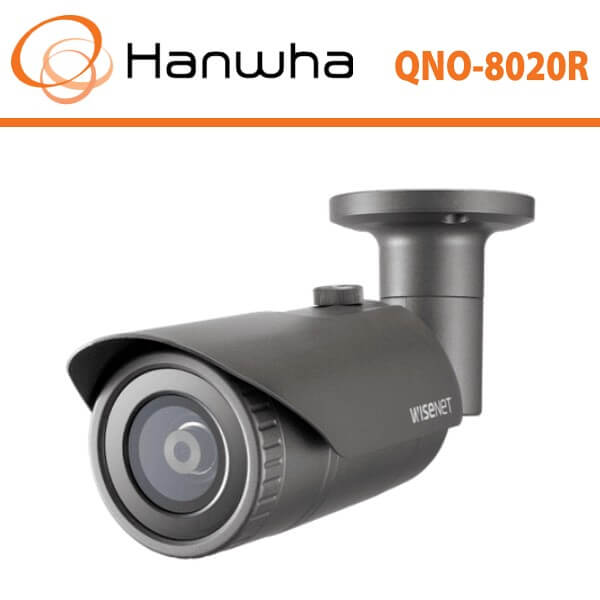

Hanwha QNO8020R IR Bullet Camera
The Hanwha QNO8020R IR Bullet Camera is a premium surveillance solution designed for security-conscious businesses and individuals. Engineered for reliability and top-tier performance, this camera delivers crystal-clear video quality, powerful night vision, and a durable build—all at a cost-effective price.
Key Features and Benefits
Ultra-Clear 5MP Resolution for Superior Surveillance
Equipped with a 5-megapixel sensor (2592×1944 pixels), the Hanwha QNO8020R captures highly detailed images, ensuring sharp video quality for identifying crucial details like faces, license plates, and movements. Compared to traditional HD cameras, this resolution provides enhanced clarity and precision, making it ideal for security-sensitive locations.
Optimized Field of View with a 4mm Fixed Lens
The 4mm lens offers an optimized viewing angle, striking the perfect balance between wide coverage and focused detail. This ensures comprehensive monitoring while minimizing blind spots, making it suitable for indoor and outdoor security applications.
Powerful Infrared Night Vision up to 25 Meters
With high-intensity infrared (IR) LEDs, the camera provides clear visibility in complete darkness up to 25 meters (82 feet). Its Intelligent IR technology prevents overexposure, ensuring well-balanced nighttime footage—crucial for round-the-clock surveillance.
Rugged, Weatherproof Design (IP66 Rated)
Designed to withstand harsh environments, the QNO8020R comes with an IP66-rated weatherproof housing, making it resistant to rain, dust, and extreme temperatures. Whether installed in parking lots, building exteriors, or warehouses, this camera delivers reliable performance in any weather condition.
120dB Wide Dynamic Range (WDR) for Enhanced Clarity
The built-in 120dB WDR technology ensures clear and balanced images even in high-contrast lighting conditions. Whether facing direct sunlight or shadows, the camera effectively adjusts brightness levels, eliminating glare and dark spots for consistent image quality.
Why Choose the Hanwha QNO8020R?
-
High-Resolution Video (5MP) for crisp, detailed footage
-
Advanced Night Vision (25m IR) for 24/7 surveillance
-
Rugged IP66 Housing for all-weather reliability
-
Optimized 4mm Lens for better coverage and reduced blind spots
-
120dB WDR for clear imaging in varied lighting conditions
Perfect for businesses, parking lots, warehouses, and home security, the Hanwha QNO8020R IR Bullet Camera delivers top-notch protection with unmatched video clarity.
Specifications:
| Imaging Device | 1/2.8″ 5MP CMOS |
| Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 79.8°/ V: 58.1°/ D: 105.9° |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | None |
| Audio Out | None |
| IR Viewable Length | 25m(82.02ft) |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | None |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7.50W, typical 6.10W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | None |
| Product dimensions / weight | Ø70.0×246.0mm(Ø4.33×3.39″), 680g(1.50 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | SBO-100B1 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 62.0m(203.39ft) |
| Observe (63PPM/ 19PPF) | 24.8m(81.36ft) |
| Recognize (125PPM/ 38PPF) | 12.4m(40.68ft) |
| Identify (250PPM/ 76PPF) | 6.2m(20.34ft) |
