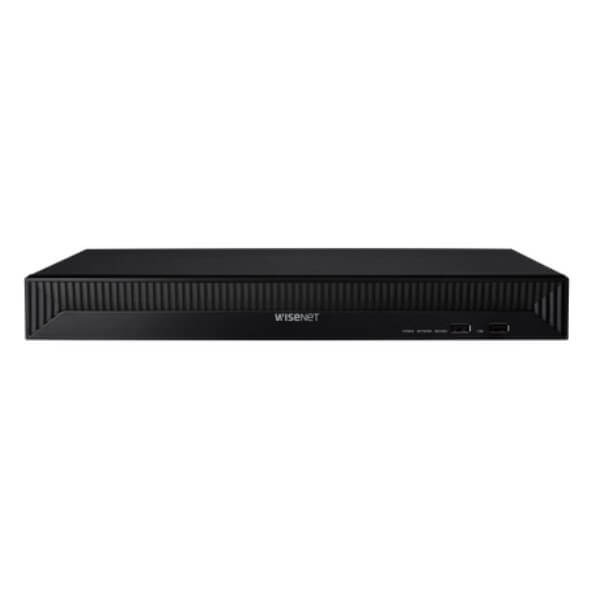

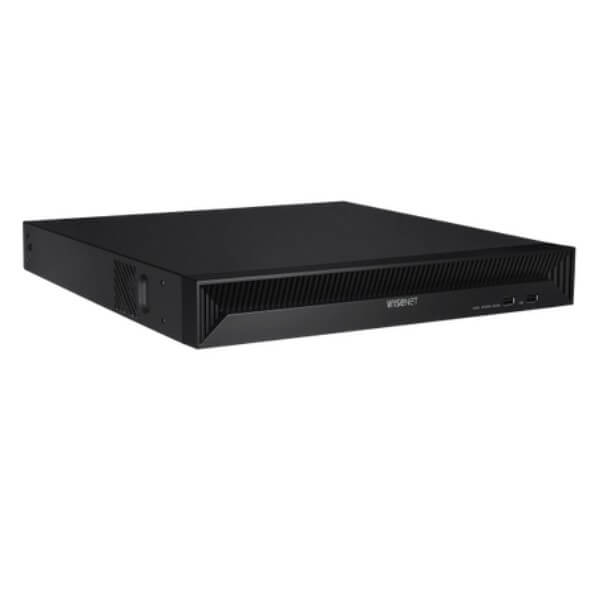

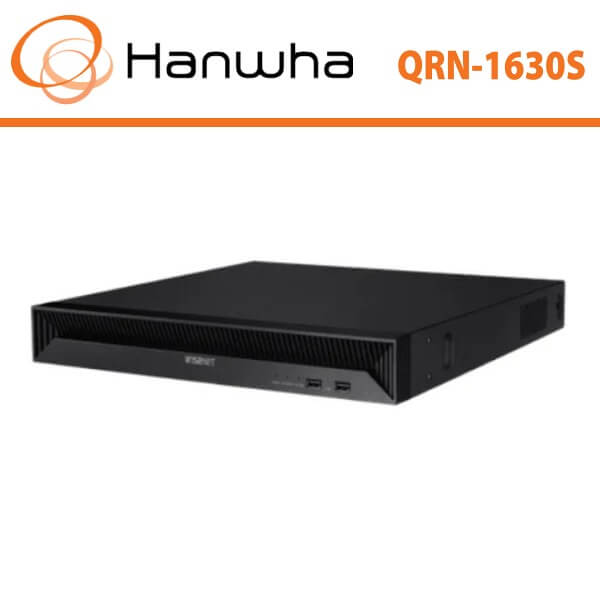

Hanwha QRN1630S CCTV Network Video Recorder
The Hanwha QRN1630S CCTV Network Video Recorder (previously branded under Samsung CCTV) offers a dependable and high-performance surveillance solution, supporting up to 16 channels. Built with cutting-edge technology, this NVR is designed to optimize video storage and security management, making it a perfect fit for a variety of security applications.
High-Quality Recording for Clear Surveillance
The Hanwha QRN1630S is engineered to handle up to 16 CCTV cameras, delivering exceptional high-resolution recording. This capability ensures crystal-clear footage, which is essential for effective monitoring and detailed incident analysis, ensuring no detail goes unnoticed.
Cutting-Edge H.265 Compression Technology
Equipped with the advanced H.265 video compression technology, the QRN1630S significantly reduces storage and bandwidth requirements. This efficiency allows for longer recording durations and better storage management without sacrificing the clarity or resolution of the video, offering a more efficient solution compared to traditional compression methods.
Versatile Display Options for Enhanced Monitoring
With both HDMI and VGA outputs, the Hanwha QRN1630S ensures seamless integration with a variety of display monitors, making it easy to view live feeds or review recorded footage. Additionally, the built-in Power over Ethernet (PoE) ports simplify installation by enabling both power and data transfer through a single cable, reducing installation time and costs.
Advanced Security Analytics for Proactive Protection
This NVR also comes with a range of advanced security analytics, including motion detection, video tampering alerts, and remote monitoring capabilities. Real-time notifications ensure that security personnel can react swiftly to any potential threats, increasing the overall effectiveness of the surveillance system.
Expansive Storage Capacity for Long-Term Surveillance
The Hanwha QRN1630S offers remarkable storage flexibility with support for up to 4 HDD slots, each accommodating up to 6TB. This vast storage capacity ensures that the system can handle continuous video recording over long periods, making it ideal for environments that demand uninterrupted surveillance storage.
Intuitive User Interface for Easy Operation
Designed for ease of use, the Hanwha QRN1630S features an intuitive interface that simplifies system management. Whether it’s live monitoring or playback, security operators will find it straightforward to navigate the system, ensuring efficient use of its advanced capabilities.
The Hanwha QRN1630S CCTV NVR is a versatile, high-performance surveillance solution that meets the demands of modern security systems with its advanced features, extensive storage options, and user-friendly design. It is an ideal choice for businesses and organizations seeking reliable and efficient video surveillance management.
SPECIFICATION
| Display | ||
| Network camera | ||
| Inputs | Max. 16CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI1: 3840×2160(30Hz), HDMI2: 1920×1080(60Hz) | |
| Multi Screen Display | Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 40CH(Local 16CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 2ea(Max. 20TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 128Mbps | |
| Audio | ||
| Input/Output | 16 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 200W(682 BTU with 2HDD, PoE ON) | |
| PoE Budget | 130W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch) | |
| Weight | 2.87Kg (6.33 lb) | |
