Description

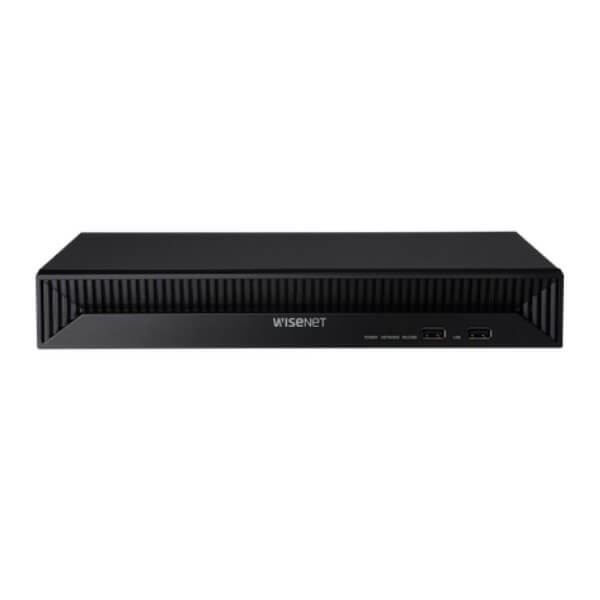

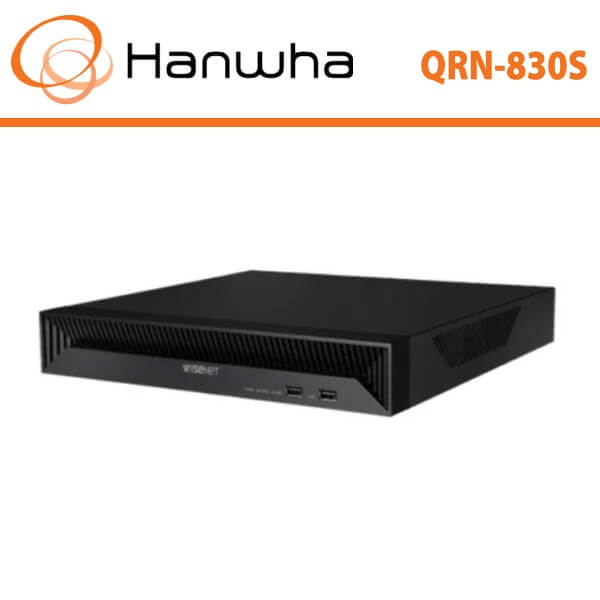

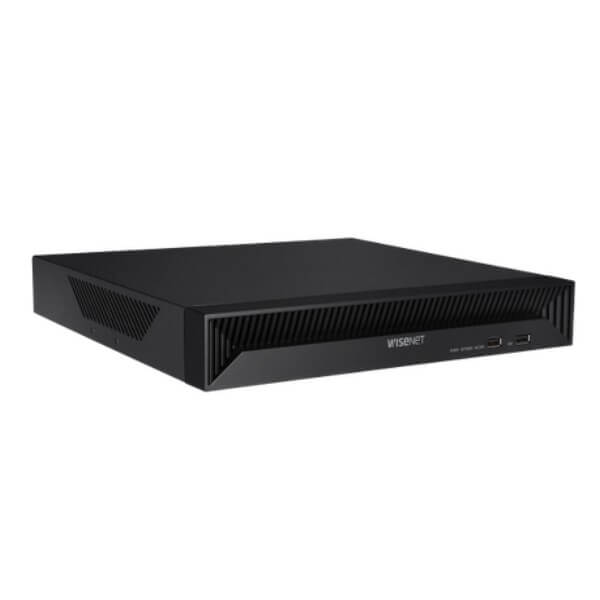

Hanwha QRN830S CCTV Network Video Recorder
The Hanwha QRN830S CCTV Network Video Recorder, formerly known as Samsung CCTV, is expertly designed to provide reliable and efficient surveillance recording solutions for small to medium-sized security setups. Offering seamless integration and user-friendly features, the QRN830S is an ideal choice for businesses and residential security systems that demand dependable and straightforward video management.
Superior High-Resolution Recording
Supporting resolutions up to 8MP, the QRN830S ensures crystal-clear video quality, providing vital detail for precise identification and effective incident handling. This high-definition recording capability is crucial for surveillance applications where clarity is essential, making it a top choice for environments that require meticulous attention to every visual detail.
Cutting-Edge Video Compression Technology
The Hanwha QRN830S leverages advanced H.265 video compression technology to maximize storage efficiency while minimizing bandwidth use, all without compromising video quality. This innovative compression technique extends recording time and enhances the system’s overall efficiency, making it ideal for continuous surveillance and long-term storage solutions.
Simplified Installation with PoE Support
Equipped with Power over Ethernet (PoE) ports, the QRN830S simplifies installation by combining both power and network connectivity into a single Ethernet cable. This feature reduces installation costs and minimizes cable clutter, ensuring a fast and hassle-free setup process while maintaining a neat and efficient workspace.
Enhanced Security Analytics for Real-Time Threat Detection
The QRN830S comes with a suite of advanced security analytics, including motion detection, tamper alerts, and remote monitoring capabilities. These intelligent features empower operators to detect potential threats in real-time, significantly improving response times and bolstering the overall effectiveness of the security system.
Versatile Display Options for Easy Monitoring
With both HDMI and VGA video output options, the Hanwha QRN830S ensures compatibility with various monitors, providing flexibility and ease of use for surveillance management. Operators can easily manage live views, playback, and system settings, optimizing the accessibility and operational efficiency of the security setup.
By combining high-quality video recording, advanced analytics, and a streamlined installation process, the Hanwha QRN830S is an excellent choice for those seeking a reliable and straightforward CCTV network video recorder for small to medium-scale surveillance systems.
Key Specifications:
- 8-channel recording capability
- Supports camera resolutions up to 8MP (4K)
- H.265/H.264 compression
- HDMI/VGA video outputs
- Built-in PoE ports for easy installation
- Advanced analytics (motion detection, tampering)
- Supports up to 2 HDD slots (6TB each)
- User-friendly remote management interface
Specifications
| Display | ||
| Network camera | ||
| Inputs | Max. 8CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI :3840×2160(30Hz) | |
| Multi Screen Display | [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(240fps), D1(240fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | ||
| GUI | 8 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA | |
| Ethernet | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | DC Adaptor | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.55A | |
| Power Consumption | Max 84W (287 BTU with 1HDD, PoE ON) | |
| PoE Budget | 65W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300 x 47.6 x 238.9 mm (11.8 x 1.9 x 9.4 inch) | |
| Weight | 1.32Kg (2.91 lb) | |
